heat insulation material for MBI metal building roof and wall glass wool insulation R value fiberglass cotton with aluminum foil
FOB Reference Price:
Get Latest Price
≥1 Square meters
US $0.65
≥10000 Square meters
US $0.56
≥30000 Square meters
US $0.45
≥60000 Square meters
US $0.29
Free Inquiry
Customized Request
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Traditional
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
UNTED INSULATION
-
Model Number:
-
UI MBI 12 50 120
-
Type:
-
glass wool insulation
-
Material:
-
fiberglass wool, Glass Wool
-
Color:
-
Yellow
-
Density:
-
12kg/m3
-
Thickness:
-
50mm
-
Width:
-
1200mm
-
Length:
-
10m-30m
-
Thermal Conductivity:
-
0.038 W/m.K
-
Facing:
-
FSK, aluminum foil.
-
Grade of combustibility:
-
Class O/class A1
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Office Building
-
Design Style:
-
Traditional
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
UNTED INSULATION
-
Model Number:
-
UI MBI 12 50 120
-
Type:
-
glass wool insulation
-
Material:
-
fiberglass wool, Glass Wool
-
Color:
-
Yellow
-
Density:
-
12kg/m3
-
Thickness:
-
50mm
-
Width:
-
1200mm
-
Length:
-
10m-30m
-
Thermal Conductivity:
-
0.038 W/m.K
-
Facing:
-
FSK, aluminum foil.
-
Grade of combustibility:
-
Class O/class A1
PRODUCT INFORMATION

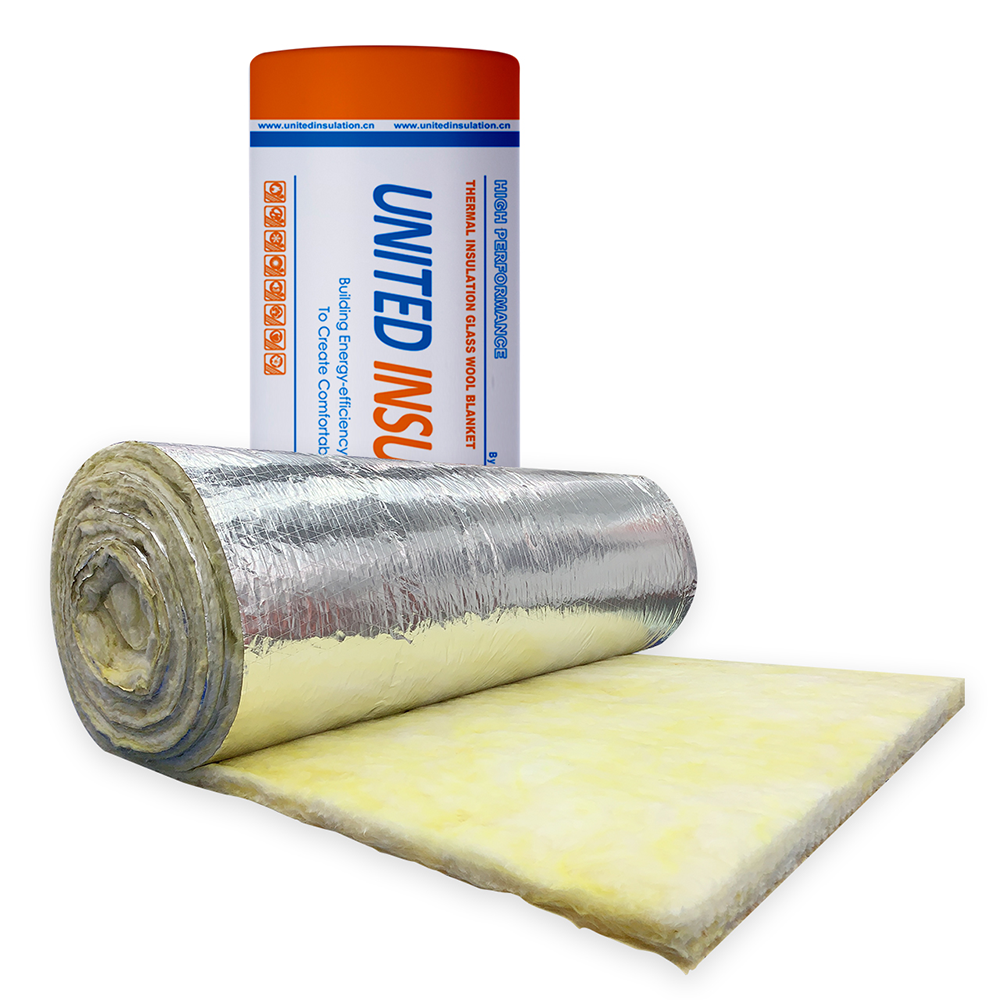

United Insulation HVAC glass wool duct wrap is a lightweight, highly resilient, blanket-type, thermal and acoustical insulation made from glass fibers bonded with a thermosetting phenolic resin.
Our duct wrap solutions offer a wide range of benefits to fit your requirements and needs. Helps air duct system maintain a consistent air temperature, reduces condensation and absorbs draft and system operation noise for improved duct system efficiency.
Flexible Blanket
AVAILABLE SIZE
| Product Code |
Density
(kg/m³) |
Thickness
(mm) |
Width
(mm) |
Conductivty
(W/m·K) |
Packing
(pcs/PKG) |
PKG/40'HQ
(No#) |
|
| UET HVWB 2425 | 24 | 25 | 1200 | 0.037 | 1 |
Loading Qty,
Please consult |
|
| UET HVWB 2430 | 24 | 30 | 1200 | 0.037 | 1 | ||
| UET HVWB 2440 | 24 | 40 | 1200 | 0.037 | 1 | ||
| UET HVWB 2450 | 24 | 50 | 1200 | 0.037 | 1 | ||
| UET HVWB 3225 | 32 | 25 | 1200 | 0.036 | 1 | ||
| UET HVWB 3230 | 32 | 30 | 1200 | 0.036 | 1 | ||
| UET HVWB 3240 | 32 | 40 | 1200 | 0.036 | 1 | ||
| UET HVWB 3250 | 32 | 50 | 1200 | 0.036 | 1 | ||
| UET HVWB 4825 | 48 | 25 | 1200 | 0.035 | 1 | ||
| UET HVWB 4830 | 48 | 30 | 1200 | 0.035 | 1 | ||
| UET HVWB 4840 | 48 | 40 | 1200 | 0.035 | 1 | ||
| UET HVWB 4850 | 48 | 50 | 1200 | 0.035 | 1 |
Conductivity Value tested under temperature in 23°C
Consult your local sales representative for other available sizes and specification.
PHYSICAL PROPERTIES OF UET HVWB 2450
| Tested Content | Tested Method | Tested Value | |
| Density | ASTM C612 | 24kgs/m³ | |
| Thickness | GB/T 13350-2008 | 50mm | |
| Average diameter of fibers | GB/T 13350-2008 | 6.5μm | |
| Coefficient of Heat Conductivity | EN12667 | 0.037W/m·K | |
| Thermal Resistance | ASTM C653 | 1.35m²·K/W | |
| Average NRC | EN ISO 354 | 0.95 | |
| Maximum Service Temperature | ASTM C411 | 170°C | |
| Corrosion Resistance | ASTM C665 | NO Chemical Reaction | |
| Mold Resistance | ASTM C665 | Mildew proof | |
| Moisture Absorption | ASTM C1104 | Less 3% by weight | |
| Humidity veneration Rate | ASTM E96 | Max 0.013g/24Hours·m² | |
| Non-Combustibility | ASTM E84 | Flame Propagation: 25; Flame Diffustivity: 50 |
SOUND ABSORPTION
| Thickness(mm) | 125 Hz | 250 Hz | 500 Hz | 1000 Hz | 2000 Hz | 4000 Hz | NRC | |
| 25 | 0.08 | 0.31 | 0.64 | 0.84 | 0.97 | 1.03 | 0.70 | |
| 40 | 0.10 | 0.47 | 0.85 | 1.01 | 1.02 | 0.10 | 0.85 | |
| 50 | 0.25 | 0.66 | 1.00 | 1.02 | 1.02 | 1.01 | 0.95 | |
| 75 | 0.47 | 0.96 | 1.17 | 1.10 | 1.02 | 1.05 | 1.05 |
AVAILABLE FACINGS
FSK, Vinyl, Foil, WMP, and Kraft Facing is available accordingly to project design.
PACKAGING
Glass wool panel is packed by pallet, wrapped by a stretch film. It's easy to load and un-load with forklift to save labor cost and save storage space.
STORAGE AND TRANSPORT
Store insulation indoors. Store product under cover and in dry conditions. Handle with care, Products will be damaged if subject to sharp or heavy impact.
QUALITY MANAGEMENT AND SPECIFICATION COMPLIANCE
ISO 9001: 2008, ISO 14001:2004
GB/T17795-2008, EN ISO 354, EN12667, ASTM C653, ASTM C665
With CE Certificate according to standard EN 13162:2008
GB/T17795-2008, EN ISO 354, EN12667, ASTM C653, ASTM C665
With CE Certificate according to standard EN 13162:2008
FIRE PERFORMANCE
Classified as Euroclass A1 to STN EN 13501-1: 2007, and GB/T5464-2010, GB/T14402-2007
FEATURES AND BENEFITS
• Improve the energy efficiency of the building
• Reduce transmission of exterior sound to the interior of the building
• Absorb reverberating sounds within the building
• Provide thermal efficiency
• Keep the building warmer in winter and cooler in summer
• Reduce transmission of exterior sound to the interior of the building
• Absorb reverberating sounds within the building
• Provide thermal efficiency
• Keep the building warmer in winter and cooler in summer
| Keep Cool | Keep Warm | Fire Proof | Moisture Proof | Noise Control | Sustainbility | Save Cost | Health Safe |
APPLICATIONS
Wraps around new or existing ductwork
NOTICE
Safety first. Follow good safety/industrial hygiene practices during insulation. Wear appropriate personal protective equipment. Read SDS and literature before specification and insulation.
STANDARD & CERTIFICATE APPROVED PRODUCT
