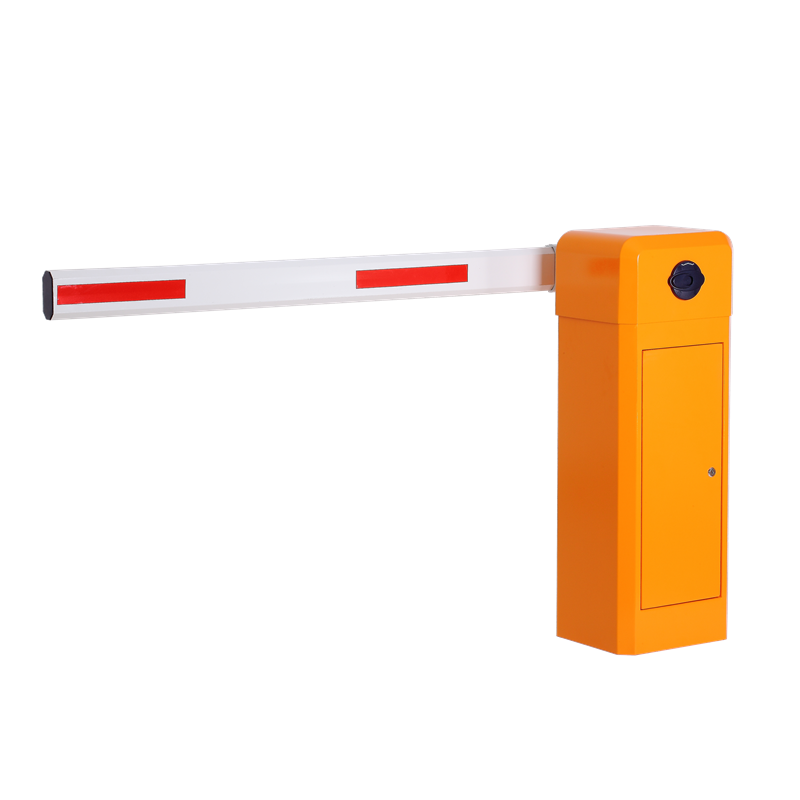

Quick Details
-
Certificate:
-
CE ISO
-
OEM/ODM:
-
Support
-
Max Boom Length:
-
6 meters
-
Arm Type:
-
Straight Arm, Folding Arm, Fence Arm, Max 6m
-
Speed:
-
1.8s, 3s, 6s
-
Size:
-
320*280*935 mm
-
Rating Voltage:
-
AC 220/110V±10%, 50/60Hz
-
Color:
-
White, Blue, Yellow, Red, Orange, Grey, Customized
-
Application:
-
Highway, Parking Lot, Hotel, Community, Factory
-
Gross Weight:
-
50KGS
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WONSUN
-
Model Number:
-
DZ-115
-
Certificate:
-
CE ISO
-
OEM/ODM:
-
Support
-
Max Boom Length:
-
6 meters
-
Arm Type:
-
Straight Arm, Folding Arm, Fence Arm, Max 6m
-
Speed:
-
1.8s, 3s, 6s
-
Size:
-
320*280*935 mm
-
Rating Voltage:
-
AC 220/110V±10%, 50/60Hz
-
Color:
-
White, Blue, Yellow, Red, Orange, Grey, Customized
-
Application:
-
Highway, Parking Lot, Hotel, Community, Factory
-
Gross Weight:
-
50KGS
Product description
| PARTICULARS | DESCRIPTION |
| Application | Outdoor |
| Drive | Block continues torque motor |
| Version | Left handed or Right Handed |
| Logic Control | Included |
| Intelligence | The use of block able torque motor drive with continue torque output and the microprocessor based controller eliminates the need of friction clutches to continue maintenance free operation. |
| Power Supply | 2 2 0/1 1 0 + /- 1 0 % V A C , 5 0 /60 H z |
| Colour | Different & Distinct colour pattern as decided by owner. |
| Boom Specification | Length (3, 4, 5, 6 Mtrs) straight or articulated extruded aluminum alloy. |
| Housing Dimension | W330mm, D300mm, H950mm |
| Protection | All housing and internal parts will be rust & corrosion free metals or alloys of high strength. |
| Opening & closing time | 1.5s-6sec adjustable |
| Power off | turning the motor wheel |
| Safety | Loop detectors /infrared sensors to be used to prevent barriers from closing on the vehicle. |
| Duty cycle | 100% |
| Integration | Capable of integration with all the surveillance and access control systems. |
| MTBF | 5 million cycle |
| Certification | CE Confirm |
| Material of construction | Carbon Steel with power coated finish and the housing top cover is made out of high impact engg. Plastic with customizable SS Sheet. |
| Operating temperature |
- 25 ºC to + 7 5 ºC |
Specification:
2. The fence-type motor adopts die-casting aluminum alloy, which is highly sealed and easy to dissipate heat
3. The motor cooling fan avoids the possibility of overheating
4. The barrier gate automatically reverses when encountering an obstacle
5. Realize automatic closing through the control panel menu setting
6. Barrier gates are used in conjunction with infrared photocells, loop detectors, card readers, ticket vending machines, manual switches (wire control), and traffic lights
7. RS485 communication module
8. Manual release device, operate the barrier gate when the power is off
9. Support external and internal vehicle loop detector (optional)
Motor Speed and Boom Type:
| Boom type | Boom Length(m) | Opening time(S) | Height between boom and ground(M) |
| Straight boom | 6m ≥L >5m | 6S | H=0.83M |
| 5m ≥L>4.5m | 6S | ||
| 4.5m ≥L ≥3m | 6S | ||
|
Folding boom 90 degree |
5m ≥L | 6S | |
|
Folding boom 180 degree |
5m ≥L | 6S | |
|
Fence Boom Two-level |
5m ≥L ≥4m | 6S | H=0.9M |
| 4m≥L≥3m | 6S | ||
|
Fence boom Three-Level |
5m ≥L ≥4m | 6S | H=1.5M |
| 4m≥L≥3m | 6S |
1.Are you the manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen since 2007.
2.What is your MOQ?
For OED order,at least 30 sets.
3.What is your delivery time?
As for usual order,it is 3-5 days after received your payment with 50 sets order quanlity.
For OED order,it is 7-15 days after received your payment with 30 sets order quality.
4.Are threre any problems of your barrier gate?
As for now, don't receive any complaint of quality problems from our customer.
5.What is thr terms of payment?
30%-40% advance deposite,60%-70% balance beforefor shipment for large quantity.
6.What is your Warranty?
Our Warranty is 1 year.
