- Product Details
- {{item.text}}
Quick Details
-
Blade Length (mm):
-
3200 mm
-
Backgauge Travel (mm):
-
20 - 500 mm
-
Throat Depth (mm):
-
500 mm
-
Brand Name:
-
SGSK
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
5400 KG
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
220V 380v 415v
-
Dimension(L*W*H):
-
3900x2100x1960
-
Warranty of core components:
-
13 months
-
Product name:
-

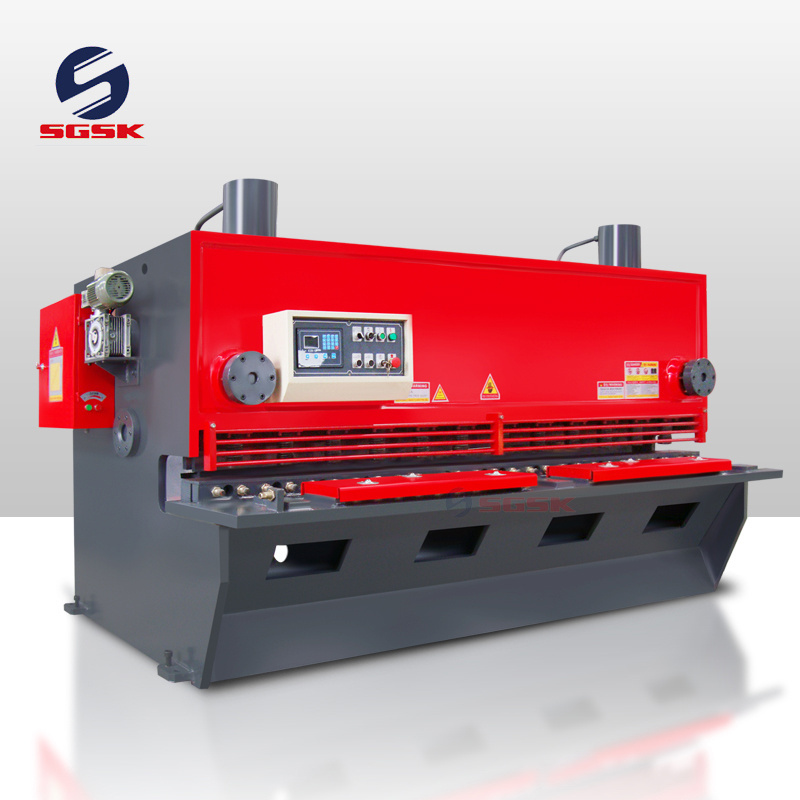

Hydraulic guillotine metal shear machine guillotine shears
-
Max.shearing thickness:
-
6mm
-
Max.shearing width:
-
3200mm
-
Shearing angle:
-
0.5-1°50'
-
No.of stroke(per minute):
-
16
-
Back gauge:
-
20-500mm
-
Usage:
-
Shearing Metal Sheet
-
Motor power:
-
7.5w
-
Keyword:
-
Hydrualic Shearing Machine
-
Certification:
-
CE ISO
Quick Details
-
Max. Cutting Width (mm):
-
3200
-
Max. Cutting Thickness (mm):
-
6 mm
-
Shearing Angle:
-
0.5-1°50'
-
Blade Length (mm):
-
3200 mm
-
Backgauge Travel (mm):
-
20 - 500 mm
-
Throat Depth (mm):
-
500 mm
-
Brand Name:
-
SGSK
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
5400 KG
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
220V 380v 415v
-
Dimension(L*W*H):
-
3900x2100x1960
-
Warranty of core components:
-
13 months
-
Product name:
-
Hydraulic guillotine metal shear machine guillotine shears
-
Max.shearing thickness:
-
6mm
-
Max.shearing width:
-
3200mm
-
Shearing angle:
-
0.5-1°50'
-
No.of stroke(per minute):
-
16
-
Back gauge:
-
20-500mm
-
Usage:
-
Shearing Metal Sheet
-
Motor power:
-
7.5w
-
Keyword:
-
Hydrualic Shearing Machine
-
Certification:
-
CE ISO
Products Description
Details Images
Product Paramenters
Application:
Hydraulic shearing machine is the sheet metal industry under the cutting tool, Widely used in industrial machinery, metallurgical industry, automobile, shipbuilding, electrical appliances, engineering equipment, sheet metal processing, steel pipe welding, electronic industry, aerospace industry, agricultural machinery manufacturing, dining furniture machinery industry.
Product main technical specifications:
|
Specification
|
Unit
|
QC11Y 6X3200
|
|
Max.shearing thickness
|
mm
|
6
|
|
Max.shearing width
|
mm
|
3200
|
|
Shearing angle
|
°
|
0.5-1°50'
|
|
Material hardness
|
KN/cm
|
450
|
|
Distance between columns
|
mm
|
3300
|
|
Travel times
|
Times/min
|
16
|
|
blade length
|
mm
|
3300
|
|
Main motor power
|
kw
|
7.5
|
|
Back gauge stroke
|
mm
|
20-500
|
|
gear pump
|
|
NB4-G25
|
|
Wall thickness
|
mm
|
30
|
|
Over dimensions
|
mm
|
4100X1700X1680
|
|
Machine weight
|
T
|
5.4
|
|
Machine width
|
mm
|
2100
|
|
Machine height
|
mm
|
1960
|
|
Machine weight
|
Kg
|
9800
|
