Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Shineco
-
Model Number:
-
SNK-636X
-
Input:
-
DVB-C/S2/T2 tuner option
-
Application:
-
Digital IPTV Headend
-
Local interface:
-
LCD + control buttons
-
Output:
-
IP UDP/RTP protocol, unicast and Multicast
-
output channel:
-
support 48 SPTS out
-
Warrantly:
-
5 years
-
Model:
-
DVB S2 digital satellite tv receiver
-
Transmission Bit-rate:
-
Maximum total bit-rate is 800Mbps
-
IP out protocol:
-
UDP
-
Output interface:
-
4 ASI and 4 IP
Quick Details
-
FTA(Free To Air):
-
Yes
-
Type:
-
Digital
-
High Definition:
-
NO
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Shineco
-
Model Number:
-
SNK-636X
-
Input:
-
DVB-C/S2/T2 tuner option
-
Application:
-
Digital IPTV Headend
-
Local interface:
-
LCD + control buttons
-
Output:
-
IP UDP/RTP protocol, unicast and Multicast
-
output channel:
-
support 48 SPTS out
-
Warrantly:
-
5 years
-
Model:
-
DVB S2 digital satellite tv receiver
-
Transmission Bit-rate:
-
Maximum total bit-rate is 800Mbps
-
IP out protocol:
-
UDP
-
Output interface:
-
4 ASI and 4 IP
Professional FTA DVB-S2 Satellite TV Receiver
--- Latest Price please add skype: nancydvb
Outline
Shineco Satellite receiver is new design which integrates demodulation (DVB-C, S/S2 optional), de-scrambler and multiplexing in one case to convert RF signals into TS output.
It is a 1-U case which supports 4 tuner inputs, 1 ASI and IP. The 4 CAMs/CIs accompanied can descramble the programs
input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables,
or additional remote control device.
To meet customers’ various requirements, SNK-636X is also designed to re-mux programs from any input, and output TS over 48 SPTS UDP.
Key features
* 4 Tuner inputs (DVB-C, S/S2 Optional)
* 1 ASI & 4 IP (UDP) input for re-mux
* One CAM can decrypt multiple programs from Tuners/ASI/IP
* IP (48 SPTS) over UDP and RTP/RTSP output;
* 4 groups of independent ASI out for tuner/IP passthrough (one-to-one)
* Support maximum 128 PID mapping per input
* LCD display, Remote control and Firmware, web NMS management
* Updates via web
* Best quality and breakthrough price
Specification
Input
|
4x RF (DVB-C, S/S2 optional), F type |
|
1×ASI input for re-mux, BNC interface |
|
4xIP input for re-mux (UDP) |
Tuner Section
|
DVB-C |
|
|
Standard |
J.83A(DVB-C), J.83B, J.83C |
|
Input Frequency |
47 MHz~860 MHz |
|
Constellation |
16/32/64/128/256 QAM |
DVB-S
|
Input Frequency |
950-2150MHz |
|
|
Symbol rate |
2-45Msps |
|
|
Signal Strength |
- 65- -25dBm |
|
|
Constellation |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
|
|
DVB-S2 |
||
|
Input Frequency |
950-2150MHz |
|
|
Symbol rate |
QPSK 1~45Mbauds; 8PSK 2~30Mbauds |
|
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|
|
Constellation |
QPSK, 8PSK |
|
Output
|
IP |
48*SPTS over UDP, RTP/RTSP. 1000M Base-T Ethernet interface (unicast/multicast) 4*MPTS over UDP, RTP/RTSP. 1000M Base-T Ethernet interface, for RF in passthrough (one-to-one) |
|
ASI |
4 groups BNC interface, for RF or IP in passthrough (one-to-one) |
System
|
Local interface |
LCD + control buttons |
|
Remote management |
Web NMS Management |
|
Language |
English |
General
|
Power supply |
AC 100V~240V |
|
Dimensions |
482*400*44.5mm |
|
Weight |
3 kgs |
|
Operation temperature |
0~45℃ |
Principle chart

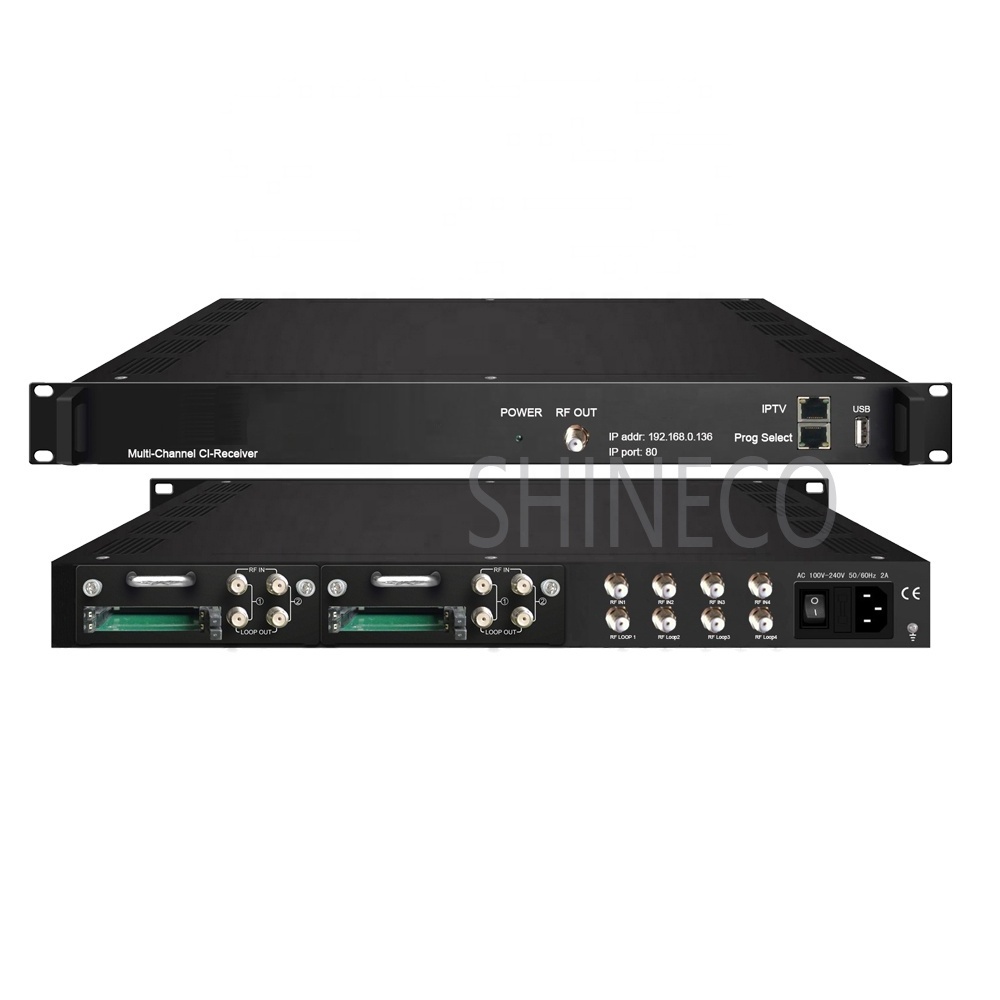

Front and Rear Panel of DVB-S2 satellite receiver
Besides this model,we also have 4 in 1 DVB-S2/T2/C IRD with mux function, 4 in 1 DVB-S2/T2/C IRD with 48 SPTS out, 2 in 1 DVB-S2 HD IRD, HD IRD with BISS function model for you choose, if you need the details,welcome to add skype:nancydvb.
How to operation the satellite receiver and managment page?
This satellite receiver is by web managment:
Connect the PC and the device with net cable, and use ping command to confirm
they are on the same network segment.
