Quick Details
-
Worktable Length:
-
4200 mm
-
Worktable Width:
-
980 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Vico
-
Model Number:
-
VF7000
-
Warranty:
-
3 Years
-
Product name:
-
car bench
-
Using range:
-
4S Station/garage Store/according
-
Post Working Range:
-
360degree
-
Chain Size:
-
OD 12mm
-
Input voltage:
-
220/380/415/440V
-
Pulling power:
-
95KN
-
Payment:
-
50% Deposit
-
Tower QTY:
-
one set
-
Power system by:
-
Electric and foot pump
-
Measuring system:
-
Optional 3D measuring system or 2D measuring system
Quick Details
-
Weight:
-
1700 kgs
-
Bench Height:
-
252-1620 mm
-
Max. Lifting Capacity:
-
3200 kgs
-
Worktable Length:
-
4200 mm
-
Worktable Width:
-
980 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Vico
-
Model Number:
-
VF7000
-
Warranty:
-
3 Years
-
Product name:
-
car bench
-
Using range:
-
4S Station/garage Store/according
-
Post Working Range:
-
360degree
-
Chain Size:
-
OD 12mm
-
Input voltage:
-
220/380/415/440V
-
Pulling power:
-
95KN
-
Payment:
-
50% Deposit
-
Tower QTY:
-
one set
-
Power system by:
-
Electric and foot pump
-
Measuring system:
-
Optional 3D measuring system or 2D measuring system

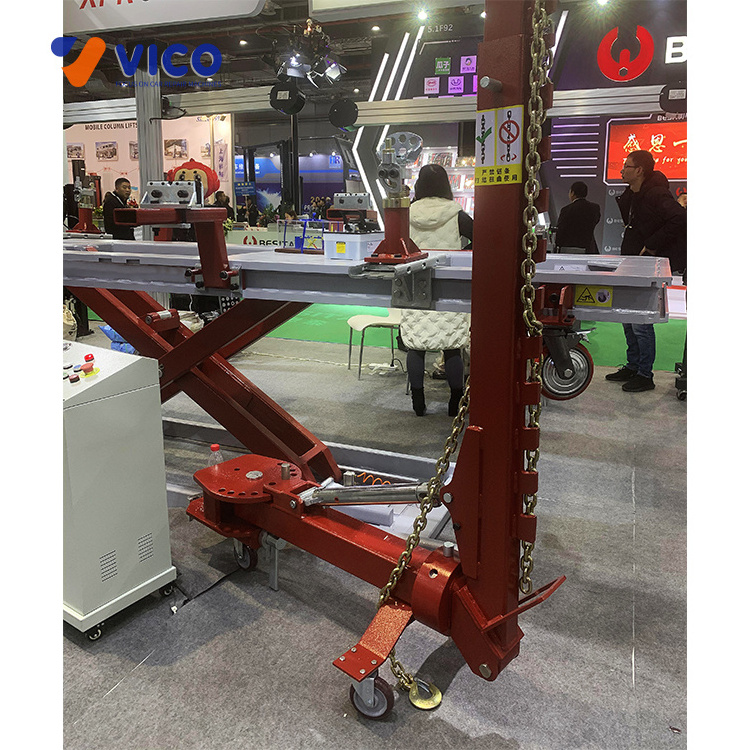

Vico Collision repair system Collision car straightening machine VF7000 Auto frame straightening machine
Body shop chassis straightening system
Movable car frame bench for body shops
1. European working frame machine, welded with cold high alloy rectangular tubes, full plate and high intensity. Controlled by
electronic hydraulic pump
, the lifting frame is operated conveniently and quickly.
2. The vertical lifting frame can be used as a scissor lift, orientated safely at height from 252 mm to 1620 mm.
3. Frame basement can be put up, four wheels can be movable . After fixing vehicle to frame, move them together to specified position, which can make up insufficient space and unfixing.
4. Slops with patient for driving vehicle on quickly and conveniently are widely used for holding wheels, which helps clamp vehicle needed to repair.
5. The flexible moving pulling tower can be fixed firmly and stretched at varied direction. Imported hydraulic system has strong power and long life.
6. Forged, modulated and heated by frequency, the metal sheets has high intensity and long life, any deformation correction is considered.
7. Main clamps are forged and heat-treated, high strength and long life, fix the auto quickly and accurately, also the extension height and angle can be adjustable. Scientific design, firm fixing and quick operation improve working efficiency greatly.
2. The vertical lifting frame can be used as a scissor lift, orientated safely at height from 252 mm to 1620 mm.
3. Frame basement can be put up, four wheels can be movable . After fixing vehicle to frame, move them together to specified position, which can make up insufficient space and unfixing.
4. Slops with patient for driving vehicle on quickly and conveniently are widely used for holding wheels, which helps clamp vehicle needed to repair.
5. The flexible moving pulling tower can be fixed firmly and stretched at varied direction. Imported hydraulic system has strong power and long life.
6. Forged, modulated and heated by frequency, the metal sheets has high intensity and long life, any deformation correction is considered.
7. Main clamps are forged and heat-treated, high strength and long life, fix the auto quickly and accurately, also the extension height and angle can be adjustable. Scientific design, firm fixing and quick operation improve working efficiency greatly.
|
Product name
|
Collision repair system Collision car straightening machine VF7000
|
|
Platform Length
|
4200mm
|
|
Platform width
|
980mm
|
|
Platform height
|
252mm~1620mm
|
|
Post Max. tension
|
95KN
|
|
Pneumatic pressure range
|
0.8Mpa
|
|
Post working range
|
360° full around
|
|
Cylinder capacity
|
10T
|
|
Maximum lift capacity
|
3200kgs
|
|
Voltage
|
3Ph/380v/415v/220v
|
|
Weight
|
1700kgs
|
|
Packing size
|
4250x1000x300mm+495x565x1020mm+2155x670x1100mm+2040x650x550mm/4cbm
|
