- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
zhejiang
-
Brand Name:
-
EPEVER
-
Model Number:
-
EPEVER UP5000-HM8042
-
Input Voltage:
-
176VAC~264VAC (Default)
-
Output Voltage:
-
220VAC/230VAC
-
Output Current:
-
22A
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
642*381*149mm
-
Certificate:
-
CE, CE ROHS
-
Warranty:
-
2 years
-
Weight:
-
19kg
-
Battery type:
-
Lead Acid \ Gel\AGM
-
Battery type2:
-
Lithium-ion
-
Rated power:
-
5000VA/3000VA/1000VA
-
Inverter type:
-
Off-grid Power Inverter
-
MPPT Efficiency:
-
93%
-
Waveform:
-
Purer Sine Wave
-
Communication:
-
RS485/WiFi (optional)
-
Frequency:
-
High Frequency 50/60Hz
-
AC connection:
-
Singlephase
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/DC Converters, DC/AC Inverters
-
Inverter Efficiency:
-
93%
-
Place of Origin:
-
zhejiang
-
Brand Name:
-
EPEVER
-
Model Number:
-
EPEVER UP5000-HM8042
-
Input Voltage:
-
176VAC~264VAC (Default)
-
Output Voltage:
-
220VAC/230VAC
-
Output Current:
-
22A
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
642*381*149mm
-
Certificate:
-
CE, CE ROHS
-
Warranty:
-
2 years
-
Weight:
-
19kg
-
Battery type:
-
Lead Acid \ Gel\AGM
-
Battery type2:
-
Lithium-ion
-
Rated power:
-
5000VA/3000VA/1000VA
-
Inverter type:
-
Off-grid Power Inverter
-
MPPT Efficiency:
-
93%
-
Waveform:
-
Purer Sine Wave
-
Communication:
-
RS485/WiFi (optional)
-
Frequency:
-
High Frequency 50/60Hz
-
AC connection:
-
Singlephase
Specification
|
item
|
value
|
|
Place of Origin
|
zhejiang
|
|
Brand Name
|
EPEVER
|
|
Model Number
|
EPEVER UP5000-HM8042
|
|
Input Voltage
|
176VAC~264VAC (Default);90VAC~280VAC (Programmable)
|
|
Output Voltage
|
220VAC(-6%~+3%);230VAC(-10%~+3%)
|
|
Output Current
|
22A
|
|
Output Frequency
|
50Hz/60Hz
|
|
Output Type
|
Single
|
|
Size
|
642*381*149mm
|
|
Type
|
DC/DC Converters, DC/AC Inverters
|
|
Inverter Efficiency
|
93%
|
|
Certificate
|
CE
|
|
Warranty
|
2 years
|
|
Weight
|
19kg
|
|
Battery type
|
Lead Acid \ Lithium \ Gel
|

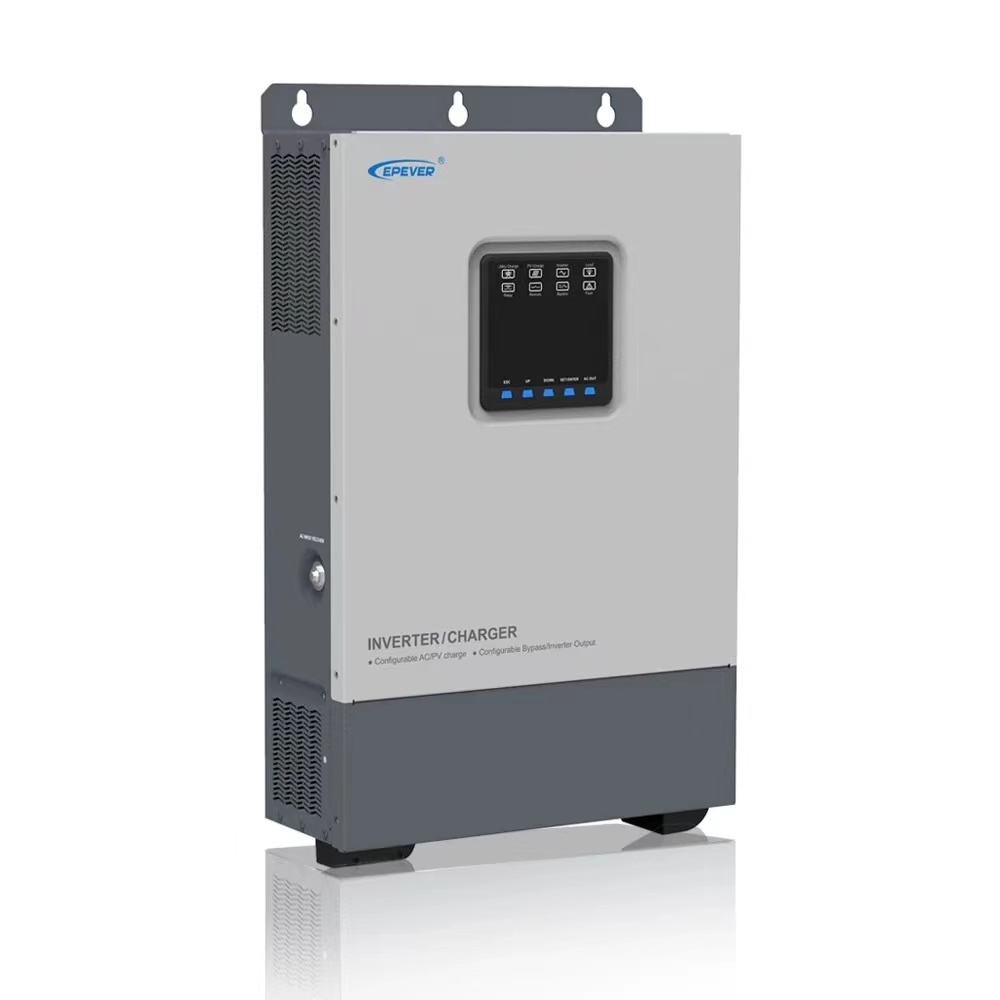

Up5000-hm8042 Epever Hybrid Solar Inverter Off Grid Solar Inverter 5000w With 48v 80a Solar Charge Controller And Grid Charger
Product Parameters
|
Item
|
UP3000-HM10022
|
UP3000-HM5042
|
UP5000-HM8042
|
|
|
|
Rated Input Voltage
|
24VDC
|
48VDC
|
48VDC
|
|
|
|
Battery input voltage range
|
21.6～32VDC
|
43.2～64VDC
|
43.2～64VDC
|
|
|
|
Max. battery charging current
|
100A
|
50A
|
80A
|
|
|
