Quick Details
-
Model Number:
-
VA-SD
-
Place of Origin:
-
Anhui, China
-
Volume:
-
35L/50L/75L/100L
-
Working Pressure:
-
0.22 Mpa
-
Working Temperature:
-
105-134℃ Adjustable
-
Display:
-
LCD display
-
Timer:
-
0~99 min or 0~99 hour 59 min
-
Feature:
-
Hand wheel type door
-
Material:
-
Fully SUS304
-
Basket:
-
2 pcs
-
Drying device:
-
Optional
-
Voltage:
-
4.5KW /AC220V 50HZ
Quick Details
-
Warranty:
-
Lifetime
-
After-sale Service:
-
Free spare parts
-
Brand Name:
-
SADA MEDICAL
-
Model Number:
-
VA-SD
-
Place of Origin:
-
Anhui, China
-
Volume:
-
35L/50L/75L/100L
-
Working Pressure:
-
0.22 Mpa
-
Working Temperature:
-
105-134℃ Adjustable
-
Display:
-
LCD display
-
Timer:
-
0~99 min or 0~99 hour 59 min
-
Feature:
-
Hand wheel type door
-
Material:
-
Fully SUS304
-
Basket:
-
2 pcs
-
Drying device:
-
Optional
-
Voltage:
-
4.5KW /AC220V 50HZ
|
Model
|
VA-SD35
|
VA-SD50
|
VA-SD75
|
VA-SD100
|
|||
|
Volume
|
35 Liters
|
50 Liters
|
75 Liters
|
100 Liters
|
|||
|
Sterilizing Chamber Volume
|
Ø318*H450 mm
|
Ø340*H550 mm
|
Ø400*H600 mm
|
Ø440*H650 mm
|
|||
|
Working Pressure
|
0.22 Mpa
|
|
|
|
|||
|
Max Working Pressure
|
0.23 Mpa
|
|
|
|
|||
|
Working Temperature
|
134°C
|
|
|
|
|||
|
Adjustment of Temperature
|
105°C-134°C
|
|
|
|
|||
|
Timer
|
0-99 min or 0-99 hours 59 min
|
|
|
|
|||
|
Heat Average
|
≤± 1°C
|
|
|
|
|||
|
Power
|
2.5 KW
AC220V 50Hz |
3 KW
AC220V 50Hz |
4.5 KW
AC220V 50Hz |
4.5 KW
AC220V 50Hz |
|||
|
Sterilizing Baskets
|
1 PCS
|
1 PCS
|
2 PCS
|
2 PCS
|
|||
|
Product Dimension
|
450*450*1010mm
|
510*470*1130mm
|
560*560*1120 mm
|
540*560*1250mm
|
|||
|
Package Dimension
|
570*550*1150mm
|
590*590*1280mm
|
650*630*1280mm
|
680*630*1370mm
|
|||
|
Gross Weight/Net Weight
|
72 kg / 56 kg
|
88 kg / 68 kg
|
100 kg / 80 kg
|
110 kg / 85 kg
|
|||

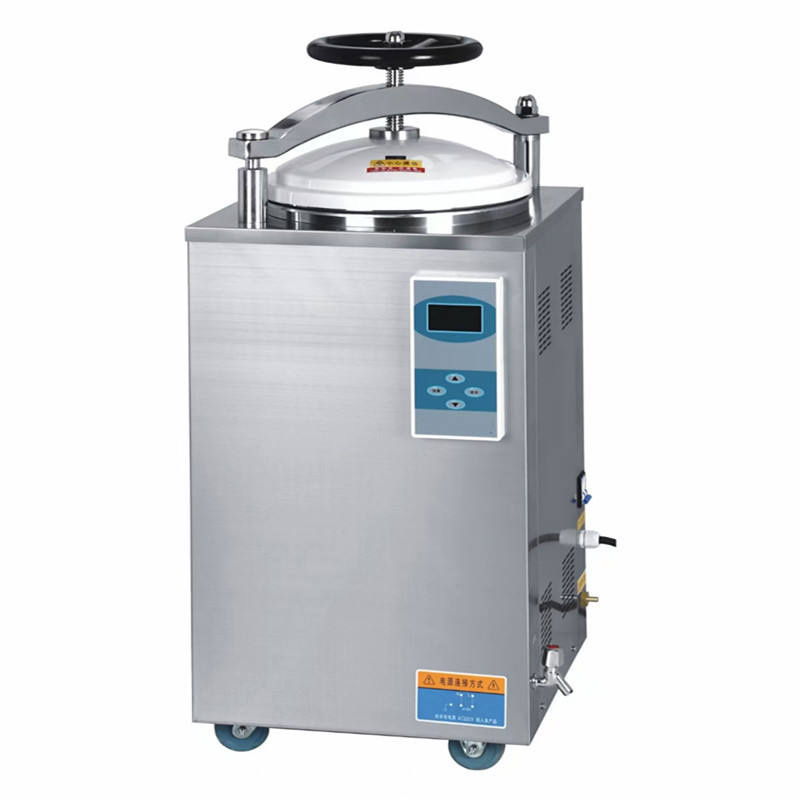

Sada LCD Display Vertical Autoclave Features
1. Fully stainless steel stricture.
2. Hand wheel type of quick-open door structure.
3. Door safety lock system.
4. Digital display of working status, touch type key.
5. Auto discharge the cool air, and steam discharging automatically after sterilizing.
6. Over temperature and over pressure auto-protection.
7. Safe protection of water lacking.
8. Self-inflating type seal.
9. Automatically shut off with beep reminding after sterilization.
10. With two stainless steel sterilizing baskets.
11. Possible to install drying system according request.
2. Hand wheel type of quick-open door structure.
3. Door safety lock system.
4. Digital display of working status, touch type key.
5. Auto discharge the cool air, and steam discharging automatically after sterilizing.
6. Over temperature and over pressure auto-protection.
7. Safe protection of water lacking.
8. Self-inflating type seal.
9. Automatically shut off with beep reminding after sterilization.
10. With two stainless steel sterilizing baskets.
11. Possible to install drying system according request.
Safety Device
1. Safe protection of water lacking
2. The program will be stopped if water level lower than the low limit.
3. The buzzer alarms when a cycle of operation is completed.
4. Over temperature&over pressure auto-protection.
5. Over current protector.
6. Door safety interlock: The door cannot be opened until there is no pressure in the chamber and power for heating cannot be switched on until the door is firmly closed.
7. Safety valve of auto release against over-pressure.
2. The program will be stopped if water level lower than the low limit.
3. The buzzer alarms when a cycle of operation is completed.
4. Over temperature&over pressure auto-protection.
5. Over current protector.
6. Door safety interlock: The door cannot be opened until there is no pressure in the chamber and power for heating cannot be switched on until the door is firmly closed.
7. Safety valve of auto release against over-pressure.
1. What is your payment term ?
–We accept T/T, L/C, Western Union, etc.
2.What is your delivery time ?
— 15-35 working days based on order qty.
3.Would you offer FROM A , FROM E or C/O and other Embassy certification ?
–No problem , we would apply for this certificate to government .
4.Can you use our LOGO ?
— YES, we can use your logo.
5.Where is your market ?
— Our products are popular in Africa, South America, Russia,the Middle East, Southeast Asia and more than 70 countries and regions all over the world.
6. Can you supply OEM items?
— We can supply OEM items because we have our own R&D team.
7. Which country can you delivery?
— We delivery the order to the worldwide.
