Quick Details
-
Product name:
-

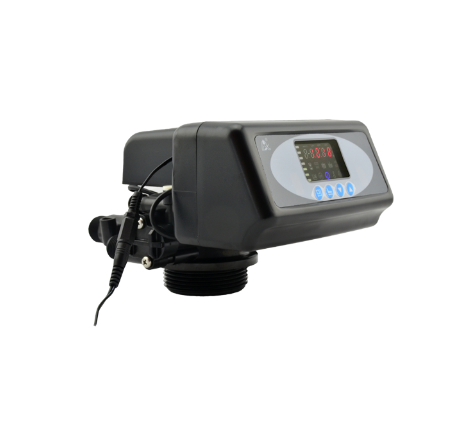

Runxin F117A1 Automatic Softener Valve
-
Brand:
-
Runxin
-
Water Capacity:
-
3 m³/h
-
Type:
-
Time Type
-
Color:
-
Black Body
-
Function:
-
softened water
-
Working Temperature:
-
no more than 50℃
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
F117A1
-
Brand Name:
-
Runxin
-
Product name:
-
Runxin F117A1 Automatic Softener Valve
-
Brand:
-
Runxin
-
Water Capacity:
-
3 m³/h
-
Type:
-
Time Type
-
Color:
-
Black Body
-
Function:
-
softened water
-
Working Temperature:
-
no more than 50℃
Core Technology
Runxin multi-functional flow control valve for water treatment system (called “Runxin Valve”) adopts the patented technology of hermetic head faces structure. It consists of two (or more than two) high flatness corundum ceramic disk and composite disk which are tightly fitted. When the sealing disks rotate, it could change water passage to achieve the designed functions.
Runxin valve, which has independent innovation and intellectual property rights, has been authorized by 18 countries and regions, US, EU(Germany, Italy, United Kingdom, France, Spain, Poland, Hungary, Netherlands, Turkey and Belgium), India, Philippines, Australia, Russia, South Korea, Mexico and Taiwan region.
Product Description
| Product Name | F117A1 Time Type |
| Brand | Runxin |
| Inlet/Outlet | 3/4'' Female |
| Riser Pipe | 1.05''OD |
| Base | 2.5”-8NPSM |
| Water Capacity | 3 m³/h @0.3Mpa |
| Regeneration Mode | Down Flow |
| Suitable Working Temperature | 5 ℃ ~50 ℃ |
| Suitable Water Pressure | 0.15Mpa~0.6Mpa |
| Electrical Facility | AC100~240V/50~60Hz |
| Samples Time |
1) 2 days - For our existing standard samples for reference.
2) 15 days - If non-standard samples, need to make production. |
| Payment Term | T/T 100% in advance. |
| Delivery Time | 10 days to 30 days after confirming the order. |
| Click Here for More Information | |
Product Dimension
Runxin valve main board has many connectors, such as signal output connector, pressure relief connector, remote handling connector, interlock connector, RS-485 port etc. which could be able to control raw water pump, high pressure pump, liquid level switch, ball valve, solenoid valve, or connect with PLC. Based on different Runxin valve models, there will be different connectors on it. So please select a proper Runxin valve model or contact us freely when you design a system.
Product Testing
Technical Support
Our Certificate
Product Certificate
Trademarks
Exhibitions
Since 2008 to 2019, Runxin attended 29 global water treatment exhibitions for Runxin product in US, Netherland, Russia, Brazil, Mexico,
Indonesia , India , Philippines, Vietnam, Kazakhstan, Japan, Dubai, Singapore, South Africa, Egypt, etc .
Pacakge & Delivery
FAQ
1. How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. It is according to quantity.
2. Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
3. What is using of Runxin valve?
A: Water filter/ water softener/ RO system.
4. Are you a trading company or a manufacturer?
A: We are an international professional manufacturer of control valve for water treatment system for more than 20 years.
