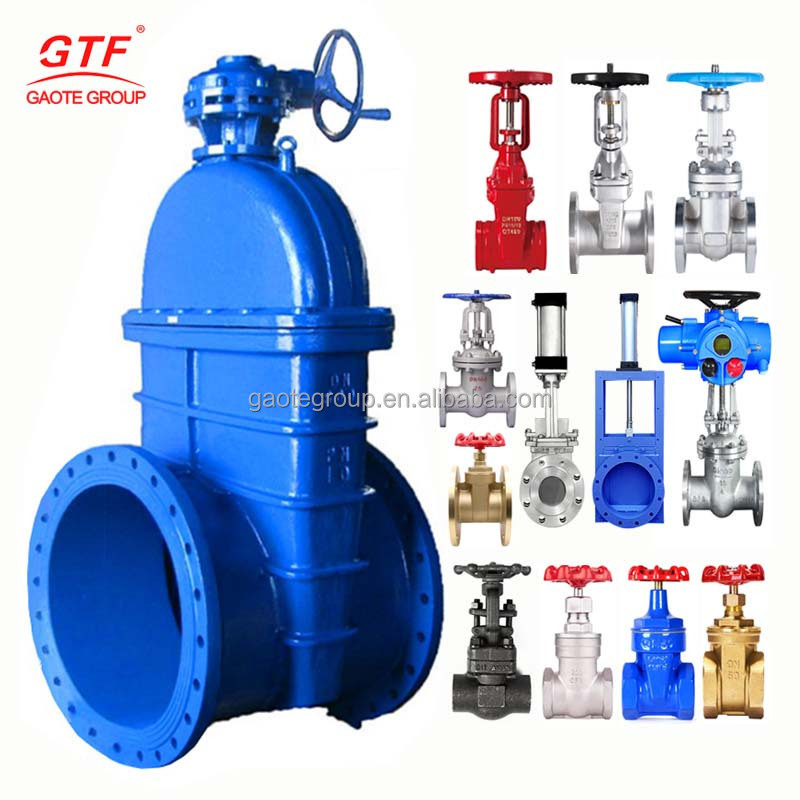

GTF Manual Standard 2inch 32inch 2 way gate valve water resilient flanged big size gate valves

GTF Manual Standard 2inch 32inch 2 way gate valve water resilient flanged big size gate valves

FOB Reference Price: Get Latest Price

≥2 Pieces

US $29.8

≥100 Pieces

US $27.6

≥1000 Pieces

US $25.4

≥10000 Pieces

US $23.2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: Resilient Gate valves

Body material:: Ductile Iron

Connection:: Flange ends

Certificate:: ISO9001, ISO14001, CE, SIL, etc

Size:: Standard Size

Pressure:: PN16

Color:: Blue

Medium:: Water Oil Gas

Standard:: ASTM BS DIN ISO JIS

Brand:: OEM Service

Quick Details

Port Size:: DN50~DN800, 2 in~32 in

Place of Origin:: Fujian, China

Brand Name:: GTF, OEM service

Product name:: Resilient Gate valves

Body material:: Ductile Iron

Connection:: Flange ends

Certificate:: ISO9001, ISO14001, CE, SIL, etc

Size:: Standard Size

Pressure:: PN16

Color:: Blue

Medium:: Water Oil Gas

Standard:: ASTM BS DIN ISO JIS

Brand:: OEM Service

Products Description

Description:

This valve (Resilient seated gate valve) has soft seal wedge that provides both sides sealing function. The valve is designed with
new technology for light operating. When the valve is opened, there will be no clogging and no corrosion becuase full flow
area.The rubber wedge has good resilient memory & long service life.

Applications:

This valve can be used extensively in all kinds of water supply & sewage, fire-fighting and function as an isolation valve.

CUSTOMIZABLE ITEMS
Manufacturing Standard:	BS 5163, DIN 3352-F4, DIN 3352-F5, EN1074-1, EN1074-2, EN 1171, ANSI/AWWA C509, ANSI/AWWA C515, SABS 664, SABS 665 are available.
Size	DN	DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600, DN700, DN800, DN900, DN1000, DN1200 are available.
Size		NPS	1-1/2", 2", 3", 4", 5" 6", 8" 10", 12", 14", 16", 18", 20", 24", 28", 32", 36", 40", 48" are available.
Type	Non-rising stem, rising stem are available.
Connection Ends	Flanged end , socked end, mechanical joint are available.
Material:	Body, bonnet	Ductile iron (400/18, 420/12, 500/7, GGG40, GGG50, EN-GJS-450-10, ASTM A536 Gr.60-40-18, ASTM A536 Gr.65-45-12, ISO1083/JS/400–18, ISO1083/JS/450–10 are available.)
		Wedge	Ductile iron + rubber (EPDM, NBR are available.)
		Stem	Stainless steel (SS 420, SS 304 are available.)
		Bolt and Nuts	Carbon Steel with zinc plated, SS 304 are available.
Operation:	Handwheel, square cap, gearbox, electric actuator, pneumatic actuator are available.
Coating:	Epoxy coating inside and outside (min thickness 250μm)
