Quick Details
-
Fork Length:
-
920mm
-
Fork Width:
-
120mm
-
Overall Dimensions:
-
2190*1090*2195mm
-
Weight (KG):
-
3070 kg
-
Model:
-
FB15
-
Key words:
-
electric forklift 1.5ton,electric portable forklift
-
Name:
-

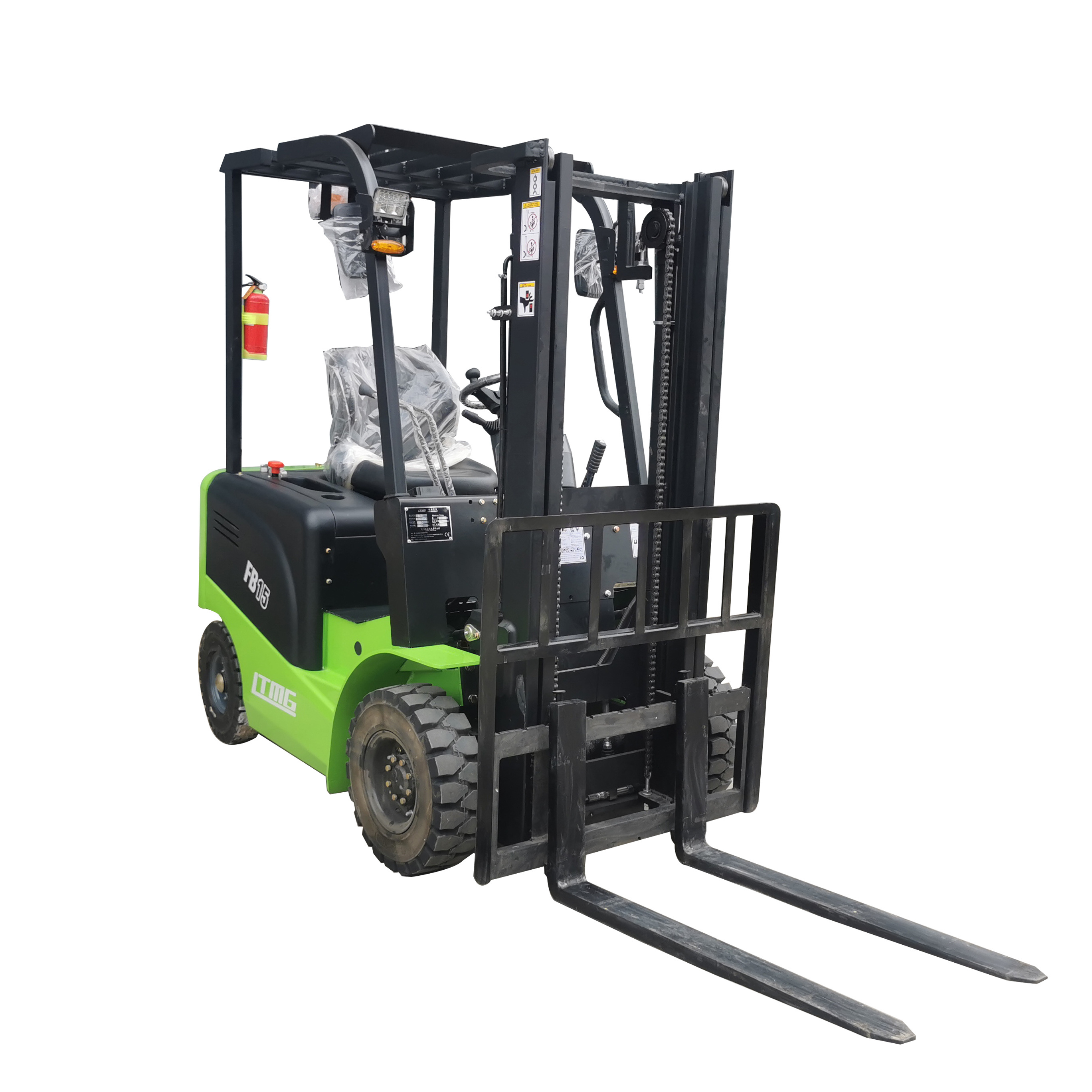

1500kg full electric forklift
-
Overhead Guard Height:
-
2195mm
-
Lift Height:
-
3000mm
-
Mast Lowered Height:
-
1995mm
-
Battery:
-
48V/400Ah
-
Driven Motor:
-
8kw
-
Lift Motor:
-
8.6kw
-
Wheelbase:
-
1420mm
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LTMG
-
Fork Length:
-
920mm
-
Fork Width:
-
120mm
-
Overall Dimensions:
-
2190*1090*2195mm
-
Weight (KG):
-
3070 kg
-
Model:
-
FB15
-
Key words:
-
electric forklift 1.5ton,electric portable forklift
-
Name:
-
1500kg full electric forklift
-
Overhead Guard Height:
-
2195mm
-
Lift Height:
-
3000mm
-
Mast Lowered Height:
-
1995mm
-
Battery:
-
48V/400Ah
-
Driven Motor:
-
8kw
-
Lift Motor:
-
8.6kw
-
Wheelbase:
-
1420mm
Advantages
|
Model
|
FB10
|
FB15
|
FB20
|
FB25
|
FB30
|
|
Rated Capacity
|
1000kg
|
1500kg
|
2000kg
|
2500kg
|
3000kg
|
|
Load Centre
|
500mm
|
500mm
|
500mm
|
500mm
|
500mm
|
|
Lift Height
|
3000mm
|
3000mm
|
3000mm
|
3000mm
|
3000mm
|
|
Fork Size (L×W×T)
|
920x100x35（mm）
|
920×120×35（mm）
|
1070×120×40（mm）
|
1070×120×40（mm）
|
1070×125×45（mm）
|
|
Length to fork face of fork (Without fork)
|
1950mm
|
2035mm
|
2360mm
|
2360mm
|
2610mm
|
|
Overall Width
|
1000mm
|
1150mm
|
1160mm
|
1160mm
|
1230mm
|
|
Overhead Guard Height
|
1875mm
|
1995mm
|
2240mm
|
2240mm
|
2250mm
|
|
Turning Radius (outside)
|
1800mm
|
1997mm
|
2075mm
|
2075mm
|
2350mm
|
|
Wheelbase
|
1200mm
|
1360mm
|
1510mm
|
1510mm
|
1700mm
|
|
Driven Motor
|
4KW
|
5.5KW
|
11KW
|
11KW
|
15KW
|
|
Lift Motor
|
5KW
|
6KW
|
8.6KW
|
8.6KW
|
12KW
|
|
Battery Standard
|
48/320V/Ah
|
48/400V/Ah
|
48/560V/Ah
|
48/630V/Ah
|
80/500V/Ah
|
|
Controller Manufacturer
|
CURTIS
|
CURTIS AC
|
CURTIS AC
|
CURTIS AC
|
CURTIS AC
|
