860 Watt Photovoltaic Full Black Flexible Sticker Solar Panel Sunpower Panel 860W Mono Panels For Balcony System
860 Watt Photovoltaic Full Black Flexible Sticker Solar Panel Sunpower Panel 860W Mono Panels For Balcony System
860 Watt Photovoltaic Full Black Flexible Sticker Solar Panel Sunpower Panel 860W Mono Panels For Balcony System
860 Watt Photovoltaic Full Black Flexible Sticker Solar Panel Sunpower Panel 860W Mono Panels For Balcony System
860 Watt Photovoltaic Full Black Flexible Sticker Solar Panel Sunpower Panel 860W Mono Panels For Balcony System
860 Watt Photovoltaic Full Black Flexible Sticker Solar Panel Sunpower Panel 860W Mono Panels For Balcony System
860 Watt Photovoltaic Full Black Flexible Sticker Solar Panel Sunpower Panel 860W Mono Panels For Balcony System
860 Watt Photovoltaic Full Black Flexible Sticker Solar Panel Sunpower Panel 860W Mono Panels For Balcony System

860 Watt Photovoltaic Full Black Flexible Sticker Solar Panel Sunpower Panel 860W Mono Panels For Balcony System

FOB Reference Price: Get Latest Price
≥4000 Pieces
US $0.6
≥8000 Pieces
US $0.5
≥40000 Pieces
US $0.4
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Controller Type:
MPPT
Mounting Type:
Ground Mounting
Certificate:
CE TUV IEC, CE ISO TUV
Place of Origin:
Jiangsu, China
Brand Name:
SUNKET
Model Number:
LFP 860Wh/LV
Load Power (W):
860W
Output Voltage (V):
230/240V
Output Frequency:
60Hz/50Hz
Work Time (h):
24 Hours
Product name:
Balcony Solar System
Brand:
Sunket
Weight:
25kg
Frame:
Anodized aluminum alloy
External Dimensions:
1722x1134x30mm
Ambient Temperature Range:
-40 to +65℃
Rated Output Power:
860W
Junction Box:
IP68
Port:
SHANGHAI/NINGBO/QINGDAO

Quick Details

Application:
Balcony
Solar Panel Type:
Monocrystalline Silicon
Battery Type:
Lithium Ion
Controller Type:
MPPT
Mounting Type:
Ground Mounting
Certificate:
CE TUV IEC, CE ISO TUV
Place of Origin:
Jiangsu, China
Brand Name:
SUNKET
Model Number:
LFP 860Wh/LV
Load Power (W):
860W
Output Voltage (V):
230/240V
Output Frequency:
60Hz/50Hz
Work Time (h):
24 Hours
Product name:
Balcony Solar System
Brand:
Sunket
Weight:
25kg
Frame:
Anodized aluminum alloy
External Dimensions:
1722x1134x30mm
Ambient Temperature Range:
-40 to +65℃
Rated Output Power:
860W
Junction Box:
IP68
Port:
SHANGHAI/NINGBO/QINGDAO

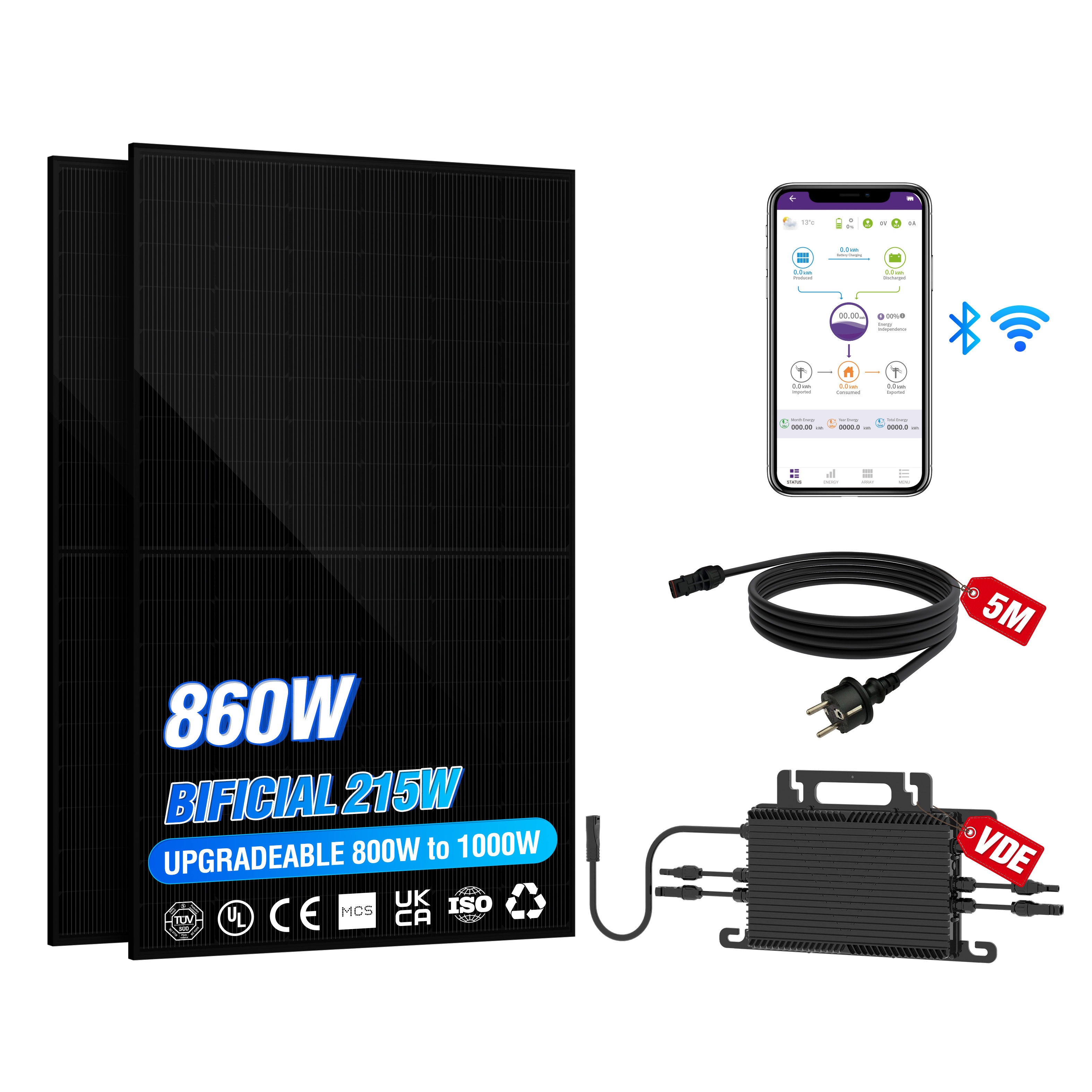

Solar Balcony Solar System balcony solar kit is a plug ‒and-play system composed of solar panel, micro inverter and angle-ad justable bracket, which can be installed by yourself.
Product Advantages
Technical Specifications
Input | DC
SKT—300
SKT—600
SKT—800
Recommended PV Module Power Range /W
450
450 x 2
600 x 2
MPPT Voltage Range /V
22-55
22-55
22-55
Startup Voltage /V
24
24
24
Max. Input Voltage /V
60
60
60
Max. Input Current /A
14
18 x 2
17 x 2
Overvoltage Protection Category
II
II
II
Output | AC



Peak Output Power /VA
350
600
800
Max. Continous Output Power /VA
300
580
750
Rated Output Voltage /V
230
230
230
Nominal Output Voltage Range /V
Configurable
Configurable
Configurable
Max. Continous Output Current /A
1.3
2.52
3.26
Nominal Frequency / Range /Hz
50 / Configurable
50 / Configurable
50 / Configurable
Power Factor (Nominal/Adjustable Range)
1.0/0.8 leading…0.8 lagging
1.0/0.8 leading…0.8 lagging
1.0/0.8 leading…0.8 lagging
AC Short Circuit Fault Current Over 3 cycles /Arms
2.2
4.4
8.2
THDi@Rated Power
<3%
<3%
<3%
Max. Units per 20A Branch
12
6
5
Overvoltage Protection Category
III
III
III
Efficiency
Peak Efficiency
97.1%
97.1%
97.3%
MPPT Efficiency
>99.5%
>99.5%
>99.5%
Night Power Consumption /mW
80
110
110
General Data
Operating Ambient Temperature Range/℃
-40~65
-40~65
-40~65
Relative Humidity Range
0-100%
0-100%
0-100%
Dimensions (W x H x D) /mm
180 x 186 x 25
227 x 132 x 50
268 x 250 x 42
Weight /kg
1.5
2.9
2.9
DC Connector Type
MC4
MC4
MC4
AC Connection Type (inverter-inverter)
Daisy Chain AC Bus
Daisy Chain AC Bus
Trunk Cable
Communication Method
PLC or WiFi
PLC or WiFi
PLC or WiFi
Product Details

Perc 410w all black/ TOPCon 430w all black Available

1. High efficiency : Sunket modules have excellent photovoltaic conversion efficiency. 21% for PERC 410W all-black modules and 22% for TOPCon modules.
2. Low temperature coefficient : TOPCon modules have a low temperature coefficient. This is very important for using solar modules in high temperature and hot areas.
3. Long lifetime : TOPCon modules have a long lifetime and can provide long-term stable energy production.
4. High adaptability : Even in low light conditions, TOPCon modules can still obtain high energy production, which is suitable for solar power scenarios in different regions and different climatic conditions.


Micro Inverter
1. Efficient energy conversion : Sunket microinverter adopts advanced power conversion technology, which can achieve efficient energy conversion, converting DC energy into AC energy. 2. Stable and reliable : Sunket micro-inverter adopts high quality electronic components and advanced control algorithms to ensure the reliability of power supply. 3. Light and portable : Sunket micro-inverter adopts miniaturized design, small size and light weight, which can be easily installed without taking up too much space. 4. Intelligent monitoring : Sunket micro inverter is equipped with intelligent monitoring system, users can adjust and monitor the working status of the inverter remotely through cell phones, computers and other devices.

Universal Bracket

Bracket：Modular design without extra commission enables quicker and easier installation, the angle of the bracket can be adjusted to obtain the maximum power generation.

FEATURES:
1.Adapt to multiple scenarios: garden, balcony, railing, walls and etc.
2.Modular design with plug and play connection, quick and easy installation 3.Adjustable angle manually to adjust the PV module angle for more energy generation.


AC Cable


5m AC cable with rapid shutdown
function
