Quick Details
-
Brand Name:
-
YULONG
-
Model Number:
-
YL-G-SXB
-
Surface Treatment:
-
Smooth, UV inhibitor, or with polyester veil
-
Surface treatment:
-
Smooth, UV inhibitor, or with polyester veil
-
Production Process:
-
Pultrusion, extrusion
-
characteristic:
-
rust-proof,durable, Acid Alkali Resistance,light
-
Raw materials:
-
Fiberglass reinforced plastic(FRP/GFRP)
-
Size:
-
0.8mm to 40mm
-
MOQ:
-
1000 meters
Quick Details
-
Application:
-
plant support, tree nursery,snow stake,tent pole
-
Technique:
-
Pultrusion, extrusion
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
YULONG
-
Model Number:
-
YL-G-SXB
-
Surface Treatment:
-
Smooth, UV inhibitor, or with polyester veil
-
Surface treatment:
-
Smooth, UV inhibitor, or with polyester veil
-
Production Process:
-
Pultrusion, extrusion
-
characteristic:
-
rust-proof,durable, Acid Alkali Resistance,light
-
Raw materials:
-
Fiberglass reinforced plastic(FRP/GFRP)
-
Size:
-
0.8mm to 40mm
-
MOQ:
-
1000 meters
Technical database
|
Yulong FRP Plant Supporting Stake technical data
|
|
|
|
|||
|
Inspection item
|
Unit
|
Index value
|
Testing result
|
|||
|
E fiberglass purity
|
%
|
＞70%
|
72%
|
|||
|
Resin purity
|
%
|
＜30%
|
27%
|
|||
|
Density
|
g/cm³
|
＞1.9
|
1.95
|
|||
|
Water absorption
|
%
|
＜0.5%
|
0.257%
|
|||
|
Insulation resistance
|
Ω
|
≥1.0×10^12
|
1.0×10^13
|
|||
|
Surface withstand voltage(12kv/mm,electrode spacing 30mm)
|
Pass
|
Pass
|
Pass
|
|||
|
Bending strength
|
Mpa
|
≥200
|
240
|
|||
|
Tensile Strength
|
Mpa
|
≥600
|
658
|
|||
|
Straightness
|
mm/m
|
＜3
|
2
|
|||
|
Heat deflection temperature
|
℃
|
≥155℃
|
180℃
|
|||

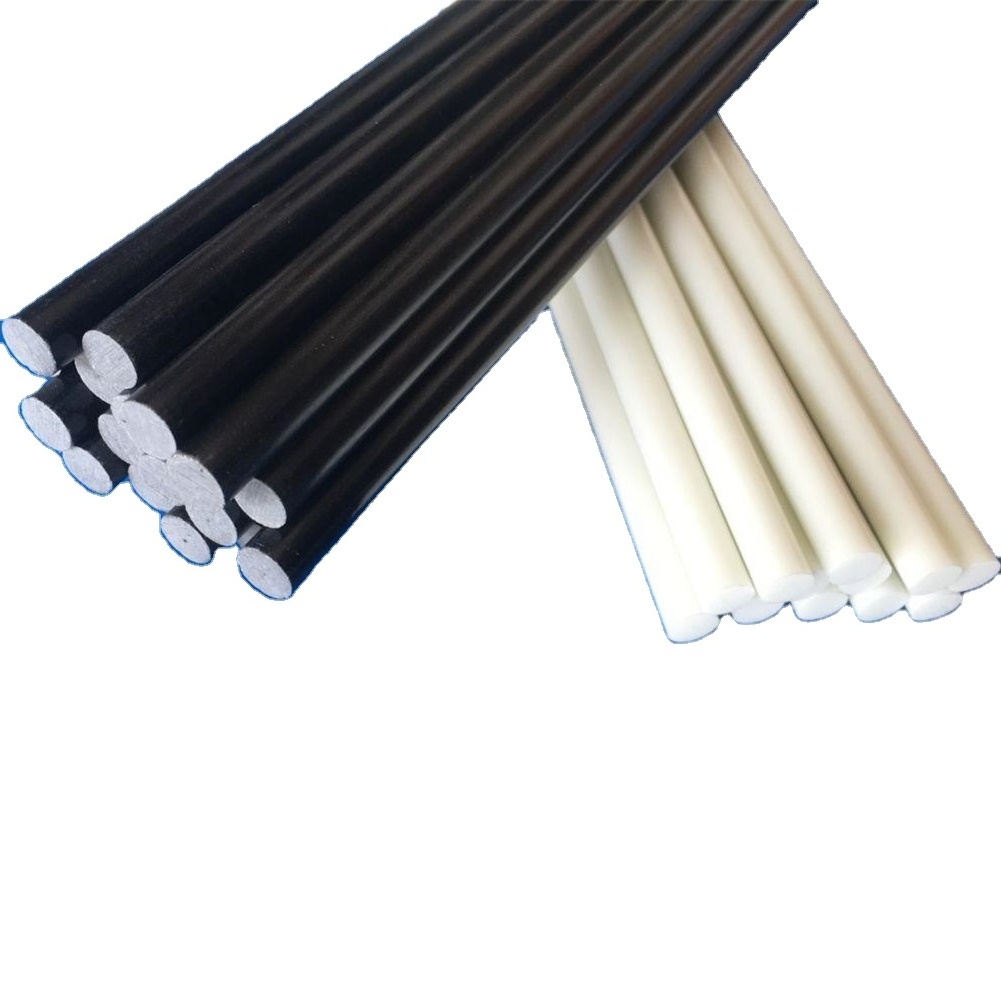

Products Description
FRP Fiberglass stake i
s a composite material with unique characteristics making it useful in a wide variety of
applications. fiberglass rods are composed of polyester resin and fiberglass.It contains above 65% fiberglass and 25% resin,and some other material for special use(like UV-Stability) .
Fiberglass stake is manufactured by pultrusion process,so it is possible to vary the resin system and enhance the glass content properties in order to meet a wide range of demanding requirements for specific designs and applications. This flexibility with the resin mix makes pultrusion material easier to work with, longer lasting and a safer product for the end user than other materials. As fiberglass material is lightweight and strong, it is much more efficient than steel, aluminum or structural timber.Fiberglass is up to 75% lighter than steel but is as strong.
Following are the features of fiberglass stake:
1.Corrosion resistant
2.Non-conductive (thermally & electrically)
3. Lightweight
4.High-strength
5.Non-magnetic electromagnetic transparency
6.Dimensional stability
7. Long life cycle
8. Lower long-term cost
9. Low maintenance
Fiberglass stake application:
Hubei Yulong fiberglass rod can be used in many types of applications across various industries. From the sporting goods industry to agriculture to the oil and gas industry, we can deliver quality fiberglass rod, so you can complete your project and be satisfied with your work.
Following are the example of application of fiberglass stake:
* Plan support (tree nursery, tomato support,olive tree support,apple tree support,grape support)
*Snow Poles
* Flag Sticks
* Yard Markers
* Gripper Rods
* Tool Handles
* Utility Poles
* Marketing Sign Poles
* Golf Flags
* Motor Wedges
* Awning Stiffeners
* Oil Field Sucker Rods
* Sports Equipment
* Tent Poles
* Fence Post Stiffeners
* Standoff Insulators
Hubei Yulong Fiberglass stake colors: Available in natural white,green,yellow,red,blue,dark,orange and customized colors.
Hubei Yulong Fiberglass stake diameter: 1/8",3/16",1/4",5/16",3/8",1/2",5/8",3/4",13/16",7/8",15/16",7/16",9/16".
applications. fiberglass rods are composed of polyester resin and fiberglass.It contains above 65% fiberglass and 25% resin,and some other material for special use(like UV-Stability) .
Fiberglass stake is manufactured by pultrusion process,so it is possible to vary the resin system and enhance the glass content properties in order to meet a wide range of demanding requirements for specific designs and applications. This flexibility with the resin mix makes pultrusion material easier to work with, longer lasting and a safer product for the end user than other materials. As fiberglass material is lightweight and strong, it is much more efficient than steel, aluminum or structural timber.Fiberglass is up to 75% lighter than steel but is as strong.
Following are the features of fiberglass stake:
1.Corrosion resistant
2.Non-conductive (thermally & electrically)
3. Lightweight
4.High-strength
5.Non-magnetic electromagnetic transparency
6.Dimensional stability
7. Long life cycle
8. Lower long-term cost
9. Low maintenance
Fiberglass stake application:
Hubei Yulong fiberglass rod can be used in many types of applications across various industries. From the sporting goods industry to agriculture to the oil and gas industry, we can deliver quality fiberglass rod, so you can complete your project and be satisfied with your work.
Following are the example of application of fiberglass stake:
* Plan support (tree nursery, tomato support,olive tree support,apple tree support,grape support)
*Snow Poles
* Flag Sticks
* Yard Markers
* Gripper Rods
* Tool Handles
* Utility Poles
* Marketing Sign Poles
* Golf Flags
* Motor Wedges
* Awning Stiffeners
* Oil Field Sucker Rods
* Sports Equipment
* Tent Poles
* Fence Post Stiffeners
* Standoff Insulators
Hubei Yulong Fiberglass stake colors: Available in natural white,green,yellow,red,blue,dark,orange and customized colors.
Hubei Yulong Fiberglass stake diameter: 1/8",3/16",1/4",5/16",3/8",1/2",5/8",3/4",13/16",7/8",15/16",7/16",9/16".
Product Paramenters
|
Yulong Fiberglass plant stake parameters,also can be customized according specific requirements
|
|
|
|
|||
|
FRP plant stake
|
Diameter(mm)
|
Area (cm2)
|
Weight (kg/m)
|
|||
|
001
|
4
|
0.126
|
0.024
|
|||
|
002
|
5
|
0.196
|
0.037
|
|||
|
003
|
6
|
0.283
|
0.054
|
|||
|
004
|
7
|
0.385
|
0.073
|
|||
|
005
|
7.9
|
0.490
|
0.093
|
|||
|
006
|
8.5
|
0.567
|
0.108
|
|||
|
007
|
9.5
|
0.709
|
0.135
|
|||
|
008
|
10.1
|
0.801
|
0.152
|
|||
|
009
|
11
|
0.950
|
0.180
|
|||
|
010
|
12.05
|
1.140
|
0.217
|
|||
|
011
|
12.7
|
1.267
|
0.241
|
|||
|
012
|
13
|
1.327
|
0.252
|
|||
|
013
|
14
|
1.540
|
0.292
|
|||
