Quick Details
-
Brand Name:
-
Dental
-
Model Number:
-
CDM5G
-
Type:
-
dental milling machine
-
Product name:
-
CDM5G
-
contact:
-
pereal
-
tel:
-
+8618926562442
-
Quality:
-
High Qualtiy
-
OEM:
-
OEM Accept
-
Advantage:
-
One-Stop
-
Product Type:
-
Dental milling machine
-
Style:
-
CAD CAM
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Free spare parts
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dental
-
Model Number:
-
CDM5G
-
Type:
-
dental milling machine
-
Product name:
-
CDM5G
-
contact:
-
pereal
-
tel:
-
+8618926562442
-
Quality:
-
High Qualtiy
-
OEM:
-
OEM Accept
-
Advantage:
-
One-Stop
-
Product Type:
-
Dental milling machine
-
Style:
-
CAD CAM
Video
Product Description
Specification
|
Name
|
|

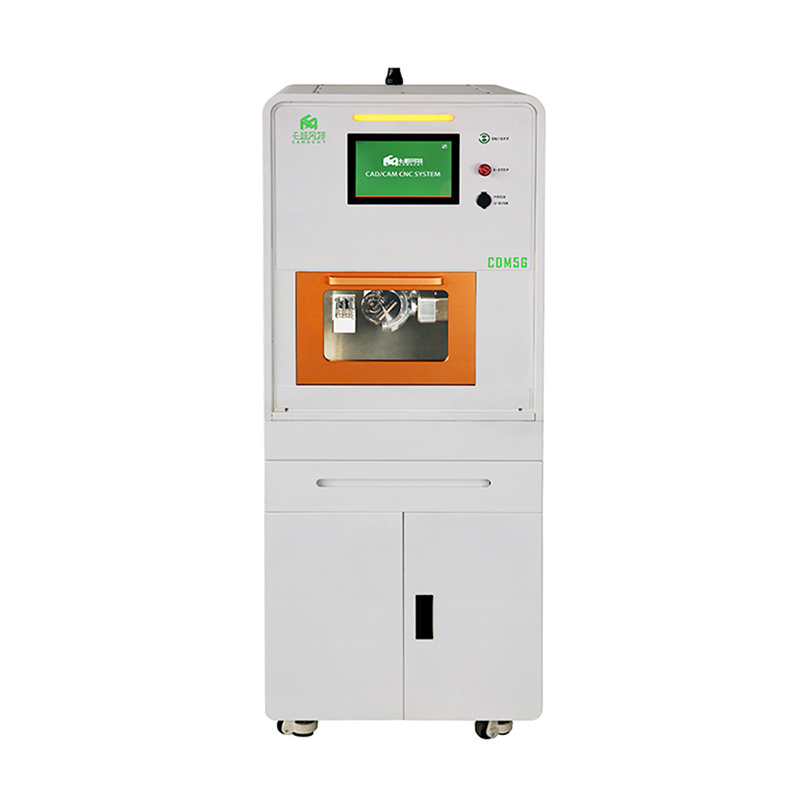

5 Axis dental CAD/CAM milling machine
|
|
|
Model
|
|
CDM5G
|
|
|
Milling mode
|
|
Wet / Dry
|
|
|
Millable material
|
|
Premill ,Glass Ceramics,Zirconia,Wax,PMMA
|
|
|
Indications type
|
|
Crown | Bridge, Veneer, Inlay | Onlay, Abutment, Denture, Screw-retained
bridge, Model cast, Occlusal splint, Surgical guide |
|
|
Spindle power
|
|
1.8KW（2.5KW optional)
|
|
|
Speed of spindle
|
|
3000-60000rpm/min
|
|
|
Spindle cooling
|
|
Water-cooled
|
|
|
X/Y/Z axis motor
|
|
Servo motor
|
|
|
A/B axis motor
|
|
Servo motor with high precision harmonic gear reducer
|
|
|
Rotation range
|
A axis
|
±360°
|
|
|
|
B axis
|
-30°~100°
|
|
|
Number of burs(Tools) housed
|
|
18 pcs
|
|
|
Attachable bur(tool)
|
shank diameter
|
6mm
|
|
|
|
Length
|
50mm
|
|
|
Tool change and check
|
|
Fully automatic
|
|
|
Compatible compressed air
|
|
0.6MPa
|
|
|
Loadable workpiece shape
|
External Diameter
|
98mm
|
|
|
|
Max Height
|
30mm
|
|
|
|
Min. Height
|
10mm
|
|
|
External dimensions
|
Length
|
700mm
|
|
|
|
Width(Depth)
|
650mm
|
|
|
|
Height
|
1700mm
|
|
|
Packing dimension
|
|
700*650*1700mm
|
|
|
Net Weight
|
|
350kg
|
|
|
Gross weight
|
|
400kg
|
|
|
Input Voltage
|
|
Single-phase 220V 50Hz/60Hz
|
|
|
Control command set
|
|
NC code
|
|
|
Positioning accuracy
|
|
0.005mm
|
|
