Quick Details
-
Input Voltage:
-
220V
-
Current:
-
15A
-
Dimensions:
-
63mm~160mm
-
Use:
-
butt fusion welding
-
Power (kW):
-
2.45W
-
Weight (KG):
-
140 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
certificate1:
-
CE
-
certificate2:
-
ISO9001
Quick Details
-
Marketing Type:
-
New Product
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Rothenberger
-
Input Voltage:
-
220V
-
Current:
-
15A
-
Dimensions:
-
63mm~160mm
-
Use:
-
butt fusion welding
-
Power (kW):
-
2.45W
-
Weight (KG):
-
140 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
certificate1:
-
CE
-
certificate2:
-
ISO9001

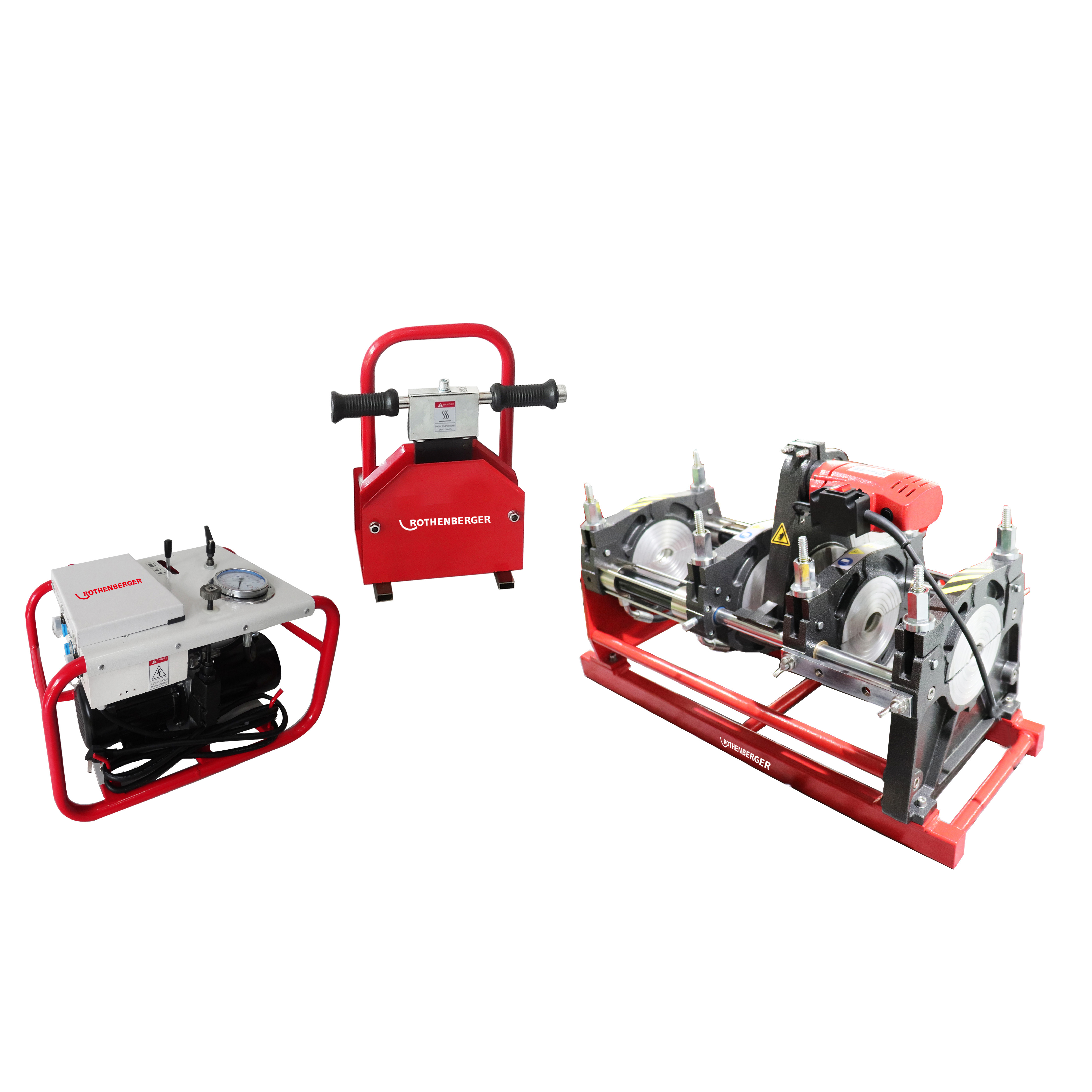

1. Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional
parts
2. Removable PTFE coated heating plate with high accurate temperature control system
3. Electrical planing tool
4. Be made of lightweight and high strength material; simple structure, small and delicate, user friendly
5. Low starting pressure ensures reliable welding quality of small pipes
6. Changeable welding position enables to weld various fittings more easily
7. High accurate and shockproof pressure meter indicates clearer readings
8. Separate two-channel timer records time in soaking and cooling phases.
parts
2. Removable PTFE coated heating plate with high accurate temperature control system
3. Electrical planing tool
4. Be made of lightweight and high strength material; simple structure, small and delicate, user friendly
5. Low starting pressure ensures reliable welding quality of small pipes
6. Changeable welding position enables to weld various fittings more easily
7. High accurate and shockproof pressure meter indicates clearer readings
8. Separate two-channel timer records time in soaking and cooling phases.
|
Model
|
SHD160
|
|
Pipe Size(mm)
|
63,75,90,110,125,140,160
|
|
Heating Plate Max.Temp
|
270°C
|
|
Temp.Deviation in Surface(170-250°c)
|
s+5°C
|
|
Pressure Adjustable Ranges
|
0-7Mpa
|
|
Working Voltage
|
220VAC、50Hz
|
|
Heating Plate Power
|
1KW
|
|
Planing Tool Power
|
0.7KW
|
|
Hydraulic Unit Power
|
0.75KW
|
|
Total Power
|
2.45KW
|
Rothenberger was founded in 1949, headquartered in Germany. Rothenberger Chinaestablished in 1991 is a wholly-owned subsidiary of Rothenberger Group, specializingin plastic welding machines.We are one of the earliest and biggest PE welding machines and band saws manufacturer in China. We have applied for more than 40 national patents, including 8 invention patents, participated in the drafting of nearly 10national and industry standards, and participated in the development of relevant textbooks and reference books.
Our company has been certified by SGS group for ISO9000 quality system and hasalso been certified by German TUV organization for CE product compliance. Thesecertifications have provided a reliable guarantee on the improvement of quality of ourproducts. More than 80k machines made by us have been running in mor than 80countries.
Kindly hope we can cooperate with you on our high quality machines in near future.
