Quick Details
-
Max. Lifting Height:
-
12M
-
Span:
-
4-6M
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KOMAY
-
Warranty:
-
1 year
-
Weight (KG):
-
1200 kg
-
Product Name:
-
Cantilever Jib Crane
-
Type:
-
Workshop Handling Equipment
-
Lifting Speed:
-
6m/min 6.8m/min or can be customized
-
Driven Mode:
-
Manually/electrically
-
Max. Slewing Range:
-
180 /270 /360 degree
-
Working Duty:
-
A3-A5
-
Power Source:
-
3P 220--480V 50/60HZ
-
Ambient Temperature:
-
-25~+40℃
-
Max. Turning Radius:
-
5M
-
Certification:
-
CE, ISO9001:2008,CCC
Quick Details
-
Application:
-
Warehouse/workshop/factory
-
Rated Loading Capacity:
-
5T
-
Rated Lifting Moment:
-
50KN
-
Max. Lifting Height:
-
12M
-
Span:
-
4-6M
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KOMAY
-
Warranty:
-
1 year
-
Weight (KG):
-
1200 kg
-
Product Name:
-
Cantilever Jib Crane
-
Type:
-
Workshop Handling Equipment
-
Lifting Speed:
-
6m/min 6.8m/min or can be customized
-
Driven Mode:
-
Manually/electrically
-
Max. Slewing Range:
-
180 /270 /360 degree
-
Working Duty:
-
A3-A5
-
Power Source:
-
3P 220--480V 50/60HZ
-
Ambient Temperature:
-
-25~+40℃
-
Max. Turning Radius:
-
5M
-
Certification:
-
CE, ISO9001:2008,CCC
KOMAY High Quality JIB Crane
Basic Info.
Model NO.: BZ
Condition: New
Power Source: Electric
Sling Type: Wire Rope
Certification: ISO9001: 2000
Type: Small Crane
Application: Workshop Usage
Export Markets: Global
Additional Info.
Origin:
Henan Changyuan

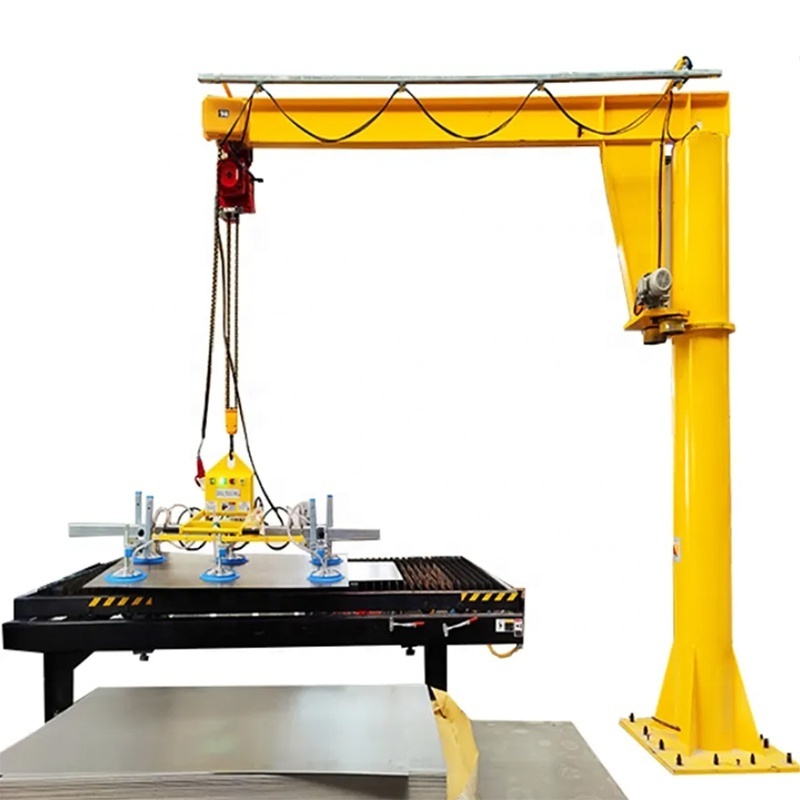

BZ model column style jib crane
BZ model column style jib crane is recently developed MID-light lifting equipment, its unique mechanism, reliable safety is featured high performance, energy and time saving, flexible characters. It could be operated in 3-D space, esp short distance, densely lifting situations to show its advantages compared with common lifting equipment, widely used in workshop, warehouse, yard and other fixed situations.
Environment conditions:
1. Power source of crane is 3-phase current, rated frequency is 50Hz, voltage 380V.
2. Installation site height above sea level of crane is less than 2000m
3. No explosive and corrosive gas in working environment
4. Crane is prohibited to lift smelting metal, poisonous material and flammable explosive materials.
Order notice:
Before place the order, customer must give the detailed parameters (rated capacity, lifting height, valid radius), for our reference to provide you products best suited to your working conditions.
The capacity: 1t, 2t, 3t, 5t.
Max. Turning range: 10m or 12m.
Notice: As this kind of crane is customized, in order to offer you most suitable design and best solution, please confirm following information when you
send inquiry.
1. Lifting capacity.
2. Lifting height. (hook center to ground)
3. Span length. (cantilever length)
4. Power supply: Voltage.
5. Working condition: Which material to lift? Temprature?
6. Would be better if you have drawings of your plant.
capacity
|
T
|
1
|
2
|
3
|
5
|
||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lifting height
|
h(m)
|
5
|
5.5
|
6
|
4
|
4.5
|
5
|
4
|
4.5
|
5
|
4
|
4.5
|
5
|
Effective radius
|
R(m)
|
4
|
4.5
|
5
|
4
|
4.5
|
5
|
4.5
|
5
|
5.5
|
4.5
|
5
|
5.5
|
Lifting speed
|
m/min
|
8
|
|||||||||||
Travelling speed
|
m/min
|
20
|
|||||||||||
Rotating speed
|
°
|
arbitrarily
|
|||||||||||
Rotation angel
|
r/min
|
0.7
|
|||||||||||
Overall height
|
H(m)
|
5.987
|
6.487
|
6.987
|
5.28
|
6.78
|
6.28
|
5.754
|
6.254
|
6.754
|
6.052
|
6.522
|
7.022
|
Overall length
|
L(m)
|
4.61
|
5.11
|
5.61
|
4.626
|
5.126
|
5.626
|
5.82
|
6.32
|
6.82
|
5.44
|
5.94
|
6.44
|
Total weight
|
kg
|
1860
|
1960
|
2229
|
2478
|
2613
|
2748
|
3400
|
3577
|
3742
|
4020
|
4224
|
4430
|
