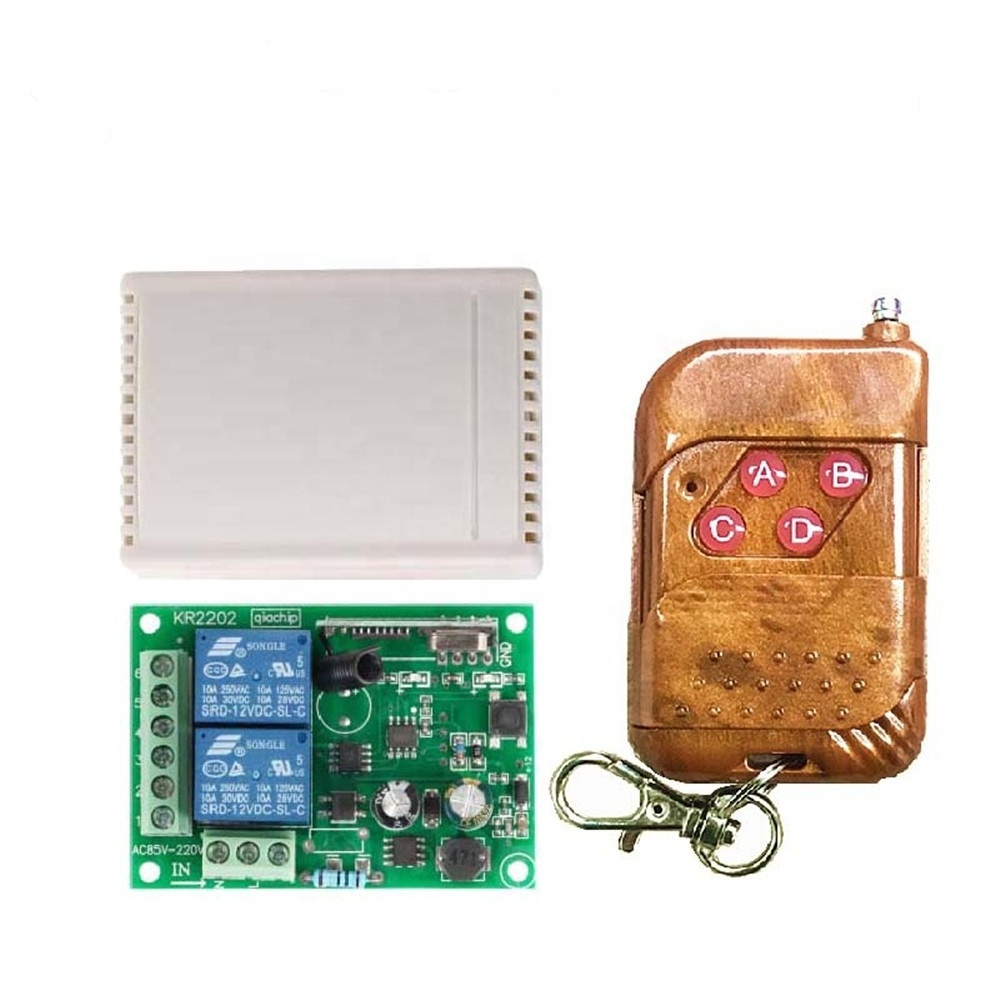

Taidacent 100 Meters Wireless Long Range ON OFF Remote Switch 2 CH 220 Volts Wireless Remote Control 2 Channel Relay RF Switch

The 220V two-way wireless remote control switch developed by our company is mainly used to control the on, off, and switch of electrical appliances, lamps and equipment switches, and various special control program requirements. This product is widely used in remote water pump switches, wireless remote machine switches, wireless remote sockets, wireless lamps, and various wireless home appliances. It is a new type of intelligent switch that can control one or more devices indoors, and the performance of this product is stable and reliable.

First connect the controller to the line. Turn on the power. Press the controller's black learning button 8 times in succession to clear all stored remote controllers. The codes will be cleared. All transmitter remote controllers need to be learned again by the receiver. 1. Learning remote control: (jog mode) Program the 2-button transmitter as a transient mode transmitter. Step 1: Press the learning button on the receiver. And let go. Wait for a while and the LED will turn off, indicating that you are in the learning state. Step 2 Press and release the first button [A] on the remote control, the LED on the receiver board will flash, then turn off, indicating that the button has been learned. Step 3: Press and release the second button [B] to light up the LED again. Wait 3 seconds and the LED will light up again, indicating that the system is ready for use. 2. Learning remote control: (self-locking mode) Program the 2-button transmitter to interlock. Step 1; Press and release the learning button on the receiver. Wait for a while and the LED will turn off, indicating that you are in the learning state. Step 2: Press and release the first button [A] on the remote control, the LED on the receiver board will flash and then turn off. Indicates that the button has been learned. Step 3: Then press and release the second button [B] and see the LED light up again. Wait 3 seconds and the LED indicator will light again, indicating that the system is ready to use. To let the control panel learn the remote control, you must press the "A" and "B" buttons. Instead of just pressing one of them

Technical data : Input power: AC 85V-250V Standby current: <8.5MA RF frequency: 433M RF working mode: super heterodyne Receiving sensitivity:> 97 dbm Launch distance: more than 15 meters Decoding mode: MCU software decoding Acceptable transmitters: 1-16 transmitters Support remote type: learning code (1527) Connection type: fixed terminal Switch output: normally open and normally closed. Digital output: NO: Normally open COM: Common NC: Normal shutdown Wire port: NO: Normally open COM: Common NC: Normal shutdown

Technical Parameters 1. Working voltage: DC3V 2. Working current: ≤10 mA 3. Working frequency: 433MHz.315MHZ 4. Transmit power: ≥10 mW 5. Remote control distance: 100M (measured in open field) 6. Modulation mode: ASK 7, chip type: super heterodyne RF chip + encoding chip 2-in-1, standard EV1527 encoding 8. Button pattern: ABCD, up and down arrows, unlock and unlock, etc. 9. Working environment: -15 / + 75 degrees Celsius Features 1, high-quality classic sliding cover shell, surface water transfer fuel injection treatment, beautiful appearance and feel good. 2. The new super-heterodyne chip has stable frequency and will not deviate after long-time work. 3. Various chips, fixed code, learning code and rolling code are optional.  4, using radio frequency technology, long transmission distance, non-directional, high transmission sensitivity, no signal blocking.  5, with LED work status indicator.
