Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Type:
-
MGO Fireproof Board
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SWISSIWS
-
Model Number:
-
SW-SUM-W531-1
-
Color:
-
Cream White, Grey, Green, Pink, etc.
-
Size:
-
2440*1220, 2400*1200, 2250*1200 etc.
-
Thickness:
-
3mm to 25mm
-
Density:
-
0.95-1.2g/cm3
-
Fireproof Grade:
-
A1 Grade
-
Quality:
-
no asbestos, no formaldehyde
-
Certification:
-
Intertek, CE, ISO
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Type:
-
MGO Fireproof Board
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SWISSIWS
-
Model Number:
-
SW-SUM-W531-1
-
Color:
-
Cream White, Grey, Green, Pink, etc.
-
Size:
-
2440*1220, 2400*1200, 2250*1200 etc.
-
Thickness:
-
3mm to 25mm
-
Density:
-
0.95-1.2g/cm3
-
Fireproof Grade:
-
A1 Grade
-
Quality:
-
no asbestos, no formaldehyde
-
Certification:
-
Intertek, CE, ISO

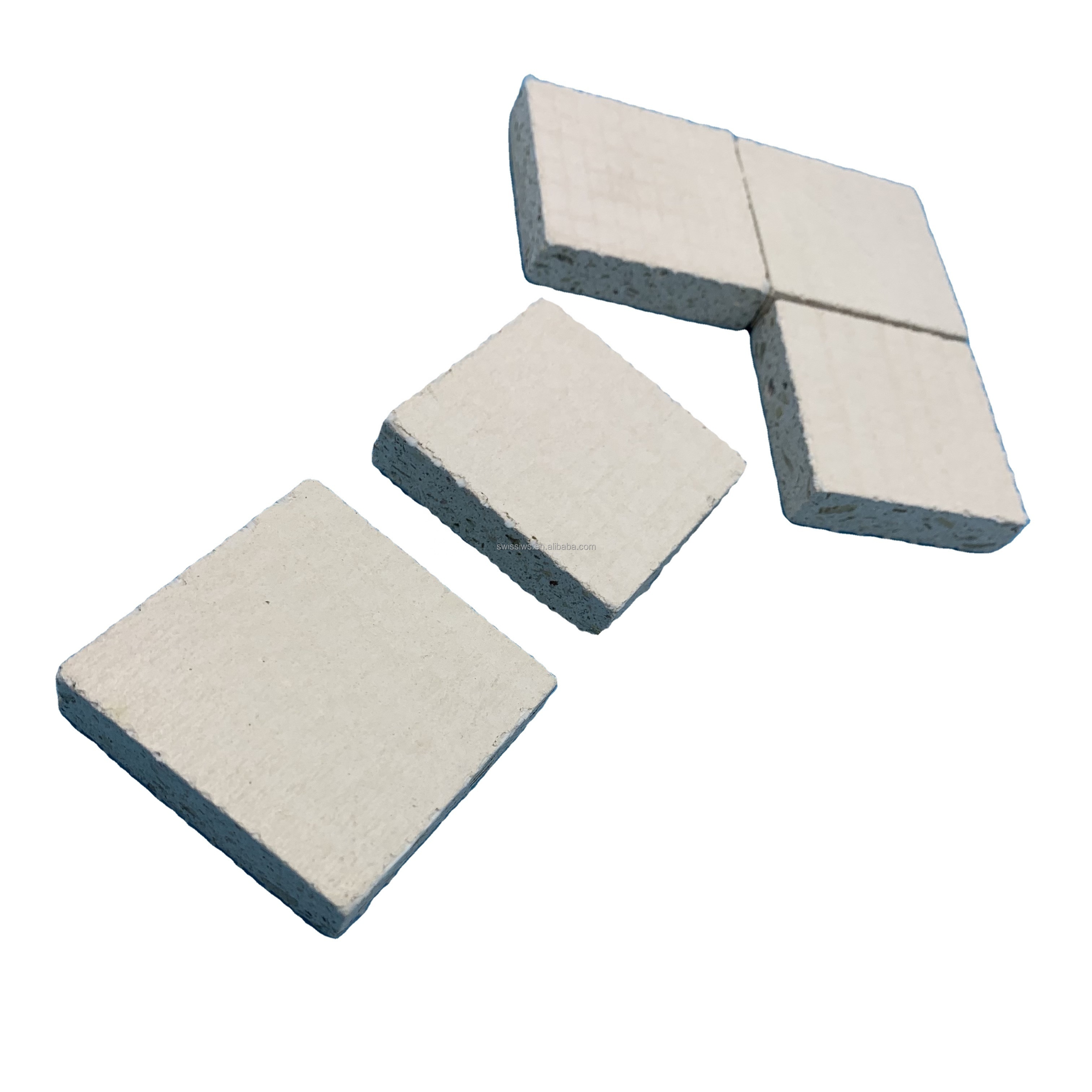

SWISSIWS SULFATE (SULPHATE) MGSO4 BOARD
This panel is the most cost-effective fire rated replacement for poured concrete in floors and roof decks as well as walls where
high impact fire rated surfaces are required. It allows rapid installation for accelerated schedules while giving architects and
contractors a sustainable product that is silica free and mold intolerant.
It is very green in comparison to competitive products. While cement based products use tremendous amounts of energy in their
manufacture, SWISSIWS MGO BOARD uses a room temperature process that uses a small fraction of energy in comparison.
With no silica, it does not pose the same threat to workers when cutting or sanding. Its mold resistance is exemplary.
‘ Dimension ’ of SWISSIWS SULFATE (SULPHATE) MGSO4 BOARD
|
Sizes: |
1220*2440, 1200*2400, 1200*2250, 1200*2280, 1100*2750, 1100*2950, 1100*3000 |
|
Thickness: |
3mm to 25mm |
|
100% asbestos free |
Other specifications available |
|
Thickness tolerance |
0.5mm |
|
Size tolerance |
2mm |
Chart below states general ‘ technical parameter ’ of SWISSIWS SULPHATE MGSO4 BOARD
|
Characteristic |
Unit |
Description |
|
Density |
1050KGS/M3 |
Grams per cubic meter |
|
Tensle Strength |
>5.5 (MPa) |
Mega pascal units |
|
Compressive Strength |
>25 (MPa) |
Mega pascal units |
|
Striking Resistant Strength |
±23.5 (N/mm2) |
Newton per square millimetre |
|
Dimensional Change |
0.35 (%) |
Percentage of water absorption |
|
Modulus of Elasticity |
~6055 (N/mm2) |
Newton per square millimetre |
|
Flexibility |
~20.5 (N/mm2) |
Newton per square millimetre |
|
Thermal Conductivity |
~0.153 (W/mK) |
High Aust. Insulation Rating |
|
Asbestos |
0 % |
Absent |
|
Formaldehyde |
0 % |
Absent |
|
Freeze Thawing Test |
/ |
No change after 15 cycles of freeze Thawing |
