- Product Details
- {{item.text}}
Quick Details
-
Output Voltage (V):
-
120v
-
Output Frequency:
-
5000w
-
Rated power:
-
5000W
-
Rated Voltage:
-
24V
-
Start-up wind speed:
-
2.5m/s
-
Blade Material:
-
Aluminum Alloy
-
Pole connection:
-
flange
-
Flange dimension:
-
DN40
-
Number of blades:
-
5
-
Rotor Diameter:
-
1.2m
-
Roter height:
-
1.5m
-
Colour:
-
white
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RexCo
-
Model Number:
-
RC-5000H-A
-
Output Voltage (V):
-
120v
-
Output Frequency:
-
5000w
-
Rated power:
-
5000W
-
Rated Voltage:
-
24V
-
Start-up wind speed:
-
2.5m/s
-
Blade Material:
-
Aluminum Alloy
-
Pole connection:
-
flange
-
Flange dimension:
-
DN40
-
Number of blades:
-
5
-
Rotor Diameter:
-
1.2m
-
Roter height:
-
1.5m
-
Colour:
-
white

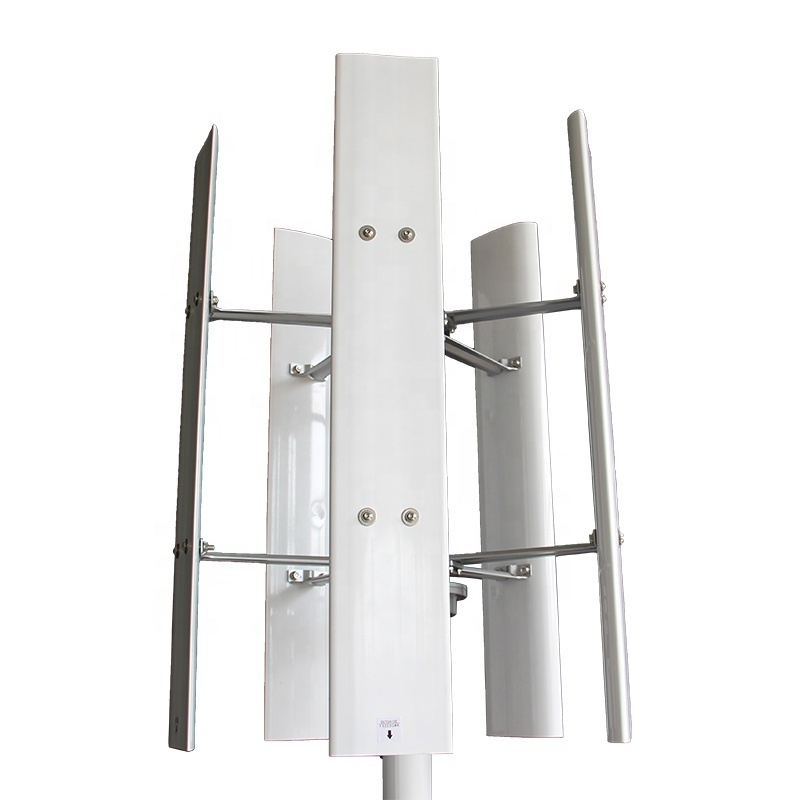

5000w wind turbine generator kit Popular wind energy roof mount vertical wind turbine Specification: 500w wind turbine generator kit Popular wind energy roof mount vertical wind turbine
|
Model |
RC-5KH-A |
|
Rated Output |
5KW |
|
Peak Output |
5.1KW |
|
Rated Voltage |
48V/96V/120V AC |
|
Start-up Wind Speed |
2.5 m/s |
|
Cut-in Wind Speed |
3.5m/s |
|
Rated Wind speed |
12m/s |
|
Survival Max. wind |
45m/s |
|
Number of Blades |
5 |
|
Rotor Diameter |
2m |
|
Rotor height |
3m |
|
Blade Material |
Casting aluminum alloy |
|
Generator Type |
3-phase Maglev with high performance Neodymium Magnets |
|
Generator case |
Casting aluminum alloy |
|
Controller Type |
PWM |
|
Tower Connector |
Flange |
|
Tower Type * |
Guy Cable Tower |
|
Working Temp. range |
from -40°C to 60°C |
|
Product Life |
15 years |
|
Warranty |
1 years |
|
Applications |
on/off-grid solar & wind hybrid system etc. |
Factory
small vertical axis wind turbine Projects:
