Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Techfine
-
Model Number:
-
VS-12548
-
Input Voltage:
-
24V
-
Output Voltage:
-
220V, 110V/220V Customization
-
Output Current:
-
120A
-
Output Frequency:
-
50Hz/60Hz
-
Certificate:
-
CE, ISO14001, ISO9001, CE, ISO14001, ISO9001
-
Warranty:
-
1 YEAR, 1 YEAR
-
Weight:
-
45KG
-
Product name:
-

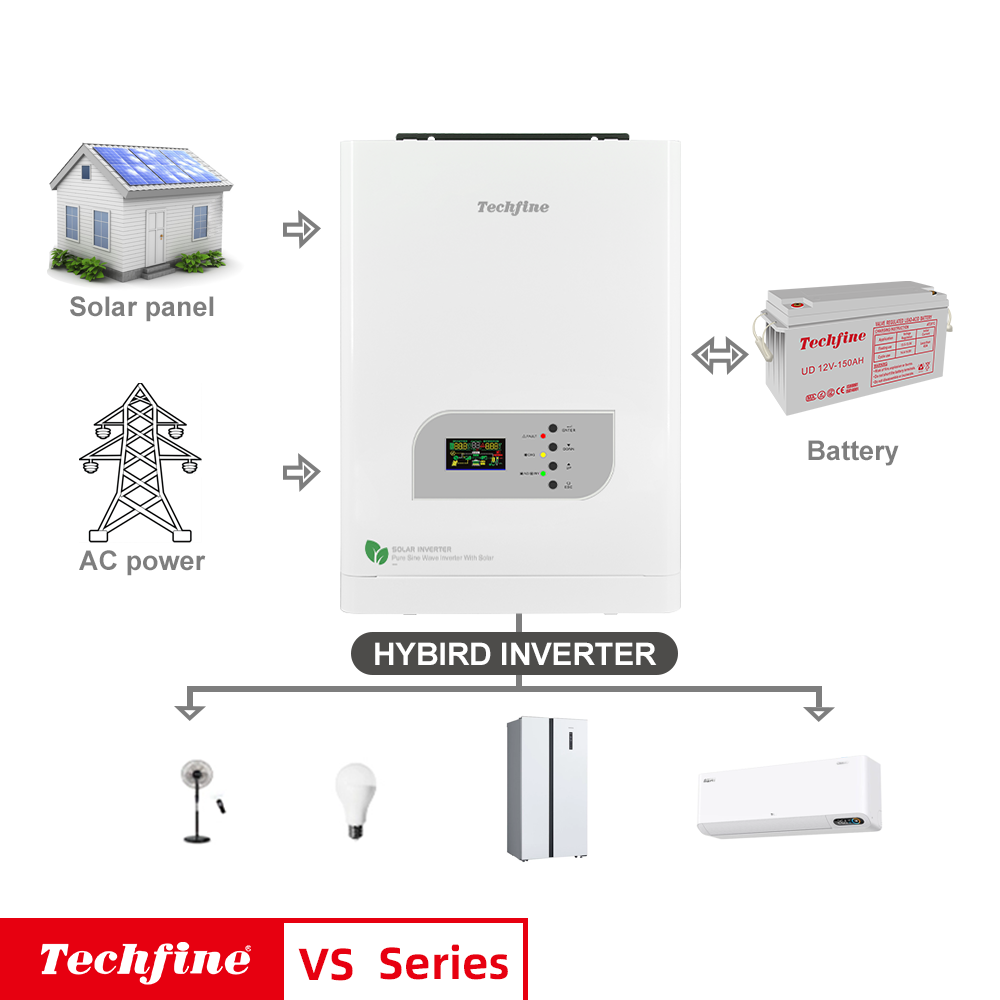

home use hybrid off grid inverter
-
Output waveform:
-
Pure Sine Wave
-
Battery Voltage:
-
48VDC
-
Controller Type:
-
MPPT
-
Maximum solar charge current:
-
120A
-
Frequency:
-
50Hz/60Hz
-
OEM:
-
OEM accepted
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
>98%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Techfine
-
Model Number:
-
VS-12548
-
Input Voltage:
-
24V
-
Output Voltage:
-
220V, 110V/220V Customization
-
Output Current:
-
120A
-
Output Frequency:
-
50Hz/60Hz
-
Certificate:
-
CE, ISO14001, ISO9001, CE, ISO14001, ISO9001
-
Warranty:
-
1 YEAR, 1 YEAR
-
Weight:
-
45KG
-
Product name:
-
home use hybrid off grid inverter
-
Output waveform:
-
Pure Sine Wave
-
Battery Voltage:
-
48VDC
-
Controller Type:
-
MPPT
-
Maximum solar charge current:
-
120A
-
Frequency:
-
50Hz/60Hz
-
OEM:
-
OEM accepted
Products Details
Product Parameters
|
Model
|
1012
|
2024
|
3024
|
4024
|
5024
|
6048
|
8048
|
10048
|
12548
|
||||||||
|
AC Input
|
220VAC(Standard)
|
|
|
|
|
|
|
|
|
||||||||
|
Input Voltage Range
|
154-264VAC±3V（ormal Mode) 185-264VAC±3V（UPS Mode）
|
|
|
|
|
|
|
|
|
||||||||
|
Frequency
|
50/60Hz±5%
|
|
|
|
|
|
|
|
|
||||||||
|
Rated Power
|
800W
|
1600W
|
2400W
|
3200W
|
4000W
|
4800W
|
6400W
|
8000W
|
10000W
|
||||||||
|
Output voltage under inverter
|
220VAC±10%
|
|
|
|
|
|
|
|
|
||||||||
|
Output frequency in inverter
|
50HZ / 60HZ±1%
|
|
|
|
|
|
|
|
|
||||||||
|
Output
|
pure sine wave
|
|
|
|
|
|
|
|
|
||||||||
|
Battery Type
|
External lead-acid battery or water battery or lithium battery
|
|
|
|
|
|
|
|
|
||||||||
|
Voltage of battery
|
12VDC
|
24VDC/48VDC
|
|
|
|
48VDC
|
|
|
|
||||||||
|
Battery charging voltage
|
13.7VDC
|
27.4VDC/54.8VDC
|
|
|
|
54.8VDC
|
|
|
|
||||||||
|
Maximum photovoltaic array power
|
400W
|
24V: 1600W 48V: 3200W
|
|
|
|
60A: 3200W 120A: 6100W
|
|
|
|
||||||||
|
PV Input voltage range
(PWM/MPPT) |
PWM:15V-30VDC
|
24V: MPPT 30V-150VDC / PWM 30V-60VDC
48V: MPPT 60V-150VDC / PWM 60V-105VDC |
|
|
|
48V: MPPT 60V-150VDC
|
|
|
|
||||||||
|
Maximum open circuit voltage of photovoltaic display
|
30VDC
|
24V: MPPT 150VDC / PWM 60VDC
48V: MPPT 150VDC / PWM 105VDC |
|
|
|
48V: MPPT 150VDC
|
|
|
|
||||||||
|
Optimal Vmp operating range
|
PWM：15-20VDC
|
24V: MPPT 30-105VDC / PWM 30-35VDC
48V: MPPT 60-105VDC / PWM 60-65VDC |
|
|
|
48V: MPPT 60-105VDC
|
|
|
|
||||||||
|
Maximum solar charging current
|
30A
|
60A
|
|
|
|
60A / 120A
|
|
|
|
||||||||
|
Maximum AC charging current
|
20A
|
19A/9A
|
30A/15A
|
38A/19A
|
48A/24A
|
29A
|
38A
|
48A
|
60A
|
||||||||
|
Time of conversion
|
≤10ms（UPS model）/≤20ms（INV model)
|
|
|
|
|
|
|
|
|
||||||||
|
Standby power consumption (W)
|
Toroidal Transformer
|
|
|
|
|
|
|
|
|
||||||||
|
Protection Function
|
Mains off: There is no fuse switch to protect the input overcurrent
|
|
|
|
|
|
|
|
|
||||||||
|
|
Inverter: overload protection, short circuit protection, low voltage protection, (battery backconnection is optional).
|
|
|
|
|
|
|
|
|
||||||||
|
Status display
|
LED display
|
|
|
|
|
LED display
|
|
|
|
||||||||
|
Sound prompt
|
Buzzer alarm sounds are different according to different fault codes, which are distinguished by short and long tones
|
|
|
|
|
|
|
|
|
||||||||
|
Operating temperature
|
0℃~40℃
|
|
|
|
|
|
|
|
|
||||||||
|
Storage temperature
|
—15℃~45℃
|
|
|
|
|
|
|
|
|
||||||||
|
Relative temperature
|
—10℃~90℃ No condensation
|
|
|
|
|
|
|
|
|
||||||||
|
Noise
|
＜45dB
|
|
|
|
|
|
|
|
|
||||||||
|
Product Size（L*W*H)mm
|
345*254*105MM
|
|
|
|
|
|
|
|
|
||||||||
|
Packing Size（L*W*H)mm
|
405*315*160MM
|
|
|
|
|
|
|
|
|
||||||||
