Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DOYA LASER
-
Marking Head Brand:
-
DMF-20
-
Weight (KG):
-
50 KG
-
Laser marking standard working area:
-
110mm * 110mm (Optional)
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DOYA LASER
-
Marking Head Brand:
-
DMF-20
-
Weight (KG):
-
50 KG
-
Laser marking standard working area:
-
110mm * 110mm (Optional)

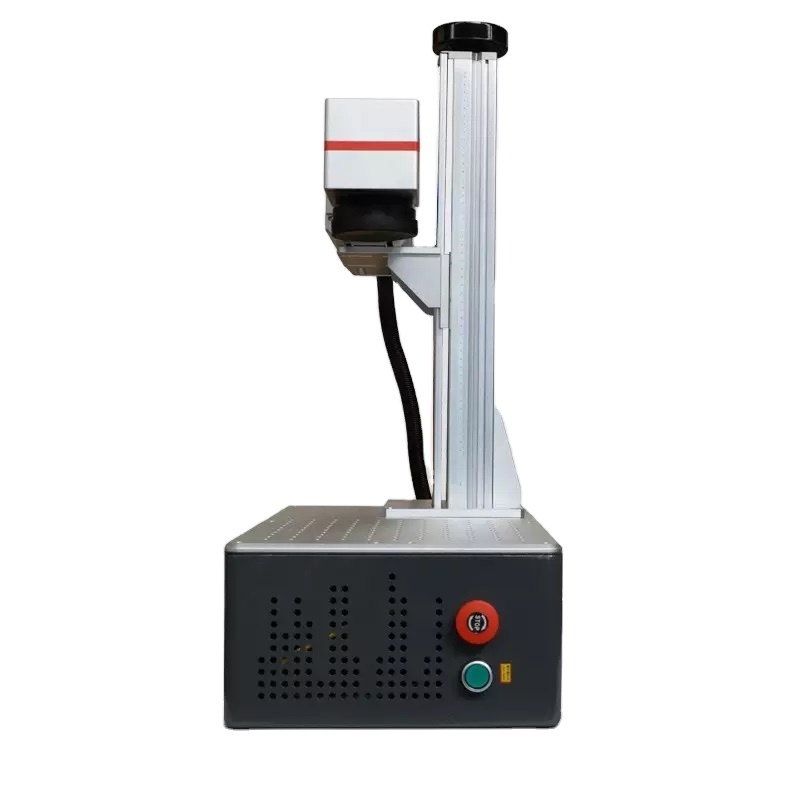

Desktop All-in-one Type Laser Marking Machine
The laser marking machine adopts the most advanced laser technology, which has advantage of high beam quality and high reliability. It is suitable for processing fields that need
high marking depth
,
smoothness
and
accuracy
. The fiber laser marking machine is environmental friendly, low consumption, fully automatically and leading laser system. The software has already been installed and the parameter is settled before delivery. Once received, the laser etcher could work directly without data adjustment.
It is widely used in
metal materials
and
some non-metallic materials
. In the case of marking on
Alumina materials with black logo, model or letters, MOPA laser marking machine
could meet this requirement. This desktop all-in-one type laser marking machine is
fully functional, compact
and
convenient
, making it a good choice for export transportation.
|
Laser Type:
Fiber
|
Power:
20W/30W/50W/100W
|
|
Laser Wavelength:
1064nm
|
Laser Beam Quality:
＜1.5
|
|
Marking Speed:
≤ 7000mm/s
|
Min. Linear Width:
0.01m
|
|
Marking Depth:
0.4mm(based on materials)
|
Repeat Frequency:
20KHz-80KHz
|
|
Repeat Positioning Accuracy:
0.001mm
|
Standard Marking Area:
110mm x 110mm(optional)
|
|
Power Consumption:
≤ 500W
|
Power Supply:
AC 220V 50KHz
|
|
Protective Cover:
Optional
|
Cooling:
Air Cooling
|
After-sales service & Customer visiting:
1.Two years for laser source, one year for other spare parts free and longtime maintenance.
2. Plenty of technical support online is available.
3. Quick back-up parts available & technical assistance.
4. "Training Video","Instruction Book",and"Operation Manual"will be offered.
3. Quick back-up parts available & technical assistance.
4. "Training Video","Instruction Book",and"Operation Manual"will be offered.
All machines, passed the European Union CE authentication and American Certification.
Accoroding to different products and size, we use different packaging materials, our packaging staff are very experieneced, and we absolutely guarantee the satety of products during transportation.
