Quick Details
-
Production Speed(Cycles/min):
-
15~35
-
Air Pressure(MPa):
-
0.5 MPa
-
Sheet Thickness(mm):
-
0.2 - 2 mm
-
Heating Power (kW):
-
45 kW
-
Air Comsumption(L/min):
-
1 L/min
-
Water Comsumption(L/min):
-
1 L/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SME
-
Voltage:
-
380V/50HZ 3P
-
Dimension(L*W*H):
-
L4000*W1550*H2300(mm)
-
Weight (T):
-
4.5 T
-
Usage:
-
Plastic cup Forming Machine
-
Suitable material:
-
PP/PS/PET/PVC/PLA plastic sheet rolls
-
Forming Area:
-
720*400mm
-
Type:
-
Automatic Vacuum Forming Machine
-
Sheet thickness Range:
-
0.20 ~ 2.0 mm
-
Max. Forming depth:
-
120/180 mm
-
Electrical Consumption:
-
45KW/hr
-
Sheet roll diameter:
-
800mm
-
Weight:
-
4.5T
-
Power:
-
30KW
Quick Details
-
Max.Forming Height(mm):
-
180 mm
-
Forming Width (mm):
-
720 mm
-
Forming Length (mm):
-
400 mm
-
Production Speed(Cycles/min):
-
15~35
-
Air Pressure(MPa):
-
0.5 MPa
-
Sheet Thickness(mm):
-
0.2 - 2 mm
-
Heating Power (kW):
-
45 kW
-
Air Comsumption(L/min):
-
1 L/min
-
Water Comsumption(L/min):
-
1 L/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SME
-
Voltage:
-
380V/50HZ 3P
-
Dimension(L*W*H):
-
L4000*W1550*H2300(mm)
-
Weight (T):
-
4.5 T
-
Usage:
-
Plastic cup Forming Machine
-
Suitable material:
-
PP/PS/PET/PVC/PLA plastic sheet rolls
-
Forming Area:
-
720*400mm
-
Type:
-
Automatic Vacuum Forming Machine
-
Sheet thickness Range:
-
0.20 ~ 2.0 mm
-
Max. Forming depth:
-
120/180 mm
-
Electrical Consumption:
-
45KW/hr
-
Sheet roll diameter:
-
800mm
-
Weight:
-
4.5T
-
Power:
-
30KW
Usage

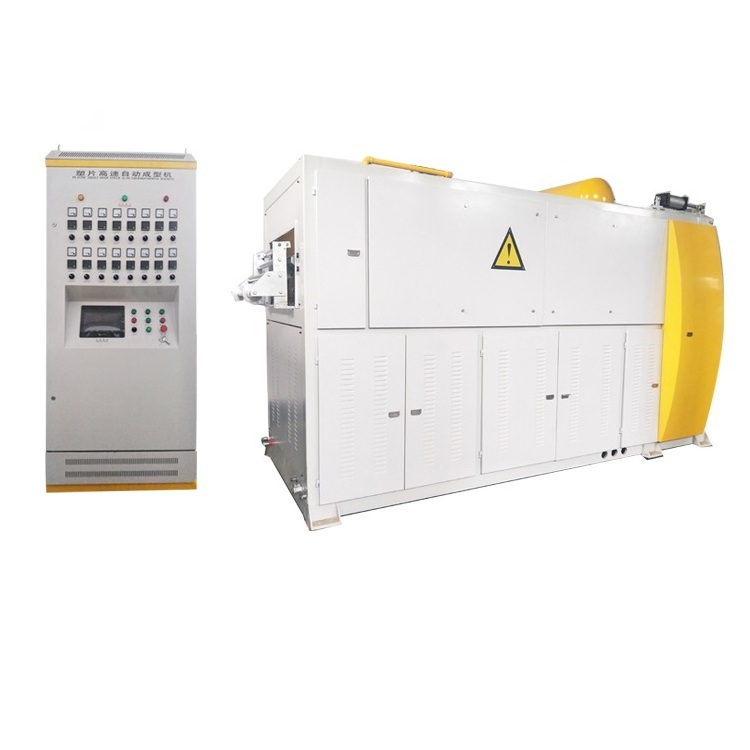

AVF Series Automatic Hydraulic Plastic Cup Thermoforming Machine is widely used to produce disposable water drinking cups, ice-cream cups, disposable cup/bowl for yoghurt, lids, dishes, plates, food containers and etc by PP/PS/PET/PVC/PLA plastic sheet rolls.
Features
AVF Series Automatic Hydraulic Plastic Cup Thermoforming Machine is one of our flagship products. We keep manufacturing these machine models for many years because of warmly welcome from our users.
This machine works full-automatically from sheet roll feeding->heating->molding->formed products-> waste scrap winding. It saves labor cost and increases manufacturer’s profit.
This machine adopts auto sheet roll unwinder, pin-chain sheet feeding controlled by gear motor with inverter, 4-pillar mold guiding, hydraulic pressure drive of bottom mold movement, stretching of plug inside upper mould is controlled by air cylinder and PLC control with touch panel operation.
Mould
Technical Data AVF series
|
Model |
AVF-660 |
AVF-680 |
AVF-750 |
|
Max. Forming Area |
660 x 300 mm |
680 x 350 mm |
720×400mm |
|
Running Speed |
15-35 Stroke / min |
||
|
Approx. Sheet width required for feeding. |
500 – 660 mm in rolls. |
500 – 680 mm in rolls. |
500 –750 mm in rolls. |
|
Mode of cutting arrangement. |
In mould automatic |
||
|
Sheet thickness Range. |
0.20 – 2.0 mm |
||
|
Used Material |
PP, PS, HIPS, PET, PVC,PLA |
||
|
Max. Forming depth, i.e. cup height. |
120/180 mm |
||
|
Oil Pump Motor Power |
7.5KW |
11KW |
15KW |
|
Max. Sheet roll diameter. |
800 mm |
||
|
Temperature Controller & Thermocouple. |
PID K-Type |
||
|
Type of Mould |
Multi cavity 1 - 3 row. |
Multi cavity 1 - 4 row. |
|
|
Approx. Electrical Consumption |
30KW/hr |
35KW/hr |
45KW/hr |
|
Machine size |
L3450×W1500×H2300 ( mm ) |
L3500×W1500×H2300 ( mm ) |
L4000×W1550×H2300 ( mm ) |
|
Approximate Weight |
4000Kg |
4300Kg |
4500kg |
Samples
Workshop Requirement
1. Power Supply:380V/50Hz
2. Required Area of Workshop:At least 200m² (20*10m²)
3. Raw Material Storage: 50m²; Finished Goods Warehouse: 100m²
4. One Set of Transformer (At least 150KW, we suggest you to adopt 200KWtransformer)
Material of mould
1. Mold Frame: 45# Steel
2. Cutting Frame Cr.12/Alloy Steel
3. Molding Chamber: 45# steel/Aluminum Alloy
4. Ejector: 45# Steel
5. Pillar: 45# Steel + Nylon
1. Payment terms:
40% paid for deposit by T/T before production arranged, the balance to be paid before shipment;
2. Delivery time:
25-35 days after receipt of deposit;
3. Guarantee:
One year;
We supply you spare parts for 1 year, but the freight will be on buyer’s account;
4. Installation:
Our company can send one technician to the buyer’s side for machine
installation, test running machine and basic training. If it exceeds one week, the buyer
needs to pay US$100 one day for the technician as the salary. The visa and round trip
tickets, accommodation will be on the buyer's account;
5. Note:
The above machines are designed for power supply Tri-phase, 380V/50HZ. The
price of machine part will be 5% higher if we should make special design to suit for the
power supply;
6. Validity:
60days.
