Quick Details
-
Range of Spindle Speed(r.p.m):
-
50 - 2500 r.p.m
-
Width of bed (mm):
-
100mm
-
Max. Turned Length (mm):
-
600 mm
-
Spindle Motor Power(kW):
-
0.85kW
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
SYNTOP
-
Model Number:
-
WM210V
-
Voltage:
-
110/220V
-
Dimension(L*W*H):
-
900*450*450mm
-
Weight (KG):
-
75 KG
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Manual
-
Swing Over Bed:
-
210mm
-
Swing Over Cross Slide:
-
134mm
-
Distance Between Centers:
-
600mm
-
Width Of Bed:
-
100mm
-
Spindle Bore:
-
38mm
-
Spindle Taper:
-
MT5
-
Number Of Spindle Speed:
-
Varible
-
Weight:
-
75kgs
Quick Details
-
Max. Length of Workpiece (mm):
-
600 mm
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
38m'm
-
Range of Spindle Speed(r.p.m):
-
50 - 2500 r.p.m
-
Width of bed (mm):
-
100mm
-
Max. Turned Length (mm):
-
600 mm
-
Spindle Motor Power(kW):
-
0.85kW
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
SYNTOP
-
Model Number:
-
WM210V
-
Voltage:
-
110/220V
-
Dimension(L*W*H):
-
900*450*450mm
-
Weight (KG):
-
75 KG
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Manual
-
Swing Over Bed:
-
210mm
-
Swing Over Cross Slide:
-
134mm
-
Distance Between Centers:
-
600mm
-
Width Of Bed:
-
100mm
-
Spindle Bore:
-
38mm
-
Spindle Taper:
-
MT5
-
Number Of Spindle Speed:
-
Varible
-
Weight:
-
75kgs

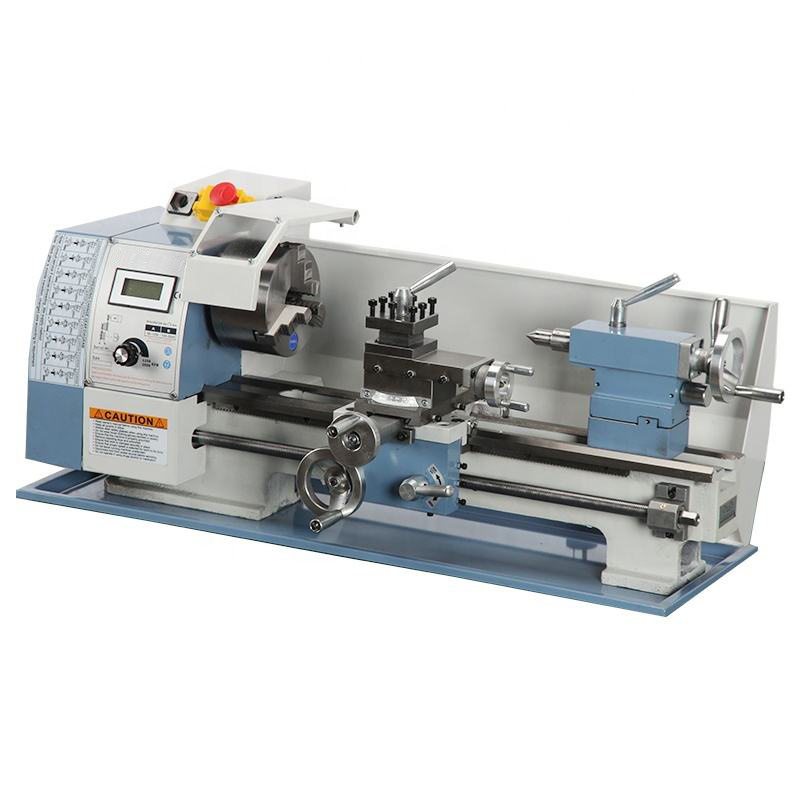

Product Description
Features
●
The Spindle is variable speed, easily opeating.
●
The spindle spped can be adjusted variably during its range of 50-2500 r.p.m., easily read.
●
Supersonic frequency hardened bed way.
●
Precision roller bearing for spindle.
●
igh quality steel, ground and hardened gear inside headstock.
●
Various threads cutting function available.
|
Specifications for WM210V
|
|
|
|
Swing Over Bed
|
210mm
|
|
|
Swing Over Cross Slide
|
134mm
|
|
|
Distance Between Centers
|
600mm
|
|
|
Width Of Bed
|
100mm
|
|
|
Spindle Bore
|
38mm
|
|
|
Spindle Taper
|
MT5
|
|
|
Number Of Spindle Speed
|
Varible
|
|
|
Range Of Spindle Speed
|
50-2500 r.p.m
|
|
|
Number Of Metric Threads
|
14
|
|
|
Range Of Metric Threads
|
0.3-3mm
|
|
|
Number Of Imperial Threads
|
10
|
|
|
Range Of Imperial Threads
|
10-44 T.P.I
|
|
|
Tool Post Type
|
4
|
|
|
Maximum Compoud Slide Travel
|
55mm
|
|
|
Maximum Carriage Slide Travel
|
75mm
|
|
|
Maximum Carriage Travel
|
376mm
|
|
|
Tailstock Spindle Travel
|
60mm
|
|
|
Taper In Tailstock Spindle
|
MT2
|
|
|
Main Motor
|
850W (brushless motor)
|
|
|
Weight
|
85kgs
|
|
|
Packing Size
|
900*450*450mm
|
|
