Salad Shredded Vertical Packaging Machine Back Sealing Frozen Seafood Multihead Weigher VFFS Packing Machine

Salad Shredded Vertical Packaging Machine Back Sealing Frozen Seafood Multihead Weigher VFFS Packing Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $8999

≥3 Sets

US $8500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Production Capacity:: 10-60bag/min

Weight (KG):: 450

Voltage:: 220V 50/60Hz

Place of Origin:: Guangdong, China

Brand Name:: Top Y

Dimension(L*W*H):: 1530*970*1600mm

Model:: TOPY-VP520

Bag length:: 70-350mm

Bag width:: 60-250mm

Speed:: 10-70bags/min

Roll Film Width:: 120-520mm

Film material:: Laminatied Film/Pure PE File

Film thickness:: 0.03-0.1mm

Weighing System:: Weigher/Auger Filler/Pump

Suitable Product:: Granule/Powder/Liquid

Quick Details

Function:: FILLING, Sealing, Bag Forming

Packaging Type:: Film

Packaging Material:: Plastic

Production Capacity:: 10-60bag/min

Weight (KG):: 450

Voltage:: 220V 50/60Hz

Place of Origin:: Guangdong, China

Brand Name:: Top Y

Dimension(L*W*H):: 1530*970*1600mm

Model:: TOPY-VP520

Bag length:: 70-350mm

Bag width:: 60-250mm

Speed:: 10-70bags/min

Roll Film Width:: 120-520mm

Film material:: Laminatied Film/Pure PE File

Film thickness:: 0.03-0.1mm

Weighing System:: Weigher/Auger Filler/Pump

Suitable Product:: Granule/Powder/Liquid

Products Description

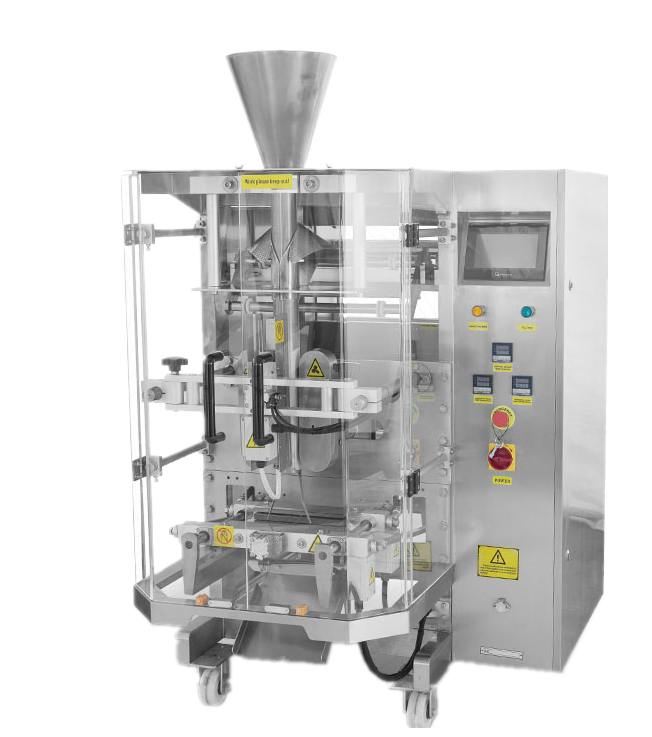

Vffs machine-the machine for your current and future needs! The functions of the packing system mainly are conveying, weighing, bag forming, filling and bag sealing. The flexibility of it allows you to customize your machine to meet your individual requirements!

Vffs machine is suitable for all kinds of the bags made of plastic roll film, such as pillow bag, side gusset bag, quad sealing bag and so on.

Besides, by connecting with different weighing equipments, the packing system can handle various products, such as powder, snacks, dried vegetable or fruit, puffed food, liquid sauce, beverage, etc

Product Paramenters

Function and characteristics:

* PLC controller with touch screen interface
* Servo-driven end seal jaws
* Servo-driven film transport
* Hot printer and film feeding system synchronous
* Quickly changing one-piece bag former
* Eye mark sensor for film tracking
* Stainless steel frame

Specifications
Model. No	TOPY-VP420	TOPY-VP520	TOPY-VP620	TOPY-VP800
Bag Size	（L）60-230mm* （W）60-200mm	（L）100-300mm* （W）80-250mm	（L）100-380mm* （W）100-300mm	（L） 50-380mm* （W）110-400mm
Bag Speed	15-60bags/min	15-60bags/min	15-60bags/min	10-30bags/min
film width	140-420mm	180-520mm	220-620mm	340-800mm
Air Consumption	0.6Mps 0.36m3/min	0.6Mps 0.36m3/min	0.6Mps 0.4m3/min	0.6Mps 0.7m3/min
Powder Supply	2.2kw， 220V 50/60HZ	3kw， 220V 50/60HZ	4kw， 220V 50/60HZ	4.5kw， 220V 50/60HZ
Packed Dimension	(L)1430(W)970(H)1600mm	(L)1550(W)1160(H)1480mm	(L)1600(W)1260(H)1680mm	(L)1600(W)1500(H)2050mm

Packing Solution

The filling system is just for your reference. We will offer you best solution according to your product mobility, viscosity, density, volume, dimensions etc.

A. Powder Packing Solution

Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder,
flour, medicinal powder, etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
D. Granule Packing Solution
Linear weigher is specialized for granule filling such as chemical, beans, salt, seasonings etc.

Step1 : set the parameters we need on HMI
Step2 : pour bulk products into the storage hopper manually or automatically
Step3 : mutilhead weigher will dose target weight we need
Step4 : the packing machine finish the film unwind and bag making
Step5 : the weighing machine fill dosed products to the made bags
Step6 : the sealing jaws and cutting blade seal and cut the bags automatically
