Quick Details
-
Dimension(L*W*H):
-
8990*2400*3300mm
-
Weight:
-
7800 KG
-
After-sales Service Provided:
-
Video technical support
-
color:
-
optional
-
Drilling depth:
-
0-600m
-
drilling technology:
-
muddy water circulation drilling
-
Application:
-
Drilling Wells
-
Drilling method:
-
DTH Percussive Drilling
-
Drill rod length:
-
3.0m
-
Drill rod diameter:
-
89-102-108-127mm
-
Drilling bit:
-
PDC Drilling Bit
-
Engine:
-
CUMMINS
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
HRX
-
Voltage:
-
Diesel Engine Driven
-
Dimension(L*W*H):
-
8990*2400*3300mm
-
Weight:
-
7800 KG
-
After-sales Service Provided:
-
Video technical support
-
color:
-
optional
-
Drilling depth:
-
0-600m
-
drilling technology:
-
muddy water circulation drilling
-
Application:
-
Drilling Wells
-
Drilling method:
-
DTH Percussive Drilling
-
Drill rod length:
-
3.0m
-
Drill rod diameter:
-
89-102-108-127mm
-
Drilling bit:
-
PDC Drilling Bit
-
Engine:
-
CUMMINS
Main purpose and characteristics
1.Water Well Drilling is used in urban village, agricultural irrigation, industrial and other water wells drilled, geothermal well, exploration and geological survey, engineering construction such as high-rise buildings, Bridges, geological mining ports, ports, dams and other basic pile drilling.

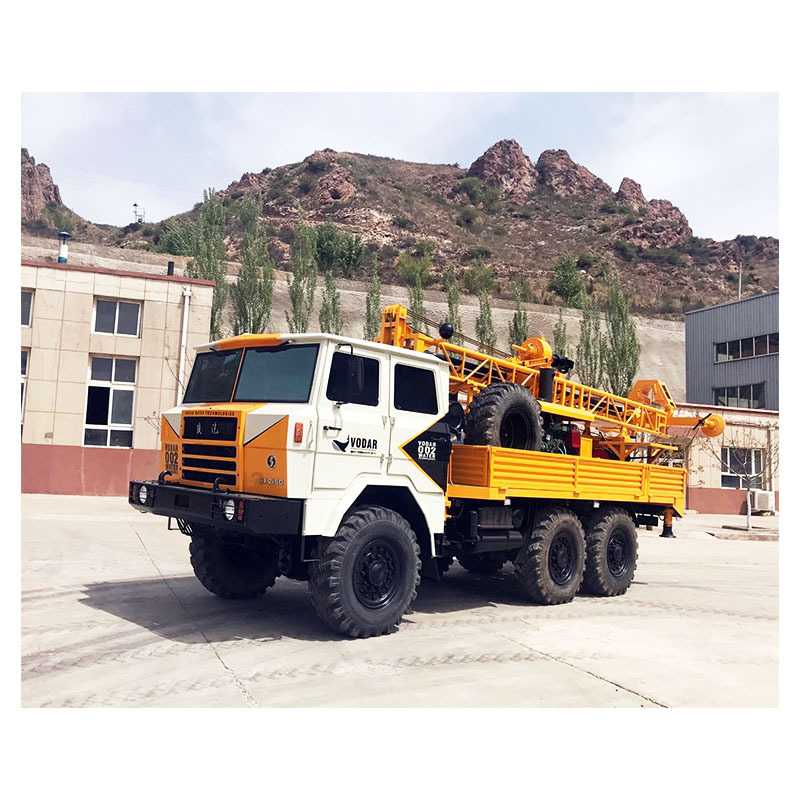

2.It is a self-propelled vehicle used four-drive cross-country chassis, the drill is installed on the chassis.
3.Double cabin chassis, can be seat 6 people.
4.The engine adopts high - voltage common rail technology, strong power and strong climbing. It is suitable for mining area and wild environments.
5.The standard rig is equipped with an independent diesel engine as a drive but also motor-driven can be installed according to customer needs.
6.The machine can be used in mud drilling and air drilling technology, suitable for construction work of clay layer, sand soil layer and rock layer.
7.The machine has large torque, large lift force, strong power, simple operation and easy to add unloading pipe.
Specification
|
Main
Parameters
|
|
|
|
|||
|
Drill hole diameter (mm)
|
90-1200
|
|
|
|||
|
Drilling depth (m)
|
400
|
|
|
|||
|
Drill pipe length (m)
|
3-6
|
|
|
|||
|
Drill pipe diameter (mm)
|
Φ73, Φ89, Φ95, Φ133
|
|
|
|||
|
Drilling technology
|
Mud Positive and Reversal circulation
Air Positive and Reversal circulation |
|
|
|||
|
Impactor
|
mid-pressure and high pressure pneumatic
|
|
|
|||
|
Driving head diameter (mm)
|
Φ60, Φ80, Φ120
|
|
|
|||
|
Lifting power (N)
|
18
|
|
|
|||
|
Driving head speed (r/min)
|
A (forward: 14-23-52-84) (reverse: 8-13-29-47)
|
|
|
|||
|
|
B (forward: 32-52-116-188) (reverse: 18-29-65-106)
|
|
|
|||
|
Driving head lifting speed (m/s)
|
0.37, 0.16
|
|
|
|||
|
Main winch lifting power (T)
|
3
|
|
|
|||
|
Pressure capacity (T)
|
2
|
|
|
|||
|
Working appearance size (mm)
|
7900*2470*7200
|
|
|
|||
|
Chassis support form
|
Hydraulic
|
|
|
|||
|
Type of rise and fall
|
Hydraulic
|
|
|
|||
|
Chassis
|
Dongfeng military four-drive cross-country
|
|
|
|||
|
Drill driving power (kw)
|
49
|
|
|
|||
|
Pump
|
LBN-20 Positive and Reversal circulation pump group
|
|
|
|||
|
Pump flow (m3/h)
|
80
|
|
|
|||
Detailed images
