Quick Details
-
Operating Angle:
-
Max Working Angle 45 Degree
-
Warranty:
-
3 months
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NTL
-
Product Name:
-
Universal Joint Kits GU500 Shaft Cross Joint GU500
-
Bore Size:
-
23.82 mm
-
Length:
-
61.6mm
-
Type:
-
Universal joint
-
Application:
-
All cars, trucks ,trailers
-
Surface Treatment:
-
Bright or Blacken
-
Packing:
-
Neutral Packing
-
Item:
-
GU500
-
CERTIFICATE:
-
ISO9001:2008
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Retail
-
Structure:
-
Single
-
Material:
-
40Mn
-
Operating Angle:
-
Max Working Angle 45 Degree
-
Warranty:
-
3 months
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NTL
-
Product Name:
-
Universal Joint Kits GU500 Shaft Cross Joint GU500
-
Bore Size:
-
23.82 mm
-
Length:
-
61.6mm
-
Type:
-
Universal joint
-
Application:
-
All cars, trucks ,trailers
-
Surface Treatment:
-
Bright or Blacken
-
Packing:
-
Neutral Packing
-
Item:
-
GU500
-
CERTIFICATE:
-
ISO9001:2008

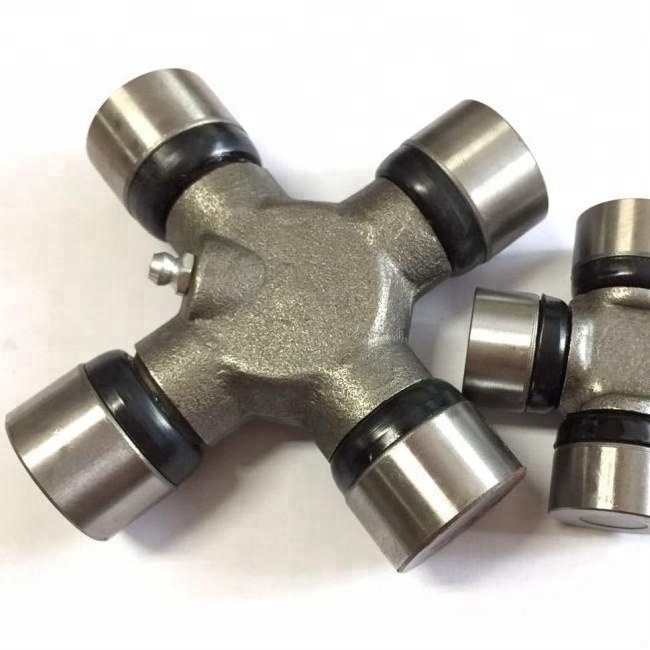

Universal Joint Kits GU500 Shaft Cross Joint GU500
Universal Joint Kits GU500 Shaft Cross Joint GU500
Description:
1.Universal joint bearing, is part of the power transfer to realize variable Angle, used to need to change the location of the drive axis direction.It is the universal transmission device of car driving system of the "joint" part.
2.Universal joint and combination of transmission, known as the universal joint transmission device. On the front engine rear wheel drive vehicles, universal transmission device installed in the gearbox output shaft and drive axle of the main reducer input shaft between; And front engine front-wheel drive vehicles omit the transmission shaft.
3.Universal joint is installed in the steering system is responsible for driving and responsible for between front axle and half axle and the wheel.
Data:
| FOR U.S. AND EUROPEAN VEHICLES IDENTIFICATION AND WEIGHT LIST | |||||
| PART NO | FIG | D m/ | L m/m | N.WEIGHT | G.WEIGHT |
| GU300 | A | 19.04 | 51.98 | 170 | 230 |
| GU400 | A | 23.82 | 61.30 | 300 | 350 |
| GU500 | A | 23.82 | 61.30 | 300 | 350 |
| GU700 | A | 27.00 | 61.86 | 400 | 450 |
| GU1000 | A | 27.00 | 81.75 | 500 | 600 |
| GU1100 | A | 27.00 | 74.60 | 450 | 550 |
| GU1700 | A | 22.00 | 55.00 | 200 | 280 |
| GU2000 | A | 30.18 | 106.35 | 820 | 920 |
| GU2200 | A | 30.18 | 92.07 | 680 | 780 |
| GU2300 | A | 34.93 | 106.30 | 1120 | 1320 |
| GU3000 | A | 39.69 | 115.95 | 1850 | 2050 |
| GU3500 | A | 39.67 | 115.42 | 1850 | 2050 |
| GU3800 | A | 44.00 | 126.00 | 2250 | 2450 |
| GU3810 | A | 50.00 | 152.60 | 3400 | 3500 |
| GU7280/4 | A | 24.09 | 74.55 | 400 | 500 |
| GU7430 | A | 35.00 | 96.80 | 1000 | 1100 |
| GU7440 | A | 38.03 | 105.60 | 1150 | 1300 |
| GU7530 | A | 45.03 | 120.40 | 2300 | 2500 |
| GU7560 | A | 52.10 | 133.00 | 3000 | 3300 |
| GU7610 | A | 53.00 | 135.00 | 3100 | 3350 |
| GU7620 | A | 48.05 | 125.80 | 2300 | 2500 |
| GU7630 | A | 57.07 | 152.00 | 4300 | 4500 |
| GU7650 | A | 48.00 | 126.00 | 2300 | 2500 |
| GU8130 | A | 57.00 | 144.00 | 3900 | 4100 |
| GU9930 | A | 53.00 | 135.05 | 3100 | 3350 |
