Quick Details
-
Key Words:
-
1.8KW dc converter
-
Input Voltage:
-
Single phase 90VAC - 265VAC
-
Max Output Power:
-
1.8 KW
-
Max Input Current:
-
16A
-
DC Output Voltage Range:
-
18-68V DC / 25-99VDC/34-132VDC option
-
DC Output Rated Voltage:
-
48V DC / 72V DC/ 96V DC
-
DC Output MAX Current:
-
25A /16A
-
IP Level:
-
IP67
-
Efficiency:
-
94%
-
Warranty:
-
12 months
Quick Details
-
Place of Origin:
-
Chongqing, China
-
Model Number:
-
1.8KW dc converter
-
Brand Name:
-
SENKU
-
Key Words:
-
1.8KW dc converter
-
Input Voltage:
-
Single phase 90VAC - 265VAC
-
Max Output Power:
-
1.8 KW
-
Max Input Current:
-
16A
-
DC Output Voltage Range:
-
18-68V DC / 25-99VDC/34-132VDC option
-
DC Output Rated Voltage:
-
48V DC / 72V DC/ 96V DC
-
DC Output MAX Current:
-
25A /16A
-
IP Level:
-
IP67
-
Efficiency:
-
94%
-
Warranty:
-
12 months

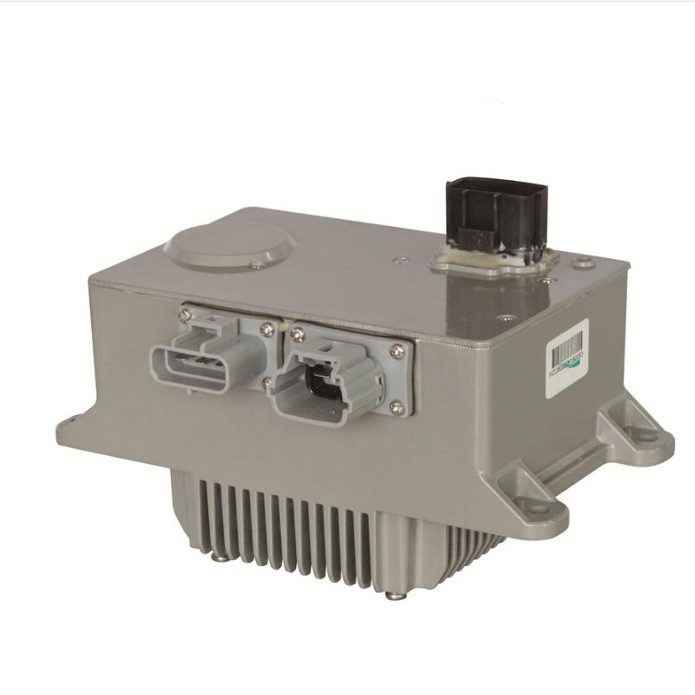

TC Charger 48V 25A 72V 25A 96V 16A AC DC Converter IP67 1.8KW Electric Car Charging EV On Board Charger
Product Description :
The 1.8
KW charger was specially designed for supplying the electricity for electric vehicle’s power battery, on the basis of the national standards for the charger. This product has the advantages of not only only high efficiency, small size, high stability, long lifespan, but also high protection grade, and high reliability and complete protection function, etc. It’s definitely an ideal charging power supply for electric vehicles.
This charger has built-in heat-sensing device and can automatic recover through the thermal protection. Fully sealed potting process and up to IP67 protection level ensures no causing trouble in any complex environment.
Product Features:
AC-DC high-voltage output charger
·Fully Sealed, Enforce air Cooling/Liquid Cooling(Module Optional)
·Reliable working under -35℃- +85℃
·Internal temperature sensor
·Shut off inside temperature over 90°C
·IP67 Protection Level
·Working well in immersion shortly
Electrical Performance:
| Specification | Unit | Data | |
| Mains Input | Rated Voltage | V/AC | 220 |
| Voltage Range | V/AC | 85~264 | |
| FREQ RANGE | HZ | 40~65 | |
| Efficiency(max) | % | ≥94 | |
| Power Factor | ≥0.99@220Vac,rated power | ||
| Current(MAX) | A | ≤16@220Vac | |
| Mains output | Rated Output Voltage | V/DC | 48 |
| MAX power | W | 1800 (1.8KW) | |
| Output voltage accuracy | V | ≤±1%Vo input 176Vac-264Vac,output 10%-100% load | |
| Auxiliary supply | Rated output voltage | V/DC | 13.8V |
| Nominal Current | A | 5A | |
| Property | Input over-voltage protection , Input under-voltage protection , Output Over-current protection , Output under-voltage protection , Output over-voltage protection , Over-temperature protection , Output short circuit protection | ||
| CAN Communication | Optional | ||
| Baud Rate | 125Kbps,250Kbps,500Kbps | ||
| Terminal Resistance | No | ||
|
Operating environment |
Withstand Voltage |
Input to Output:2000VAC≤10mA Input to Ground:2000VAC≤12mA
|
|
| Insulation Resistance | %RH | Input, output, signal terminal to casing≥10MΩ Testing Voltage 1000VDC | |
|
Electromagnetic Immunity Electromagnetic Abusive |
GB/T 18487.3-2001 | ||
| Cooling mode | Air cooled / Liquid Cooled for option | ||
| Others | Protecions |
Input over-voltage protection , Input under-voltage protection , Output Over-current protection , Output under-voltage protection , Output over-voltage protection , Over-temperature protection , Output short circuit protection |
|
| MTBF | Hours | 150000 | |
| IP Grade | IP67 | ||
| Structure | Weight | Kg | 3 |
Our charger suitable for electr bike, electric motorcycle, electric transport vehicle, electric scooter, electric golf cart, electric sweeper, electric f orklift, electric truck, electric bus etc...
Attention
In order to confirm if this charger is suitable for your battery pack,
please send the following details when send inquiry:
(1) battery type
(2) number of cells in series
(3) capacity of battery pack (AH)
(4) The maximum charge voltage
(5) AC input voltage
(6) with CAN or enable
(7) Air cooled or water cooled
