7. Cooling way: cooling itself
Type of the battery: LiFePO4
Lifespan: more than 15 years at 25℃
- Product Details
- {{item.text}}
Quick Details
-
Battery type:
-
Lifepo4/lithium Battery
-
Battery Size:
-
Customized Size
-
Voltage:
-
48V/51.2V
-
Capacity:
-
100ah ~ OEM
-
Warranty:
-
10YEARS
-
Battery cell:
-
3.2V Prismatic Battery Cell
-
Protection:
-
Built-in Smart BMS
-
Accept:
-
12V 24V 36V 48V 60V 72V 96V
Quick Details
-
Model Number:
-
48V 100Ah LiFePO4 Battery
-
Brand Name:
-
OEM / Eeyrnduy
-
Place of Origin:
-
Guangdong, China
-
Battery type:
-
Lifepo4/lithium Battery
-
Battery Size:
-
Customized Size
-
Voltage:
-
48V/51.2V
-
Capacity:
-
100ah ~ OEM
-
Warranty:
-
10YEARS
-
Battery cell:
-
3.2V Prismatic Battery Cell
-
Protection:
-
Built-in Smart BMS
-
Accept:
-
12V 24V 36V 48V 60V 72V 96V
Product Details
|
NOMINAL VOLTAGE
|
48V
|
|
NOMINAL CAPACITY
|
100AH
|
|
DISHARGE CURRENT
|
100A
|
|
CHARGING CURRENT
|
50A
|
|
SIZE
|
400*175*580mm
|
|
WEIGHT
|
52KG
|
|
Cycle life
|
6000
|
|
COOLING MODE
|
SELF—COOLING
|
|
RELATIVE TEMPERATURE
|
20%~95%RH
|
|
DEGREE OF PROTECTION
|
IP20
|
|
SERVICE LIFE
|
＞15YEAR@25℃
|
|
CHARGING TEMPERATURE
|
0~45℃
|
|
DISCHARGE TEMPERATURE
|
-20~60℃
|
|
STORAGE TEMPERATURE
|
-10~35℃，LESS THAN 6 MONTHS
|
|
COMMUNICATION MODE
|
RS485, CAN
|
Product Description
|
Brand
|
Eeyrnduy / OEM
|
|

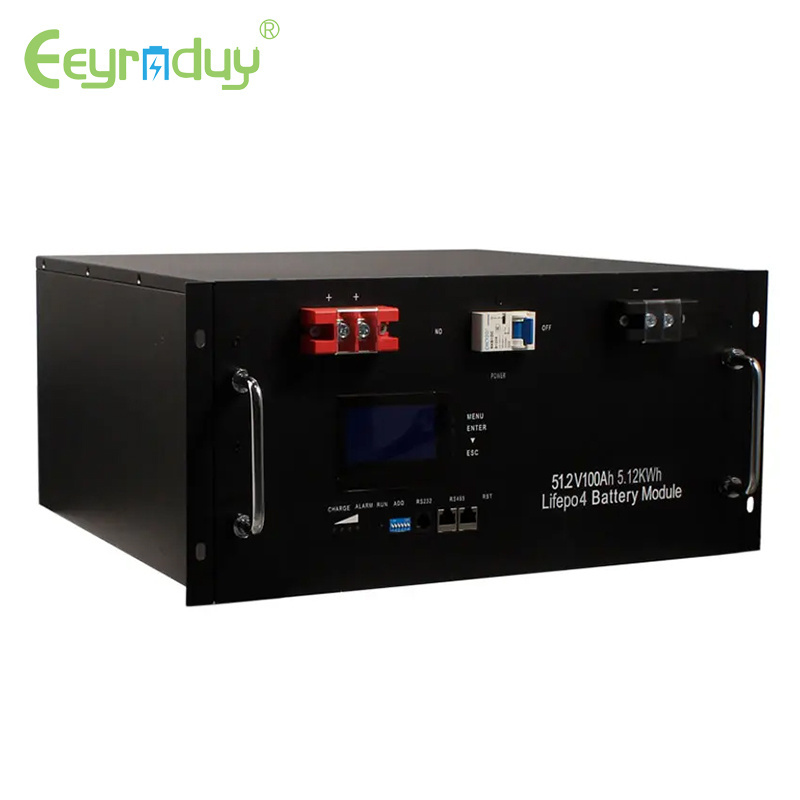

Model
|
51.2V 100Ah 5KWH
|
|
Maximum Charge Current
|
100A
|
|
Max Continuous Discharge Current
|
100A
|
|
Peak current
|
200A
|
|
Nominal Voltage
|
51.2V
|
|
Housing material
|
Metal housing
|
|
Cell and assembly method
|
16S1P
|
|
Weight
|
Approx 60Kg
|
|
Communication
|
RS485/CAN
|
|
Inverter dimension / Weight
|
602*403*139mm / 6KG
|
|
Chassia + Single battery dimension / Weight
|
602*403*200mm / 55KG (Without inverter ）
|
|
Chassis dimension
|
602*403*82mm
|
51.2V 200AH 10KWH
Mobile Stacked Home Energy Storage Batteries
1. Rated grip frequency: 50HZ/60HZ auto detection.
2. Rang of the grip voltage: 230/176 ~ 270.
3. PV max. input power: 4200W.
4. Rang of the MPPT voltage: DC 60-115V.
5. Charging and discharging efficiency of the overall unit: >92%
6. Battery's rang of the voltage: DC 40V~60V ± DC 0.6V (Undervoltage alarm / shutdown voltage / overvoltage alarm / overvoltage recovery... LCD screen settable)
|
Brand
|
Eeyrnduy / OEM
|
|
|
Model
|
51.2V 200Ah 10KWH
|
|
|
Size
|
621*403*200mm
|
|
|
Weight
|
Approx 115Kg
|
|
|
Continuous max. discharge current
|
100A
|
|
|
Peak max. discharge current
|
110A/10S
|
|
|
Standard charging current
|
50A
|
|
|
Fast chargeing current
|
100A
|
|
|
Type of the battery
|
LiFePO4
|
|
|
Cell and assembly method
|
16S1P*2 (2 units of 51.2V 100Ah in parallel）
|
|
|
Protection class
|
IP21
|
|
|
Cycle
|
More than 6K (25±2℃, 0.5C charging or discharging)
|
|
|
One battery pack is 100Ah (5KWh), Max. 80KWh
|
|
|
|
5KWH
|
48V/51.2V 100AH
|
|
|
10KWH
|
48V/51.2V 200AH
|
|
|
15KWH
|
48V/51.2V 300AH
|
|
|
20KWH
|
48V/51.2V 400AH
|
|
|
25KWH
|
48V/51.2V 500AH
|
|
Product Description
|
Nominal Voltage
|
51.2V
|
|
Energy
|
5120Wh
|
|
Nominal Capacity
|
100Ah
|
|
Charging Cut-off Voltage
|
57V
|
|
Standard Charging Current
|
20A
|
|
Max Charging Current
|
100A
|
|
Standard continue discharge current
|
20A
|
|
Max discharge current
|
100A
|
|
Discharging Temp Range(℃)
|
-10～55
|
|
Warranty
|
10 years
|
|
Communication interface
|
RS232/RS485*2
|
|
Series number
|
16S, 485 communication interface (parallel operation)
|
|
Case material
|
Metal
|
Support Customized
Our Services.
If you see our products and have questions about the products, please contact our account manager to send your specificneeds, such as voltage, capacity, shape, size, working current, etc. We can customize and meet your needs according to your needs. The best lithium battery matched by the equipment, we are very happy to provide you with test samples, and will reply you as soon as possible, thank you!
