Quick Details
-
Dimension(L*W*H):
-
435*92*165cm
-
Power (kW):
-
17.5
-
Weight (KG):
-
450 kg
-
Panel Feed Speed(m/min):
-
12m/min
-
Use:
-
Furniture manufacturing
-
Name:
-

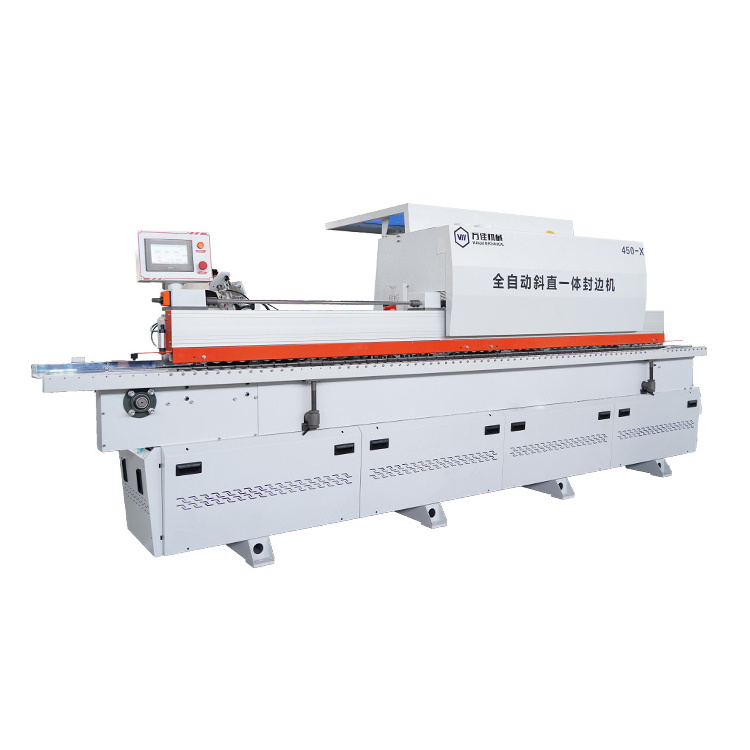

oblique straight edge banding machine
-
After-sales Service Provided:
-
Technical Online Service
-
Application:
-
Kitchen Cabinet Wooden Furniture
-
Keywords:
-
Woodworking Equipment
-
After Warranty Service:
-
Video Technical Support Online Support
-
Working methods:
-
Fully Automatic
-
Color:
-
Custormized
-
Control system:
-
Touch Screen
-
Feature:
-
Economic
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZDS
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
435*92*165cm
-
Power (kW):
-
17.5
-
Weight (KG):
-
450 kg
-
Panel Feed Speed(m/min):
-
12m/min
-
Use:
-
Furniture manufacturing
-
Name:
-
oblique straight edge banding machine
-
After-sales Service Provided:
-
Technical Online Service
-
Application:
-
Kitchen Cabinet Wooden Furniture
-
Keywords:
-
Woodworking Equipment
-
After Warranty Service:
-
Video Technical Support Online Support
-
Working methods:
-
Fully Automatic
-
Color:
-
Custormized
-
Control system:
-
Touch Screen
-
Feature:
-
Economic
Products Disply
Product Paramenters
|
Product size
|
435x92x165cm
|
|
|
|
Total power
|
17.5Kw
|
|
|
|
Power supply voltage
|
380V/three-phase five-wire 50Hz
|
|
|
|
Conveying motor
|
380V22Kw (frequency converter)
|
|
|
|
Air source pressure
|
0.6mpa-0.8mpa
|
|
|
|
Lifting motor
|
380V025Kw (inverter)
|
|
|
|
External suction port
|
diameter 100mm
|
|
|
|
Polishing motor
|
380V370W (2)
|
|
|
|
Touch screen
|
Xinjie industrial touch screen
|
|
|
|
Selection motor
|
A 380V 4kw
|
|
|
|
Inverter
|
Xinjie Industrial Inverter
|
|
|
|
Milling motor B
|
380V35Kw
|
|
|
|
Glue pot use temperature
|
150-170℃
|
|
|
|
Edge strip width
|
28mm
|
|
|
|
The thickness of the edge banding
|
1.2mm (related to the material of the edge banding)
|
|
|
|
Air storage tank volume
|
5L
|
|
|
|
Trimming motor
|
380V0.75Kwx2
|
|
|
|
Qi head motor
|
380V0.37Kwx2
|
|
|
|
Sheet width
|
>100mm
|
|
|
|
Sheet length
|
>250mm
|
|
|
|
Type of edge banding
|
PVC
|
|
|
|
Glue pot heating
|
1.2KW
|
|
|
|
Heat gun
|
2KW
|
|
|
|
Edge motor
|
380V0.18KW (inverter)
|
|
|
|
Polishing motor
|
380V0.37KWX2
|
|
|
|
Slotted motor
|
220V0.8KW
|
|
|
|
Edge banding sheet thickness
|
18/22/25MM
|
|
|
|
Edge speed
|
0-12M/MIN (variable speed) (inclined straight edge)
|
|
|
|
Edge strip width
|
20-50MM
|
|
|
|
Glue pot capacity
|
2000ML
|
|
|
