Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZNEP
-
Model Number:
-
ZD-F200Q/260Q/350Q/450Q/550Q
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
15500 * 9500 * 2500 mm
-
Weight:
-
22000 KG
-
Product name:
-

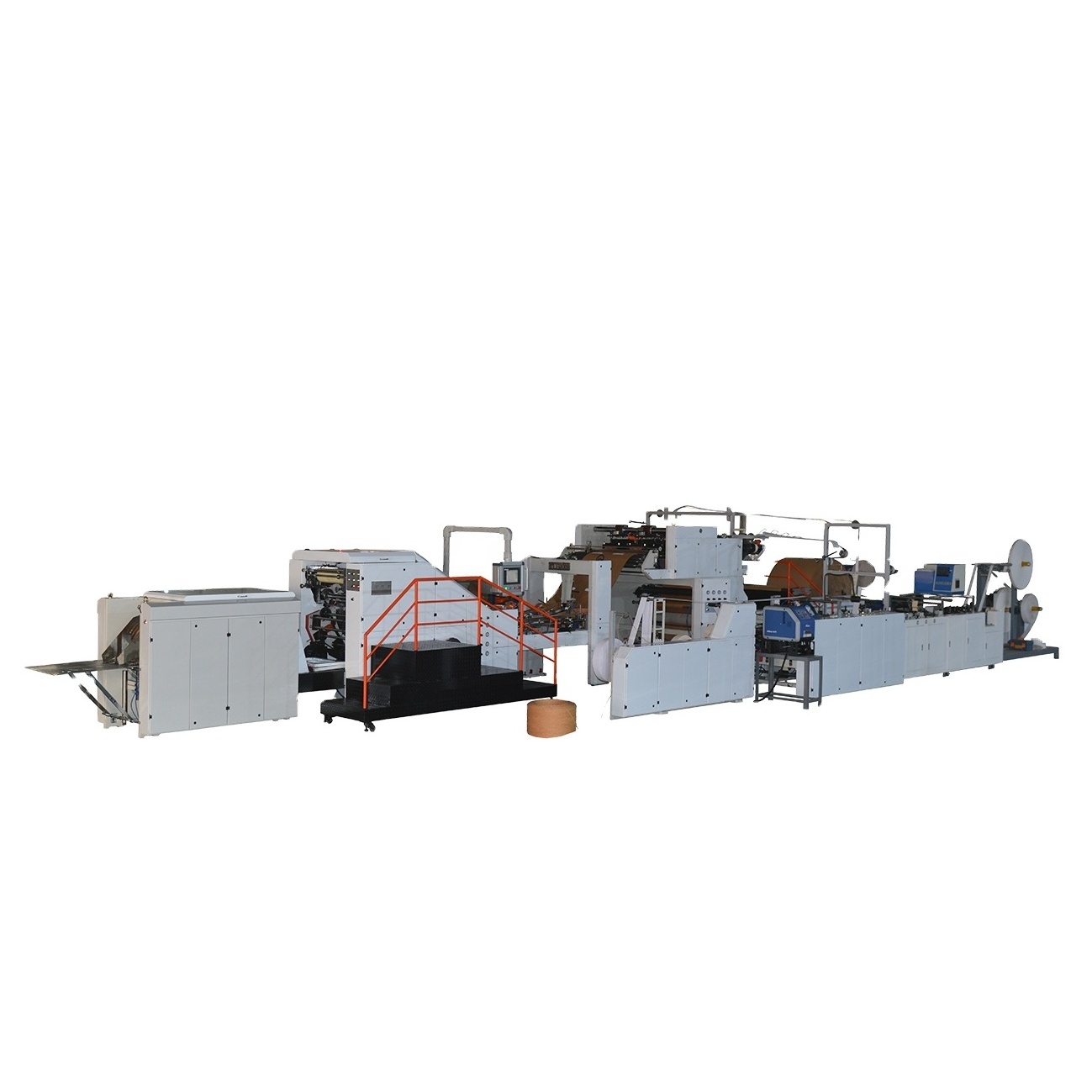

Fully Automatic paper Bag Making Machine
-
After Warranty Service:
-
Spare parts
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Paper
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZNEP
-
Model Number:
-
ZD-F200Q/260Q/350Q/450Q/550Q
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
15500 * 9500 * 2500 mm
-
Weight:
-
22000 KG
-
Product name:
-
Fully Automatic paper Bag Making Machine
-
After Warranty Service:
-
Spare parts
|
Model
|
ZD-F200Q
|
ZD-F260Q
|
ZD-F350Q
|
ZD-F450QX
|
ZD-450Q
|
ZD-550Q
|
|
Roll paper width
|
280-650mm
|
360-910mm
|
420-1090mm
|
650-1370mm
|
650-1330mm
|
670-1670mm
|
|
Paper roll dia
|
φ1500mm
|
φ1500mm
|
φ1500mm
|
φ1500mm
|
φ1500mm
|
φ1500mm
|
|
Roll core dia
|
φ76mm
|
φ76mm
|
φ76mm
|
φ76mm
|
φ76mm
|
φ76mm
|
|
Paper gram
|
50/65-150g/m2
|
50/65-150g/m2
|
60/80-150g/m2
|
70/80-150g/m2
|
80/90-150g/m2
|
80/90-150g/m2
|
|
Paper bag width
|
80/110-200mm
|
100/130-260mm
|
130/180-350mm
|
230-450mm
|
230-450mm
|
240-540mm
|
|
Cut off length
|
190-(370mm Include rope height)
|
260-(530mm Include rope height)
|
260-(530mm Include rope height)
|
280-(630mm Include rope height)
|
380-(78
0mm Include rope height) |
380-(77
0mm Include rope height) |
|
Gusset width
|
50-110mm
|
65-180mm
|
65-180mm
|
80-220mm
|
90-200mm
|
80-280mm
|
|
Handle height
|
70-100mm
|
70-100mm
|
90-120mm
|
90-120mm
|
90-120mm
|
90-120mm
|
|
Handle rope dia
|
φ2.5-4.5mm
|
φ3-5mm
|
φ3-5.5mm
|
φ3-6mm
|
φ3-6mm
|
φ4-6mm
|
|
Handle patch length
|
95mm
|
114mm
|
152mm
|
190mm
|
190mm
|
190mm
|
|
Handle patch width
|
42.5-50mm
|
42.5-50mm
|
42.5-50mm
|
42.5-50mm
|
42.5-50mm
|
42.5-50mm
|
|
Rope distance
|
47.5mm
|
57mm
|
76mm
|
95mm
|
95mm
|
95mm
|
|
Roll paper (patch) dia
|
φ1200mm
|
φ1200mm
|
φ1200mm
|
φ1200mm
|
φ1200mm
|
φ1200mm
|
|
Roll paper (patch) width
|
85-100mm
|
85-100mm
|
85-100mm
|
85-100mm
|
85-100mm
|
85-100mm
|
|
Handle patch gram
|
80-150g/m2
|
80-150g/m2
|
80-150g/m2
|
80-150g/m2
|
80-150g/m2
|
80-150g/m2
|
|
Max. production speed
|
100-150bags/min
|
100-150bags/min
|
100-150bags/min
|
100-140bags/min
|
90-130bags/min
|
80-130bags/min
|
|
Total power
|
30kW
|
30kW
|
30kW
|
30kW
|
30kW
|
30kW
|
|
Machine weight
|
15500KG
|
17500KG
|
18500KG
|
19500KG
|
20500KG
|
21500KG
|
|
Overall dimension
|
12500*5500*2500mm
|
13500*5600*2500mm
|
13500*5700*2500mm
|
14500*5800*2500mm
|
15000*6000*2500mm
|
15500*6200*2500mm
|
FAQ
Q: What types of machine do you have?
A: Automatic Square bottom and sharp bottom paper bag machine,automatic paper bag machine with rope or flat handles
series,automatic paper bag machine with printing inline,reel fed square bottom paper bag machine with window series,square bottom
paper bag machine with D cut series,flat bottom paper bag machine,etc.
Q: How long time for the machines guarantee?
A: Two years. The machines damage by nature, we will send spare part to you for free.
Q: How about machine testing?
A: You can visit us, we will test the machine with you together. If you can't come, we also can send videos of machine running to
you for your reference.
Q: How can I visit your company?
Our company is situated in Nanjing City,China .Closing to Shanghai and Ningbo port,3okm away from Nanjing Lukou Airport.Welcome to
visit our factory.
Q: How about your after-sales service?
A: Our engineer can be sent to your area for installing machine and training your workers.
A: Automatic Square bottom and sharp bottom paper bag machine,automatic paper bag machine with rope or flat handles
series,automatic paper bag machine with printing inline,reel fed square bottom paper bag machine with window series,square bottom
paper bag machine with D cut series,flat bottom paper bag machine,etc.
Q: How long time for the machines guarantee?
A: Two years. The machines damage by nature, we will send spare part to you for free.
Q: How about machine testing?
A: You can visit us, we will test the machine with you together. If you can't come, we also can send videos of machine running to
you for your reference.
Q: How can I visit your company?
Our company is situated in Nanjing City,China .Closing to Shanghai and Ningbo port,3okm away from Nanjing Lukou Airport.Welcome to
visit our factory.
Q: How about your after-sales service?
A: Our engineer can be sent to your area for installing machine and training your workers.
