Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
SYNTOP
-
Model Number:
-
Z5032C/1
-
Voltage:
-
As customer's requirement
-
Dimension(L*W*H):
-
1850*950*1000mm
-
Weight (KG):
-
500 KG
-
drilling capacity:
-
32mm
-
Spindle taper:
-
MT3
-
Spindle travel:
-
130mm
-
Step of spindle speed:
-
6
-
Range of spindle speed:
-
80-1250 r.p.m or 95-1500 r.p.m
-
Max.travel of headstock:
-
250mm
-
Max.travel of worktable bracket:
-
600mm
-
Worktable size of avaliablity:
-
417*416mm
-
LOGO Printing:
-
OEM Service
-
Power:
-
750
Quick Details
-
type:
-
Drilling Machine
-
Max. Drilling Dia. (mm):
-
32 mm
-
Range of Spindle Speed(r.p.m):
-
95 - 1500 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
SYNTOP
-
Model Number:
-
Z5032C/1
-
Voltage:
-
As customer's requirement
-
Dimension(L*W*H):
-
1850*950*1000mm
-
Weight (KG):
-
500 KG
-
drilling capacity:
-
32mm
-
Spindle taper:
-
MT3
-
Spindle travel:
-
130mm
-
Step of spindle speed:
-
6
-
Range of spindle speed:
-
80-1250 r.p.m or 95-1500 r.p.m
-
Max.travel of headstock:
-
250mm
-
Max.travel of worktable bracket:
-
600mm
-
Worktable size of avaliablity:
-
417*416mm
-
LOGO Printing:
-
OEM Service
-
Power:
-
750

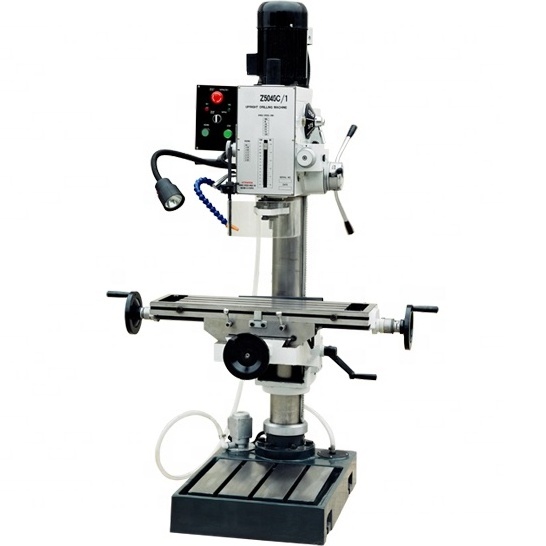

Product Description
Features
Milling, drilling and tapping.
Spindle speed step-changed cyclically,spindle auto-feeding and cyclic change of feeding speed.
Head swivels 360° horizontally.
Headstock and worktable up & down perpendicularly.
Super high column.
Precision micro feed.
Positive spindle lock.
Distinct auto device for releasing tools,operate very easily.
Gear driven,lower noise.
|
Specifications for Z5032C/1
|
|
|
|
Max.Drilling Capacity
|
32mm
|
|
|
Spindle taper
|
M.T.3 or R8
|
|
|
spindle trave
|
130mm
|
|
|
Step of spindle speed
|
6
|
|
|
Range of spindle speed 50Hz/60Hz
|
80-1250 r.p.m/95-1500 r.p.m
|
|
|
Step of spindle auto-feeding
|
6
|
|
|
Range of spindle auto-feeding amount
|
0.06-0.30mm/r
|
|
|
Min.distance from spindle axis to column
|
290mm
|
|
|
Max.distance from spindle nose to worktable
|
700mm
|
|
|
Max.distance from spindle nose to stand table
|
1125mm
|
|
|
Max.travel of headstock
|
250mm
|
|
|
Swivel angle of headstock(horizontal/perpendicular)
|
360°
|
|
|
Max.travel of worktable bracket
|
600mm
|
|
|
Worktable size of avaliablity
|
730*210mm
|
|
|
Swivel angle of table horizontally
|
360°
|
|
|
Size of stand worktable of avaliability
|
417×416mm
|
|
|
Worktable travel(X/Y)
|
500mm/205mm
|
|
|
Vertical travel of worktable
|
570mm
|
|
|
Motor Power
|
0.75KW
|
|
|
Voltage/Frequency
|
As customer's requirement
|
|
|
speed of motor
|
1400 r.p.m
|
|
|
Net weight/Gross weight
|
437kg/500kg
|
|
|
Packing size
|
1850×950×1000mm
|
|
