Quick Details
-
Material:
-
Steel
-
Voltage:
-
12/24VDC
-
Feature:
-
Easy Installation Easy Management
-
Keyword:
-
Electric Magnetic Door Lock
-
Usage:
-
Electrical Appliances
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Landa
-
Product Name:
-
12 volts magnetic lock for door latching
-
Material:
-
Steel
-
Voltage:
-
12/24VDC
-
Feature:
-
Easy Installation Easy Management
-
Keyword:
-
Electric Magnetic Door Lock
-
Usage:
-
Electrical Appliances
12 Volts Dc 24v Round Magnetic Lock for Door Latching
| Specifications | |||
| Brand | Landa | Product Name | Round magnetic lock |
| Model | H5726 | Rated Voltage | DC 12v/24v |
| Power | 2-4w | Force | 450N |
| Waterproof Class | IP65 | Duty Cycle | 100% |
| Cable Length | 200mm | Material | Metal, Electronic Parts |
| Action Form | Holding type | Weight(N.W.) | 0.8kg |
| Install Style | Screw | Thread Size & Deepth(mm) | - |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Insulation Class | B |
| Packaging Details | |||
| Body Size | D57*H26(mm) | Carton Box Size(Standard) | 350*310*180(mm), accepted custom |

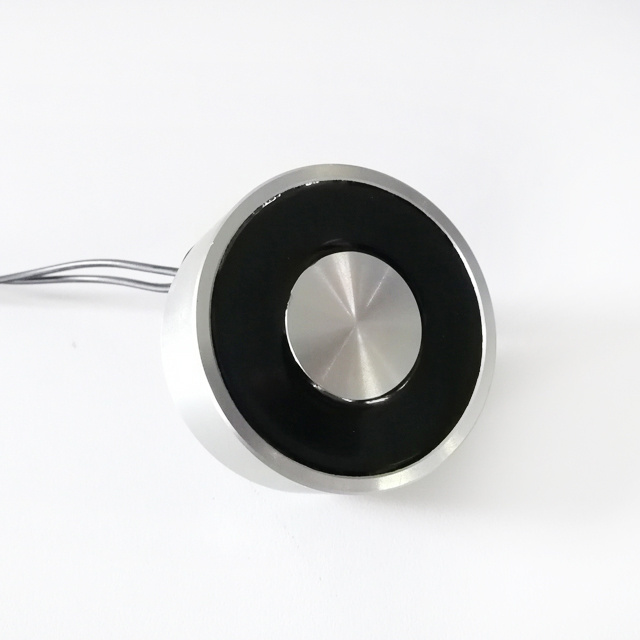

Mini round electromagnetic door lock
1.Holding type, round shape, mini size, ip65 waterproof, DC electromagnet, 12v 24v standard voltage, accepted custom
2.The mini round electromagnet need to be energised to develop suction force and deenergised release, widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.
3.Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.
4.Also offer custom shape and supply power on release mini dc electromagnet.
