Quick Details
-
Surface Roughness(μm):
-
0.32
-
Grinding Length(mm):
-
500
-
Max. Weight of Workpiece(kg):
-
50
-
Center Height (mm):
-
135
-
Wheel Size(mm):
-
400x50x203
-
Wheel Speed (rpm):
-
1670
-
Roundness(mm):
-
0.0015
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UNI-TECH
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2500x1600x1700mm
-
Weight (KG):
-
2300
-
Power (kW):
-
4
-
Product name:
-
cnc cylindrical grinding machine
-
Max grinding diameter:
-
200mm
-
Max grinding length:
-
500mm
-
Max. workpiece weight:
-
50kg
-
Grinding spindle speeds:
-
1670rpm
-
out disc diameter:
-
400x50x203mm
-
Max grinding depth:
-
125mm
-
Headstock taper:
-
MT4
-
tailstock taper:
-
MT4
-
Chuck diameter:
-
200MM
Quick Details
-
Grinding Diameter(Outer)(mm):
-
200
-
Grinding Diameter(Inner)(mm):
-
90
-
Max. Length of Workpiece (mm):
-
500
-
Surface Roughness(μm):
-
0.32
-
Grinding Length(mm):
-
500
-
Max. Weight of Workpiece(kg):
-
50
-
Center Height (mm):
-
135
-
Wheel Size(mm):
-
400x50x203
-
Wheel Speed (rpm):
-
1670
-
Roundness(mm):
-
0.0015
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UNI-TECH
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2500x1600x1700mm
-
Weight (KG):
-
2300
-
Power (kW):
-
4
-
Product name:
-
cnc cylindrical grinding machine
-
Max grinding diameter:
-
200mm
-
Max grinding length:
-
500mm
-
Max. workpiece weight:
-
50kg
-
Grinding spindle speeds:
-
1670rpm
-
out disc diameter:
-
400x50x203mm
-
Max grinding depth:
-
125mm
-
Headstock taper:
-
MT4
-
tailstock taper:
-
MT4
-
Chuck diameter:
-
200MM

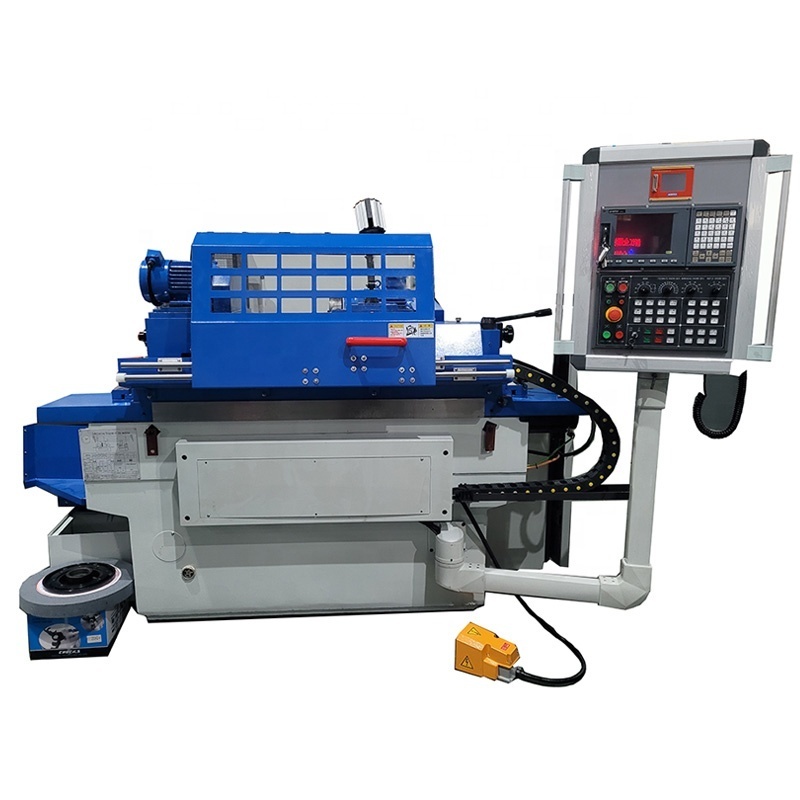

cnc cylindrical grinder cnc universal cylindrical grinding machine
| MKE1420x500 | MKE1420x800 | MKE1432x1000 | MKE1432x1500 | |
| Height of center mm | 135 | 135 | 180 | 180 |
| Max grinding diameter(without steady rest) mm | 200 | 200 | 320 | 320 |
| Max grinding diameter(with steady rest) mm | 60 | 60 | 60 | 60 |
| Min grinding diameter mm | 8 | 8 | 8 | 8 |
| Max grinding length mm | 500 | 800 | 1000 | 1500 |
| internal grinding diameter range(with steady diameter) mm | 10-90 | 10-90 | 35-100 | 35-100 |
| internal grinding diameter range (without steady rest) mm | 13-100 | 13-100 | 30-100 | 30-100 |
| Max grinding depth mm | 125 | 125 | 125 | 125 |
| Headstock taper | MT4 | MT4 | MT4 | MT4 |
| Max. workpiece weight kg | 50 | 50 | 150 | 150 |
| tailstock taper | MT4 | MT4 | MT4 | MT4 |
| Tailstock spindle stroke | 28 | 28 | 28 | 28 |
| Min grinding wheel feed mm | 0.001 | 0.001 | 0.001 | 0.001 |
| Headstock swivel range | ±30° | ±30° | ±30° | ±30° |
| Grinding spindle speeds rpm | 1670 | 1670 | 1670 | 1670 |
| Chuck diameter mm | 200 | 200 | 200 | 200 |
| Worktable swivel range | -5°~+9° | -3°~+7° | -3°~+7° | -3°~+6° |
| Table feed m/min | 0.05-5 | 0.05-5 | 0.05-5 | 0.05-5 |
| out disc diameter mm |
400x50x203
280x50x203(min) |
400x50x203
280x50x203(min) |
400x50x203
280x50x203(min) |
400x50x203
280x50x203(min) |
| Circumferential speeds m/sec | 35 | 35 | 35 | 35 |
| Work spindle speeds rpm | 25-380 | 25-380 | 25-380 | 25-380 |
| Grinding head trvel mm | 200 | 200 | 246 | 246 |
| Feed per hand-wheel rotation on wheelhead mm | 0.1mm | 0.1mm | 0.1mm | 0.1mm |
| Travers per graduation on wheelhead mm | 0.001mm | 0.001mm | 0.001mm | 0.001mm |
| Max. angle of table swivel | -5°~+9° | -3°~+7° | -3°~+7° | -3°~+6° |
| Max. inner disc diameter mm | 50*40*16 | 50*40*16 | 50*40*16 | 50*40*16 |
| Min. inner disc diameter mm | 45*35*10 | 45*35*10 | 45*35*10 | 45*35*10 |
| total drive capacity KW | 12.6 | 12.6 | 17 | 17 |
| Motor rating-grinding spindle/hydraulic pump KW | 4/0.75 | 4/0.75 | 5.5/0.75 | 5.5/0.75 |
| Motor rating of headstock /coolant pump KW | 0.75/0.13 | 0.75/0.13 | 1.5/0.13 | 1.5/0.13 |
| Motor rating of grinding head moving KW | 10Nm | 10Nm | 15Nm | 15Nm |
| Motor rating of worktable moving KW | 10Nm | 10Nm | 15Nm | 15Nm |
| diamensions (LxWxH) mm | 2500x1600x1700 | 3100x1600x1700 | 3400x2000x2000 | 4300x2000x2000 |
| weight kg | 2300 | 2700 | 3700 | 4300 |
Standard accessory:
Complete set of electric epuipment
Complete set of coolant epuipment
Grinding wheel peripheral dresser
Wheel hub
Wheel balancing mandrel
3-jaw chuck
Open-type steady-rest
Leveling wedge
Close-type steady- rest
Wheel balancing stand
OPTIONAL:
NR12 standard
Customized services
We accept customized services around the world
Afer-sale services
If you are interested in cnc cylindrical grinding machine , pls contact me
