Quick Details
-
Table Travel (Y) (mm):
-
680 mm
-
Dimension(L*W*H):
-
2200*2350*2450
-
Weight (T):
-
5.2 T
-
Table Travel (Z) (mm):
-
650 mm
-
Range of Spindle Speed(r.p.m):
-
1 - 6000 r.p.m
-
Spindle Motor Power(kW):
-
7.5Kw
-
Max. Table Load(kg):
-
600 kg
-
Feed Speed(mm/min):
-
1 - 12000 mm/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HHK
-
Voltage:
-
15kw
-
Marketing Type:
-
New Product 2023
-
Product name:
-
3-axis Vertical Cnc Machining Center
-
Application:
-
General Machinery Processing
-
Product type:
-
Cnc 3 Axis Machine
-
Precision:
-
High Precision Machining Center
-
Machine Type:
-
Vertical CNC Milling Machine
-
Keywords:
-
Vmc Machine Center
-
Processing:
-
Metal Cutting Cnc Milling Machine
-
CNC or Not:
-
CNC
-
Name:
-
Vertical Machine Center CNC Machine
-
Function:
-
Machining Metal
Quick Details
-
Table Size (mm):
-
1000*500
-
Number of Axes:
-
5
-
Table Travel (X) (mm):
-
740 mm
-
Table Travel (Y) (mm):
-
680 mm
-
Dimension(L*W*H):
-
2200*2350*2450
-
Weight (T):
-
5.2 T
-
Table Travel (Z) (mm):
-
650 mm
-
Range of Spindle Speed(r.p.m):
-
1 - 6000 r.p.m
-
Spindle Motor Power(kW):
-
7.5Kw
-
Max. Table Load(kg):
-
600 kg
-
Feed Speed(mm/min):
-
1 - 12000 mm/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HHK
-
Voltage:
-
15kw
-
Marketing Type:
-
New Product 2023
-
Product name:
-
3-axis Vertical Cnc Machining Center
-
Application:
-
General Machinery Processing
-
Product type:
-
Cnc 3 Axis Machine
-
Precision:
-
High Precision Machining Center
-
Machine Type:
-
Vertical CNC Milling Machine
-
Keywords:
-
Vmc Machine Center
-
Processing:
-
Metal Cutting Cnc Milling Machine
-
CNC or Not:
-
CNC
-
Name:
-
Vertical Machine Center CNC Machine
-
Function:
-
Machining Metal
Products Description

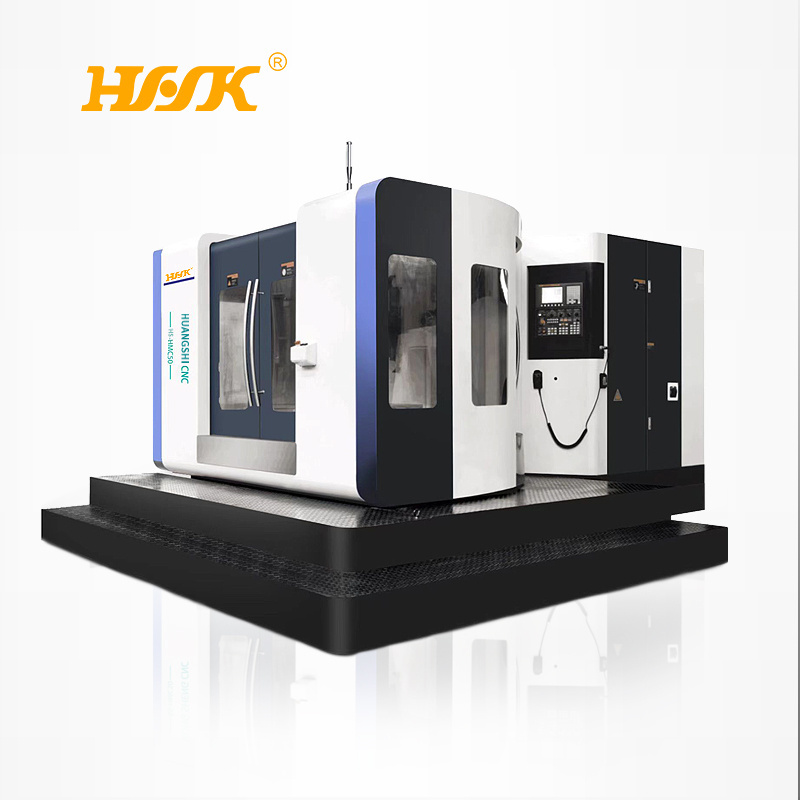

Details Images
Technical parameter
|
name
|
unit
|
RS-HMC50
|
RS-HMC63
|
RS-HMC80
|
||
|
X-axis stroke
|
mm
|
740
|
1050
|
1300
|
||
|
Y-axis stroke
|
mm
|
680
|
750
|
1000
|
||
|
Z-axis stroke
|
mm
|
650
|
900
|
1000
|
||
|
Working Table size
|
mm
|
500*600
|
630*700
|
800*800
|
||
|
Number of switching tables
|
|
1
|
1
|
1
|
||
|
Table rotary indexing
|
|
1°*360/0.001°
|
1°*360/0.001°
|
1°*360/0.001°
|
||
|
Table bearing
|
kg
|
600
|
950
|
1500
|
||
|
Table T-slot specifications
|
|
24*M16Threaded hole
|
24*M16Threaded hole
|
24*M16Threaded hole
|
||
|
Distance from table to spindle nose
|
mm
|
120-800
|
120-870
|
120-1120
|
||
|
Distance from spindle center to column guide rail surface
|
mm
|
130-780
|
130-1030
|
120-1120
|
||
|
Spindle taper hole specification
|
|
Bt50
|
Bt50
|
Bt50
|
||
|
Spindle speed
|
rpm/min
|
6000
|
6000
|
6000
|
||
|
Spindle motor rate
|
kw
|
15(β15)
|
18.5(IP30)
|
DN18.5(IP30)
|
||
|
Triaxial motor rate (Mitsubishi)
|
kw
|
3/3/3
|
4.5/4.5/4.5
|
4.5/4.5/4.5
|
||
|
Triaxial motor rate (FANUC)
|
|
β30/β30/β30
|
β30/β30/β40
|
β30/β30/β40
|
||
|
Three axis rapid displacement
|
m/min
|
24
|
24
|
24
|
||
|
Triaxial cutting feed rate
|
mm/min
|
1-12000
|
1-12000
|
1-12000
|
||
|
Positioning accuracy
|
mm
|
±0.005/300
|
±0.005/300
|
±0.005/300
|
||
|
Repetition accuracy
|
mm
|
±0.003
|
±0.003
|
±0.003
|
||
|
Tool change type
|
|
Disk/chain
|
Disk/chain
|
Disk/chain
|
||
|
Tool storage capacity
|
pcs
|
24/30/40
|
24/30/40
|
24/30/40
|
||
|
Power demand
|
KVA
|
30
|
36
|
38
|
||
|
Barometric demand
|
kg/cm2
|
≥6
|
≥6
|
≥6
|
||
|
Machine weight
|
kg
|
9000
|
10000
|
15000
|
||
|
Floor area (l*w*h)
|
mm
|
3000*2600
|
3500*2900
|
4500*3500
|
||
|
controller
|
|
Mitsubishi/FANUC
|
|
|
||
