Quick Details
-
Type:
-
static eliminate air ion bar with generator
-
Power:
-
20W
-
Ion emission:
-
Power frequency AC
-
Emitter electrode:
-
SUS
-
Discharge structure:
-
Resistance coupling
-
Discharge range:
-
without air source
-
Installation distance:
-
with air source:100 to 600mm
-
Payment term:
-
T.T Paypal WESTUNION
-
Delivery time:
-
5-7 Days
-
Power supply:
-
AP-AY1506/2506/1504/2504
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
AP&T
-
Model Number:
-
AP-AB1123
-
Type:
-
static eliminate air ion bar with generator
-
Power:
-
20W
-
Ion emission:
-
Power frequency AC
-
Emitter electrode:
-
SUS
-
Discharge structure:
-
Resistance coupling
-
Discharge range:
-
without air source
-
Installation distance:
-
with air source:100 to 600mm
-
Payment term:
-
T.T Paypal WESTUNION
-
Delivery time:
-
5-7 Days
-
Power supply:
-
AP-AY1506/2506/1504/2504

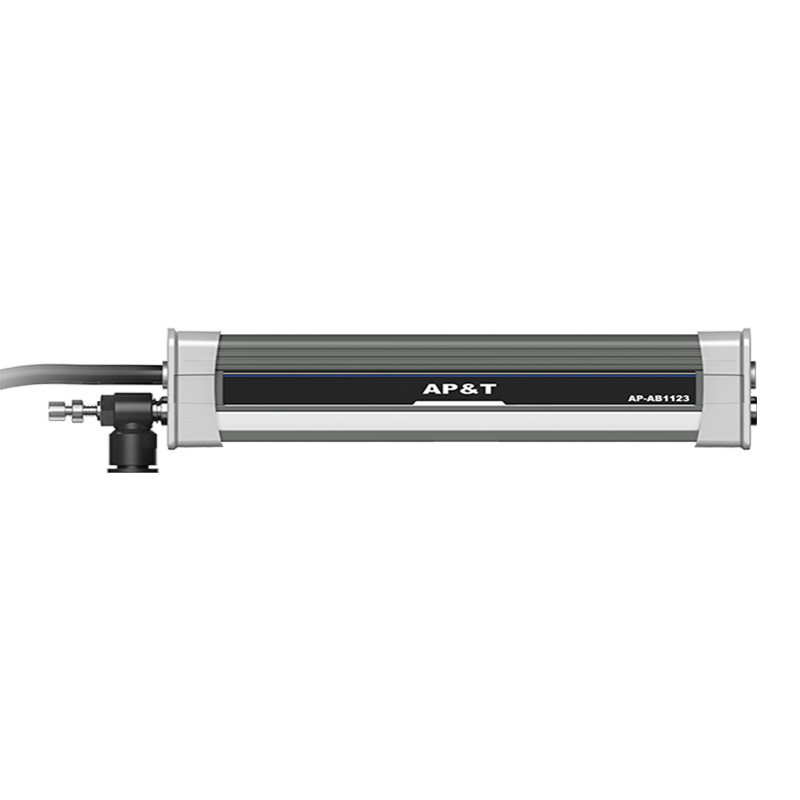

AP-AB1123-2 esd antistatic static eliminate air ion bar with generator
|
Model |
AP-AB1123 |
|
Working voltage |
one bar length < 1m or two bars length < 1m : AC5600V one bar length ≥ 1m or two bars length ≥ 1m : AC7000V |
|
Power |
20W |
|
Ion emission |
Power frequency AC |
|
Emitter electrode |
SUS |
|
Discharge structure |
Resistance coupling |
|
Discharge range |
without air source :( 150mm→3000mm ) *300mm*100mm |
|
with air source :( 150mm→3000mm ) *300mm*600mm |
|
|
Installation distance |
without air source : 30→100mm |
|
with air source : 100→600mm |
|
|
Ion balance |
≤|±30V| ( AVG ) |
|
Discharge speed |
without air source : ≤1.0S (Test distance 300mm) |
|
with air source : ≤2.0S (Test distance 300mm) |
|
|
Compressed air connector |
Φ8-G1/8 Black |
|
Compressed air requirement |
Clean dry air |
|
Working temperature |
0℃ - 45℃ |
|
Working humidity |
< 70% |
|
Dimensions |
( 150mm→3000mm ) *31.2mm*46.5mm |
|
Bar material |
Flame retardant PVC, SUS |
|
Packaging accessories |
M5-12*12*4 square mounting nuts |
|
Power supply |
AP-AY1506 : one bar length < 1m ; AP-AY2506 : two bars length < 1m AP-AY1504 : one bar length ≥ 1m ; AP-AY2504 : two bars length ≥ 1m |
|
Power cord |
2.5m (Can be customized according to requirements, Max size is 10m) |
|
Warranty |
1 year |
|
Certification |
CE |
