1. The filling machine can choose the stepper motor or servo motor by itself (the servo motor torque is larger, the speed is high, the control precision is high, and the filling speed is 30% faster than the stepping motor)
2. The hopper can be made of ordinary stainless steel hopper, semi-transparent hopper, quick open hopper (standard type is
ordinary stainless steel hopper)
3. Automatic feeding machine can be purchased, equipped with automatic feeding machine to realize automatic feeding and material position control (200 grams must be equipped with automatic feeding machine to ensure filling accuracy)
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
≤ ±1%
-
Voltage:
-
380V 50Hz
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MEST
-
Dimension(L*W*H):
-
800*800*1960mm
-
Weight:
-
200 KG
-
Product name:
-
Semi-Automatic Auger Powder Filler Machine
-
Function:
-
coffee powder packing machine
-
Measurement Method:
-
Auger Filler
-
Entrance Height:
-
1600 mm
-
Entrance Diameter:
-
150 mm
-
Nozzle Ground Clearance:
-
860 mm
-
Filling Speed:
-
0-50 fills/min
-
Contact Materials:
-
Food Grade SUS304 Stainless Steel
-
Hopper Volume:
-
50L
Quick Details
-
Machinery Capacity:
-
4000BPH, 2000BPH, 1000BPH
-
Packaging Material:
-
Plastic, Metal, Glass
-
Filling Material:
-
Powder
-
Filling Accuracy:
-
≤ ±1%
-
Voltage:
-
380V 50Hz
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MEST
-
Dimension(L*W*H):
-
800*800*1960mm
-
Weight:
-
200 KG
-
Product name:
-
Semi-Automatic Auger Powder Filler Machine
-
Function:
-
coffee powder packing machine
-
Measurement Method:
-
Auger Filler
-
Entrance Height:
-
1600 mm
-
Entrance Diameter:
-
150 mm
-
Nozzle Ground Clearance:
-
860 mm
-
Filling Speed:
-
0-50 fills/min
-
Contact Materials:
-
Food Grade SUS304 Stainless Steel
-
Hopper Volume:
-
50L

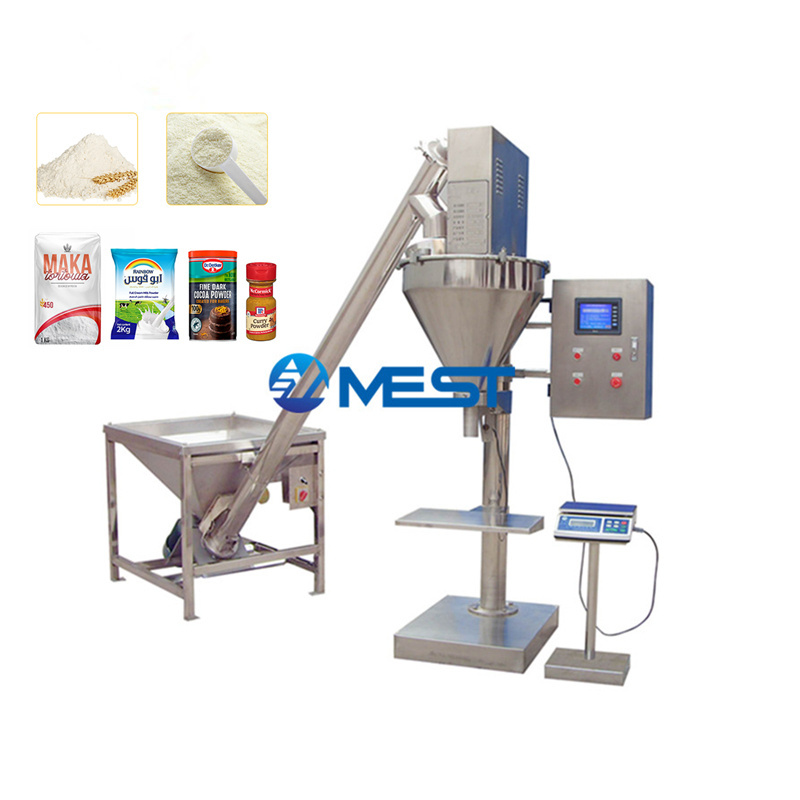

Automatic filling 500g 1kg 2kg 5kg flour milk coffee spice powder small sachet bottle weigh packing machine
Product Description
Automatic filling 500g 1kg 2kg 5kg flour milk coffee spice powder small sachet bottle weigh packing machine
Machine Introduction:
powder filling packaging machine adopts the combination of screw filling and electronic weighing feed back,Microcomputer control,It has the function of automatic ration, automatic filling, automatic correction error,counting and cleaning.
Applicable to all kinds of powder and mixed powder-like material weighing filling, such as: fertilizers, additives, flour, milk powder, coffee powder, washing powder, solid drink, sugar, monosodium glutamate, condiments (such as spicy fresh),natural flavoring , enzymes, feed powder (powder, superfine powder), mixing quantitative powder-like material filling.
Machine Features:
1. Suitable for all kinds of bottles, cans and bags of quantitative filling. The containers is not restrict.
1. Suitable for all kinds of bottles, cans and bags of quantitative filling. The containers is not restrict.
2. All stainless steel construction. And the contacted materials are 304 stainless steel.
3. The filling motor is stepper motor or imported servo motor,
depending on the customer’s choice.
4. Photoelectric sensor control to fill materials, and pedal switch for filling is optional.
5.Feedback value is adjustable to meet a variety of requirements of precision.
6. The filling motor speed is adjustable to meet the requirements of various materials.
7. Alarm and automatic correcting error.
8. Filling weight is adjuatablt from 5 grams to 5000 grams. Please refer to the small-dose auger filling machine if your filling weight less than 5 grams.
9. Less land occupation.
10. Together with screw conveyor feeder to achieve automatic materials level control.
Optional device :
Specification
|
Model
|
MEST-F2
|
|
Measurement Range
|
5-5000g (Need different Augers and Auger Funnels)
|
|
Measurement Method
|
Auger Filler
|
|
Filled Error
|
≤ ±1%
|
|
Entrance Height
|
1600 mm
|
|
Entrance Diameter
|
150 mm
|
|
Nozzle Ground Clearance
|
860 mm
|
|
Filling Speed
|
0-50 fills/min
|
|
Contact Materials
|
Food Grade SUS304 Stainless Steel
|
|
HMI
|
LCD Touch Screen
|
|
Control System
|
PLC
|
|
Filling Motor
|
Stepper Motor
|
|
Monitorable Hopper
|
Yes
|
|
Easy Clean Hopper
|
Optional
|
|
Hopper Volume
|
50L
|
|
Fill Control
|
Timer based / Sensor based
|
|
Dimensions
|
800× 800×1960mm
|
|
Power
|
AC Three-Phase 380V 50Hz 1.5Kw
|
|
Machine Weight
|
200 kg
|
Details Images
Suitable For：
Packing & Delivery
1. Manner of Packing: Covered by plastic film, packaging in export wooden cases in container.
2. Delivery Time: 7-10 working days after payment.
2. Delivery Time: 7-10 working days after payment.
Related Products
Certifications
FAQ
1. Q: Are you trading company or manufacturer ?
A: We are manufacturer since 1995. You can also check this from Alibaba Certified Business Types.
2. Q: What’s the guarantee of the machine?
A: We have 2 year’s guarantee of the machine. We would like to send you new one since we have two years warranty. You also can buy from your market if more convenient. And we will take videos and pictures to teach you how to replace it. Engineers available to service machinery overseas. (You need to pay tickets, food, hotel and salary), but anyway it's up to you. But according to my experience, there's nearly no wearing parts.
3. Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. Or it is 10-20 days if the goods are not in stock, it is according to quantity.
4. Q: How to install the machine after we received the machine?
A: When you received the machine, just connect it with electric and air compressor then can run it. (It will cost a little more if you need our team to your place (you need to pay tickets, food, hotel and salary), but anyway it's up to you. We’ll test the machine and make sure the machine runs well before shipment. (We’ll send the testing video for your checking)
5. Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
A: We are manufacturer since 1995. You can also check this from Alibaba Certified Business Types.
2. Q: What’s the guarantee of the machine?
A: We have 2 year’s guarantee of the machine. We would like to send you new one since we have two years warranty. You also can buy from your market if more convenient. And we will take videos and pictures to teach you how to replace it. Engineers available to service machinery overseas. (You need to pay tickets, food, hotel and salary), but anyway it's up to you. But according to my experience, there's nearly no wearing parts.
3. Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. Or it is 10-20 days if the goods are not in stock, it is according to quantity.
4. Q: How to install the machine after we received the machine?
A: When you received the machine, just connect it with electric and air compressor then can run it. (It will cost a little more if you need our team to your place (you need to pay tickets, food, hotel and salary), but anyway it's up to you. We’ll test the machine and make sure the machine runs well before shipment. (We’ll send the testing video for your checking)
5. Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
