Drilling Speed:
-
0.04-3.2mm/r(16steps)
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TIMAC
-
Model Number:
-
RD310, RD313, RD410, RD413, RD516, RD620, RD825
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
1805x800x232mm
-
Power (kW):
-
3 kw
-
Weight (KG):
-
1600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Customizable
-
Max. drilling diameter:
-
80mm
-
Distance of spindle center to column:
-
500-2500mm
-
Spindle Speed Range:
-
16-1250rpm(16steps)
-
Spindle travel:
-
450mm
-
Clamping type:
-
Hydraulic
-
Worktable size:
-
800x1000mm
-
Certification:
-
CE ISO
-
Power:
-
7.5kw
Quick Details
-
type:
-
Pillar Drilling Machine
-
Max. Drilling Dia. (mm):
-
35
-
Range of Spindle Speed(r.p.m):
-
300 - 1000 r.p.m
-
Drilling Speed:
-
0.04-3.2mm/r(16steps)
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TIMAC
-
Model Number:
-
RD310, RD313, RD410, RD413, RD516, RD620, RD825
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
1805x800x232mm
-
Power (kW):
-
3 kw
-
Weight (KG):
-
1600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Customizable
-
Max. drilling diameter:
-
80mm
-
Distance of spindle center to column:
-
500-2500mm
-
Spindle Speed Range:
-
16-1250rpm(16steps)
-
Spindle travel:
-
450mm
-
Clamping type:
-
Hydraulic
-
Worktable size:
-
800x1000mm
-
Certification:
-
CE ISO
-
Power:
-
7.5kw

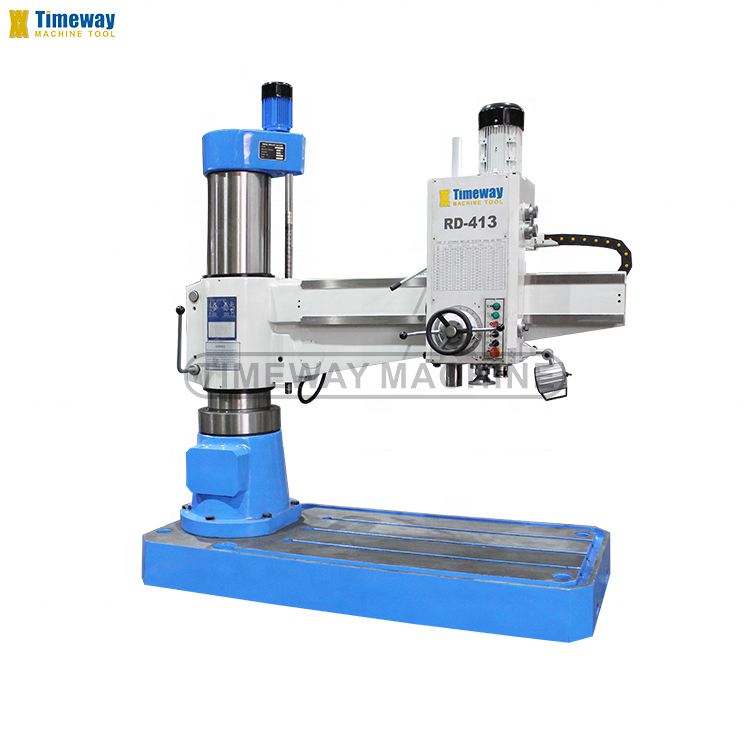

Large-type Hydraulic Rotary Arm Drilling Machine
RD310 RD313 RD410 RD413 RD516 RD620 RD825
Features:
- Base, column, boom and gear head are made of premium high-quality cast.
- Major design features include a large column and a highly torsion-resistant boom.
- Boom height adjustment via a powerful motorized drive and vertical spindle.
- The boom lifting gears run in an oil-bath for maximum reliability and minimum wear.
- Advanced column swivel design with optimized clamping features maximum rigidity and minimum clamping offset.
- Swivel axis and travel axis features extremely smooth operation to make the operator's everyday production work easier.
- The gears feature hardened and precision-ground chromenickel steel gears for smooth and low-noise operation.
- All gear parts are lubricated reliably via oil pump.
- The main spindle runs on precision bearings and features an automatic spindle brake.
Technical Parameter:
Medium and Small Type Driller
|
Specification |
Unit |
RD310 |
RD313 |
RD410 |
RD413 |
|
Max. drilling diameter |
mm |
35 |
35 |
40 |
40 |
|
Distance from spindle center to column surface |
mm |
300-1000 |
300-1300 |
300-1000 |
300-1300 |
|
Distance from spindle nose to worktable surface |
mm |
250-1020 |
320-1020 |
215-965 |
215-965 |
|
Spindle box horizontal travel |
mm |
700 |
1000 |
700 |
1000 |
|
Radial ram rotary angle |
deg |
±180° |
±180° |
±180° |
±180° |
|
Spindle taper |
- |
Morse No.4 |
Morse No.4 |
Morse No.4 |
Morse No.4 |
|
Spindle speed range and grades |
rpm |
50-2350(12 steps) |
50-2350(12 steps) |
50-1035(9 steps) |
50-1035(9 steps) |
|
Feed speed and grades |
mm/r |
0.13-0.54(4 steps) |
0.13-0.54(4 steps) |
0.13-0.54(4 steps) |
0.13-0.54(4 steps) |
|
Spindle travel |
mm |
250 |
250 |
250 |
250 |
|
Main motor power |
kw |
3 |
3 |
3 |
3 |
|
Net weight |
kg |
1600 |
1780 |
1600 |
1780 |
|
Floor area |
mm |
1050x650 |
1350x650 |
1050x650 |
1350x650 |
|
Worktable size |
mm |
450x450 |
450x450 |
450x450 |
450x450 |
|
Overall dimension |
mm |
1805x800x2320 |
2105x800x2320 |
1805x800x2320 |
2105x800x2320 |
Large Type Driller
|
Specification |
Unit |
RD516 |
RD620 |
RD825 |
|
Max. drilling diameter |
mm |
50 |
63 |
80 |
|
Distance from spindle center to column surface |
mm |
350-1600 |
450-2000 |
500-2500 |
|
Distance from spindle nose to worktable surface |
mm |
320-1220 |
400-1600 |
550-2000 |
|
Spindle box horizontal travel |
mm |
1250 |
1600 |
2000 |
|
Radial ram rotary angle |
deg |
±180° |
±180° |
±180° |
|
Spindle taper |
- |
Morse No.5 |
Morse No.5 |
Morse No.6 |
|
Spindle speed range and grades |
rpm |
25-2000(16steps) |
20-1600(16steps) |
16-1250(16steps) |
|
Feed speed and grades |
mm/r |
0.04-3.2(16steps) |
0.04-3.2(16steps) |
0.04-3.2(16steps) |
|
Spindle travel |
mm |
315 |
400 |
450 |
|
Main motor power |
kw |
4 |
5.5 |
7.5 |
|
Net weight |
kg |
3500 |
7000 |
11000 |
|
Floor area |
mm |
1590x840 |
2000x1080 |
2450x1160 |
|
Worktable size |
mm |
500x630 |
625x800 |
800x1000 |
|
Overall dimension |
mm |
2500x1070x2840 |
3080x1250x3400 |
3730x1400x4025 |
Standard Configuration :
• H ydraulic pre - selection speed and feed change mechanisms
• Hydraulic clamping for spindle head, radial arm and column
• Hardened and ground guideway & gears
• Box shape worktable
• H alogen work light
• C ool ant system
• Tool & tool box
• O perator manual in English
• 380V-50Hz-3Ph or as client ’ s request.
