Quick Details
-
Customized support:
-
#
-
Place of Origin:
-
China
-
Brand Name:
-
Nomosion
-
Model Number:
-
DCBNR/L
-
Color:
-
Ni or Black Coating
-
Material:
-
Hard Alloy, 42CrMo
-
Applicable inserts:
-
TGF32R/L
-
Shim Material:
-
YG8
-
Central Height Tolerance:
-
2MM
-
Torx screw:
-
M3.5*10
-
OEM&ODM:
-
YES
-
Feeler Gauge For Testing:
-
0.01mm
-
Certification:
-
#
Quick Details
-
Use:
-
External Turning Tool
-
Hardness:
-
HRC43-47
-
Coating:
-
#
-
Customized support:
-
#
-
Place of Origin:
-
China
-
Brand Name:
-
Nomosion
-
Model Number:
-
DCBNR/L
-
Color:
-
Ni or Black Coating
-
Material:
-
Hard Alloy, 42CrMo
-
Applicable inserts:
-
TGF32R/L
-
Shim Material:
-
YG8
-
Central Height Tolerance:
-
2MM
-
Torx screw:
-
M3.5*10
-
OEM&ODM:
-
YES
-
Feeler Gauge For Testing:
-
0.01mm
-
Certification:
-
#
Product Description

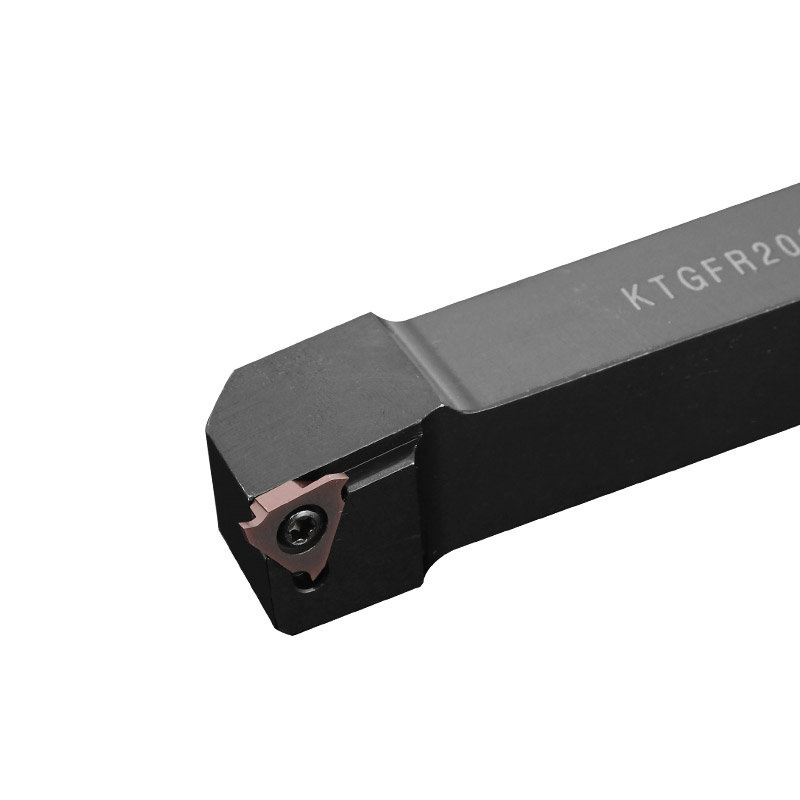

Tool Holder Description :
1: Can be used on cnc lathe machine and engine lathe .
2: Matched with CNC inserts with hole .
3:Spare part made of high quality steel , the hardness of screw is grade 12.9
4:Material 42CrMo and whole forging processing make the turning tool with long service life, better wear-resistantce,strength and
rigidity,high working efficiency.
5:Using 0.01mm feeler gauge to insure the tightly connection between the inserts and the tool .
6:Cooperate with NIHONG-TECHNO ,adopt advanced heat treatment equipment, make sure the uniformity of the hardness(HRC43-47)
7: Processed with high precision CNC machining centre.
1: Can be used on cnc lathe machine and engine lathe .
2: Matched with CNC inserts with hole .
3:Spare part made of high quality steel , the hardness of screw is grade 12.9
4:Material 42CrMo and whole forging processing make the turning tool with long service life, better wear-resistantce,strength and
rigidity,high working efficiency.
5:Using 0.01mm feeler gauge to insure the tightly connection between the inserts and the tool .
6:Cooperate with NIHONG-TECHNO ,adopt advanced heat treatment equipment, make sure the uniformity of the hardness(HRC43-47)
7: Processed with high precision CNC machining centre.
