Quick Details
-
Material:
-
Aluminum 6082-T6
-
Open size:
-
1165x1000x1154mm
-
folding size:
-
1165x1000x98mm
-
main tube:
-
50x50x3mm
-
support tube:
-
50x25x3mm
-
Weight:
-
25kg
-
Connection way:
-
Screw Connector
-
Color:
-
Silver Black
-
stand plate thick:
-
3mm
-
base plate thick:
-
4mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XY
-
Model Number:
-
/
-
Material:
-
Aluminum 6082-T6
-
Open size:
-
1165x1000x1154mm
-
folding size:
-
1165x1000x98mm
-
main tube:
-
50x50x3mm
-
support tube:
-
50x25x3mm
-
Weight:
-
25kg
-
Connection way:
-
Screw Connector
-
Color:
-
Silver Black
-
stand plate thick:
-
3mm
-
base plate thick:
-
4mm
|
Product Name
|
Folding Concert Aluminium Stage Construction Used Barriers Mojo Safety Barricade Crowd Control Barrier
|
Stage Barriers are used to cater for events and venues of any size or genre.
Combined with our specials such as corners, gates, and mega-exits, we can create any formation no matter how simple or complex the requirement.
All of our stage barrier products have been designed with economic transportation in mind and are lightweight and quick and easy to set up.

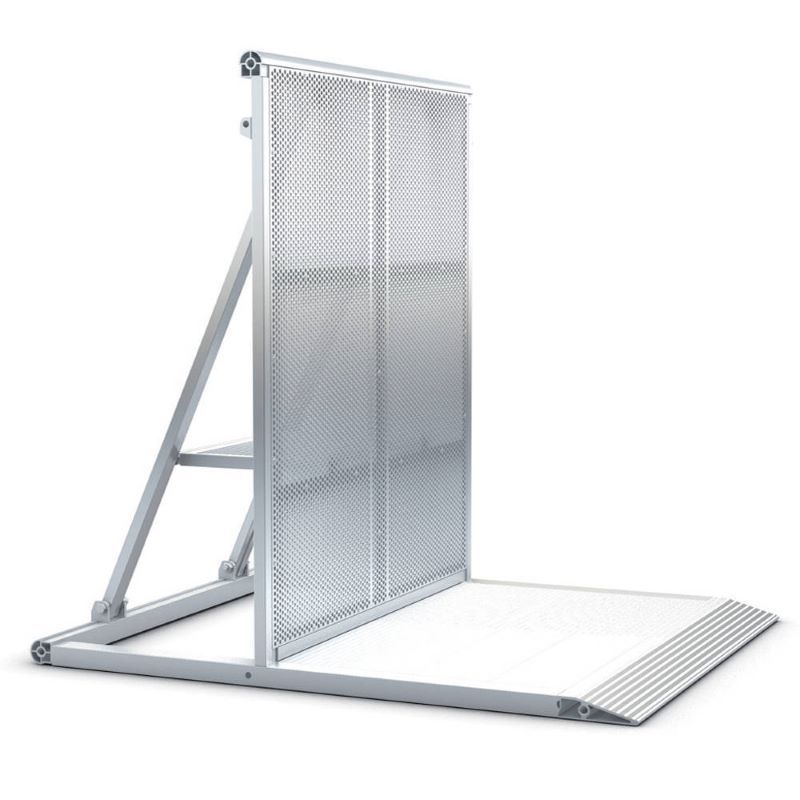

1. Straight barrier section
Stage barriers are based on a simple principle: a vertical barrier that locks into a horizontal floor plate with two braces at the
back.
Stage barriers are designed for quick setup by allowing a single bolt, quick connect to adjacent barriers. Once setup, the
barriers are designed to be secured in place by leveraging the audience’s weight on top of the floor plate.
* Rounded top rail allows audience comfort
* Top rail connects seamlessly, avoiding pinch points
* Specially designed tread plate prevents liquids from pooling
* Floor plates connect to form level surface, reducing trip hazard
* Rear step facilitates visual and physical access to the audience
* Solid A-frame welded aluminum construction
* Intelligent design enables handling without risk of trapped fingers
* Perforated upright secures to the floorplate and next section with only one bolt and fixed location pins
* Location pins fix and strengthen connections and enable barriers to negotiate uneven terrain
* open size 1265x1000x1154mmm
* folding size 12165x1000x98mm
* Weight 25 kg
* Also available with black upright
2. Vario & flex corners
VARIO CORNER
A middle hinged corner section with partial footplate and braces, the Vario allows barrier designs to be shaped in any angle
without compromising system strength. This section allows for creating a variable angle in a barrier line, ranging from -60° to
+60°. Ideal for use on secondary barricade lines.
SNAKE GATE
Wider than the snake runner, the snake gate is just that; a gate through which crew are able to feed cables during or after
installation or removal. The snake gate can also be used as regular gateway enabling crew to walk through with for example
flightcases. Its door width is 0.85 m and it is ideal for use in an area that doesn’t have too large crowd pressure, for instance,
camera platforms or mix positions.
