Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1500 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue Elephant
-
Weight (KG):
-
1100
-
Product name:
-

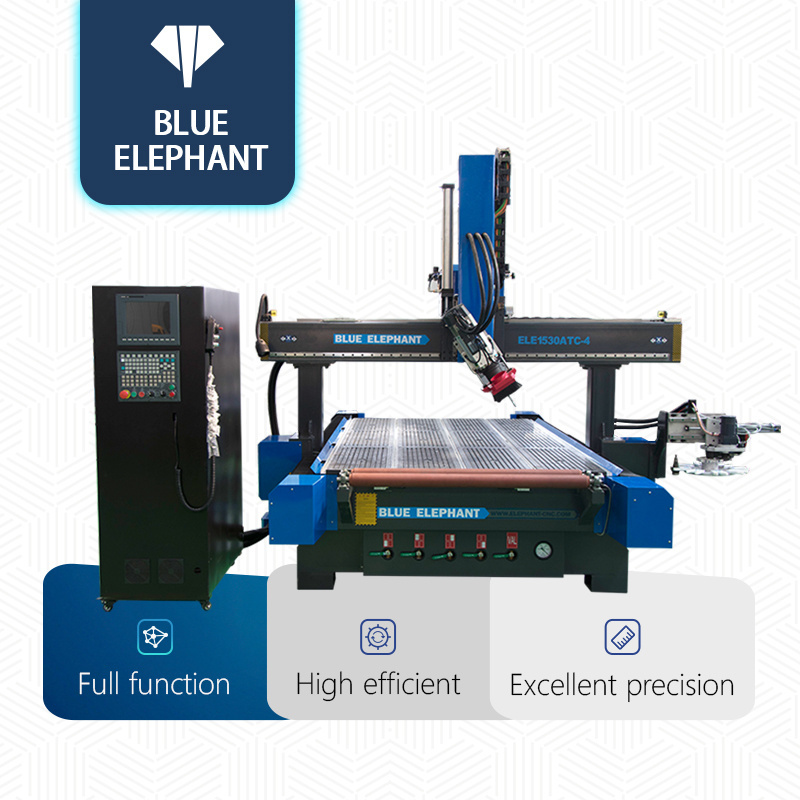

CNC Wood Working Machine
-
Application:
-
MDF WOOD ACRYLIC ALUMINUM
-
After-sales Service Provided:
-
Online Support
-
Keywords:
-
3d Wood Cutting Cnc Machine
-
Spindle:
-
Air Cooling Spindle
-
Name:
-
3d Wood Carving Cnc Machine
-
Control system:
-
Syntec
-
Inverter:
-
11kw Delta Inverter
Quick Details
-
Working Table Size(mm):
-
1500×3000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1500 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue Elephant
-
Weight (KG):
-
1100
-
Product name:
-
CNC Wood Working Machine
-
Application:
-
MDF WOOD ACRYLIC ALUMINUM
-
After-sales Service Provided:
-
Online Support
-
Keywords:
-
3d Wood Cutting Cnc Machine
-
Spindle:
-
Air Cooling Spindle
-
Name:
-
3d Wood Carving Cnc Machine
-
Control system:
-
Syntec
-
Inverter:
-
11kw Delta Inverter

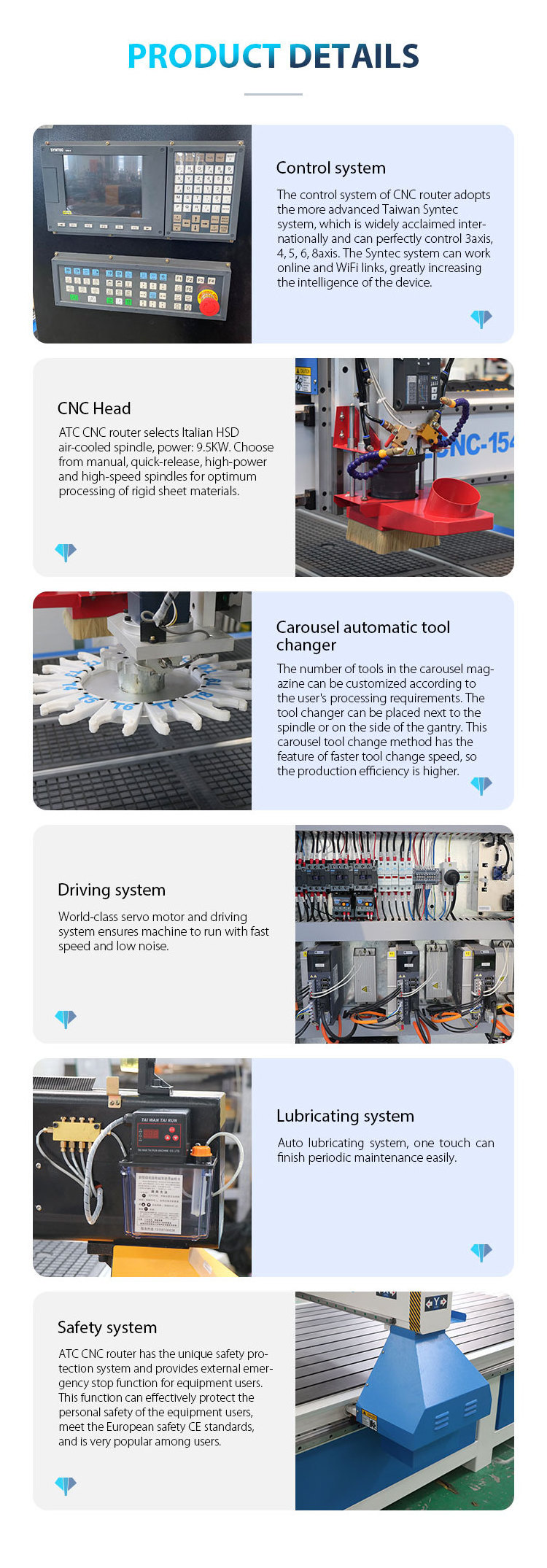

Product Description
Advantages:
* Jinan fast speed cnc router, equipped with round or carrousel type auto tool changer. This kind of Multi-use cnc cutting center (furniture cnc router for side punching) is not only very suitable for wooden furniture cabinet, but also processing foam mould. It can also finish side punching work for door hole, because that rotary spindle can rotate 180 degree.
* 2 pieces roller in the front of table is customized for customer, which make mdf or wood plate get through table conveniently.
* Jinan fast speed cnc router, equipped with round or carrousel type auto tool changer. This kind of Multi-use cnc cutting center (furniture cnc router for side punching) is not only very suitable for wooden furniture cabinet, but also processing foam mould. It can also finish side punching work for door hole, because that rotary spindle can rotate 180 degree.
* 2 pieces roller in the front of table is customized for customer, which make mdf or wood plate get through table conveniently.
Technical Parameters
|
X,Y,Z Working Area
|
1500x3000x400mm
|
|
Color
|
Black and Blue( Can Be Customized)
|
|
Working Voltage
|
380V/3PH/50Hz(Can Be Customized to Meet Different Country’s Requirement)
|
|
Tool magazine
|
Round or Carrousel type auto tool changer with 12 tools storage
|
|
Spindle
|
Rotary spindle, 9kw Italy HSD ATC air cooling spindle, Swing -90°to +90°
ISO30 tool holder
|
|
Spindle Speed
|
0-24000RPM
|
|
Inverter
|
11kw Taiwan DELTA inverter
|
|
Drive Motors
|
850wJapan YASKAWA servo motors and 1kw drivers
|
|
Command Language
|
G Code
|
|
Operating System
|
Taiwan SYNTEC 21MA 4 axis control System with handle
|
|
Computer Interface
|
USB
|
|
Collet
|
ISO30
|
|
Running Environment Temperature
|
0 – 45 Centigrade
|
|
Relative Humidity
|
30% – 75%
|
|
Lubrication system
|
Automatic lubrication system
|
|
Tool sensor
|
Automatic tool sensor calibration
|
|
Position cylinder
|
Auto Position cylinder
|
|
|
|
