- Product Details
- {{item.text}}
Quick Details
-
Power:
-
7.6KW/10.5kw
-
Place of Origin:
-
China
-
Brand Name:
-
Wemax
-
Maximum Digging Height:
-
1300mm
-
Maximum Digging Depth:
-
1600mm
-
Machine Weight:
-
950 kg
-
Max Digging Radius:
-
2900mm
-
Tractor horsepower:
-
18-66HP
-
Max. Digging depth:
-
1830-2745mm
-
Digging depth(2 feet flat bottom):
-
1676mm-2590mm
-
Loading height(bucket at 60°):
-
1270mm-2032mm
-
Max. transport height:
-
1245mm-2032mm
-
Bucket rotation:
-
180°
-
Stabilizer spread, down position:
-
1700mm-2565mm
-
Bucket cylinder digging force:
-
930kg-1360kg
-
Bucket width:
-
230mm-450mm
-
40''HC:
-
40pcs
Quick Details
-
Operating Weight:
-
930kg
-
Bucket capacity:
-
930kg
-
Engine Brand:
-
none
-
Power:
-
7.6KW/10.5kw
-
Place of Origin:
-
China
-
Brand Name:
-
Wemax
-
Maximum Digging Height:
-
1300mm
-
Maximum Digging Depth:
-
1600mm
-
Machine Weight:
-
950 kg
-
Max Digging Radius:
-
2900mm
-
Tractor horsepower:
-
18-66HP
-
Max. Digging depth:
-
1830-2745mm
-
Digging depth(2 feet flat bottom):
-
1676mm-2590mm
-
Loading height(bucket at 60°):
-
1270mm-2032mm
-
Max. transport height:
-
1245mm-2032mm
-
Bucket rotation:
-
180°
-
Stabilizer spread, down position:
-
1700mm-2565mm
-
Bucket cylinder digging force:
-
930kg-1360kg
-
Bucket width:
-
230mm-450mm
-
40''HC:
-
40pcs
Product Description

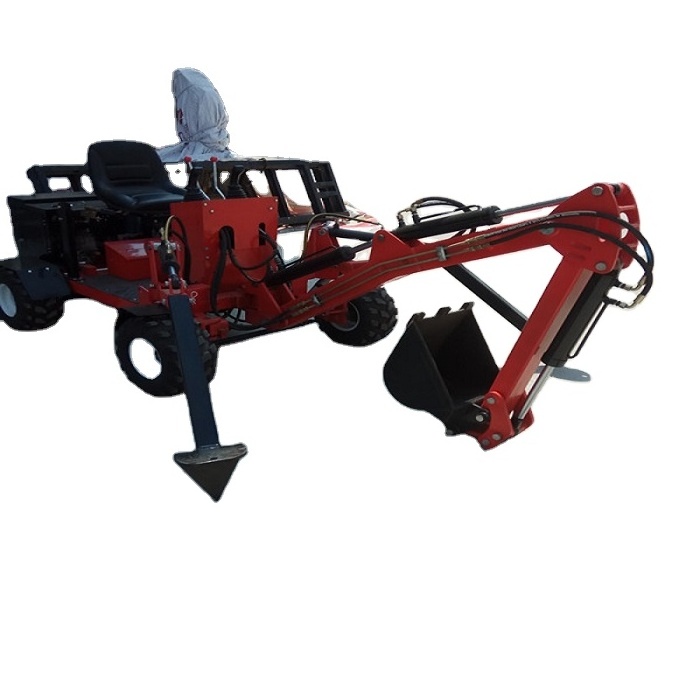

Backhoe
The backhoes enable you to tackle any kind of job with confidence. They have advanced features like a fully self-contained
hydraulic system with dual filter system. Hydraulic systems is powered by your tractor’s PTO, 4th point top link stabilization
system, responsive 4-way controls with exceptional feathering, hydraulic stabilizer, transport lock and a variety of heavy-duty
bucket sizes up to 36” in width.
hydraulic system with dual filter system. Hydraulic systems is powered by your tractor’s PTO, 4th point top link stabilization
system, responsive 4-way controls with exceptional feathering, hydraulic stabilizer, transport lock and a variety of heavy-duty
bucket sizes up to 36” in width.
Features
* Trenching up to 108” deep
* Two-lever hydraulic controls
* Rigid 4th point mounting eliminates need for frame mount
* Hydraulic stabilizers
* Transport lock
* Optional Mechanical thumb
* Variety of bucket sizes
* Built using Q-235 structural steel
* High quality components
* The backhoes are built strong and feature heavy lift and major digging capacity.
* Additional bucket sizes, (subject to availability).
* Two-lever hydraulic controls
* Rigid 4th point mounting eliminates need for frame mount
* Hydraulic stabilizers
* Transport lock
* Optional Mechanical thumb
* Variety of bucket sizes
* Built using Q-235 structural steel
* High quality components
* The backhoes are built strong and feature heavy lift and major digging capacity.
* Additional bucket sizes, (subject to availability).
|
Model
|
BH5600
|
BH6600
|
BH7600
|
BH8600
|
|
Tractor horsepower
|
18-25hp
|
25-35hp
|
30-45hp
|
35-66hp
|
|
Three point suspension
|
Cat-1&2
|
Cat-1&2
|
Cat-1&2
|
Cat-1&2
|
|
Max. Digging depth
|
1830mm
|
2133mm
|
2438mm
|
2745mm
|
|
Digging depth(2 feet flat bottom)
|
1676mm
|
1980mm
|
2286mm
|
2590mm
|
|
Boom swing degree
|
180°
|
180°
|
180°
|
180°
|
|
Loading height(bucket at 60°)
|
1270mm
|
1524mm
|
1778mm
|
2032mm
|
|
Loading reach(bucket at 60°)
|
865mm
|
965mm
|
1092mm
|
1220mm
|
|
Reach from center line of swing pivot
|
2286mm
|
2590mm
|
2895mm
|
3200mm
|
|
Max. transport height
|
1245mm
|
1498mm
|
1752mm
|
2032mm
|
|
Transport overhang
|
1016mm
|
1042mm
|
1066mm
|
1092mm
|
|
Bucket rotation
|
180°
|
180°
|
180°
|
180°
|
|
Undercut
|
660mm
|
712mm
|
762mm
|
812mm
|
|
Stabilizer spread, down position
|
1700mm
|
1980mm
|
2260mm
|
2565mm
|
|
Stabilizer spread, up position
|
1066mm
|
1194mm
|
1550mm
|
1828mm
|
|
Bucket cylinder digging force
|
930kg
|
1112kg
|
1288kg
|
1360kg
|
|
Dipper stick cylinder digging force
|
476kg
|
566kg
|
910kg
|
1135kg
|
|
Bucket width
|
230mm
|
300mm
|
380mm
|
450mm
|
|
Hydraulic volume
|
3-4GPM
|
3-4GPM
|
3-4GPM
|
3-4GPM
|
|
Hydraulic pressure
|
2000psi
|
2000psi
|
2000psi
|
2000psi
|
|
Weight(without bucket)
|
252kg
|
296kg
|
356kg
|
498kg
|
|
40”HC
|
40pcs
|
40pcs
|
40pcs
|
36pcs
|
Details Images
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
