Quick Details
-
Voltage:
-
220V/380V/440V
-
Power:
-
18KW
-
Dimension(L*W*H):
-
2.8m³
-
Weight (KG):
-
700
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Weight:
-
700KG
-
Certification:
-
ISO9001
-
Product name:
-
SX8000
-
Coating material:
-
Tungsten Carbide Powder
-
Keywords:
-
HVOF
Quick Details
-
Machine Type:
-
SX8000, Coating Equipment
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sanxin
-
Voltage:
-
220V/380V/440V
-
Power:
-
18KW
-
Dimension(L*W*H):
-
2.8m³
-
Weight (KG):
-
700
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Weight:
-
700KG
-
Certification:
-
ISO9001
-
Product name:
-
SX8000
-
Coating material:
-
Tungsten Carbide Powder
-
Keywords:
-
HVOF
thermal paint machine ,tungsten carbide powder coating machine ,spray tungsten carbide powder plating machine
Its principle is that the combustion supporting agen oxygen atomizes the kerosene fully with atomizing nozzle, then they will enter into combustion chamber as flammable mixed gas.It will burn in high temperature and high pressure after the ignition system ignites it. high-temperature and high-pressure supersonic flame flow will be formed after it’s burning in the Laval nozzle. powder feeding system will send the powder material from the area of low pressure into the flame flow, heating accelerated then spray to the workpiece surface to form high quality coatings.

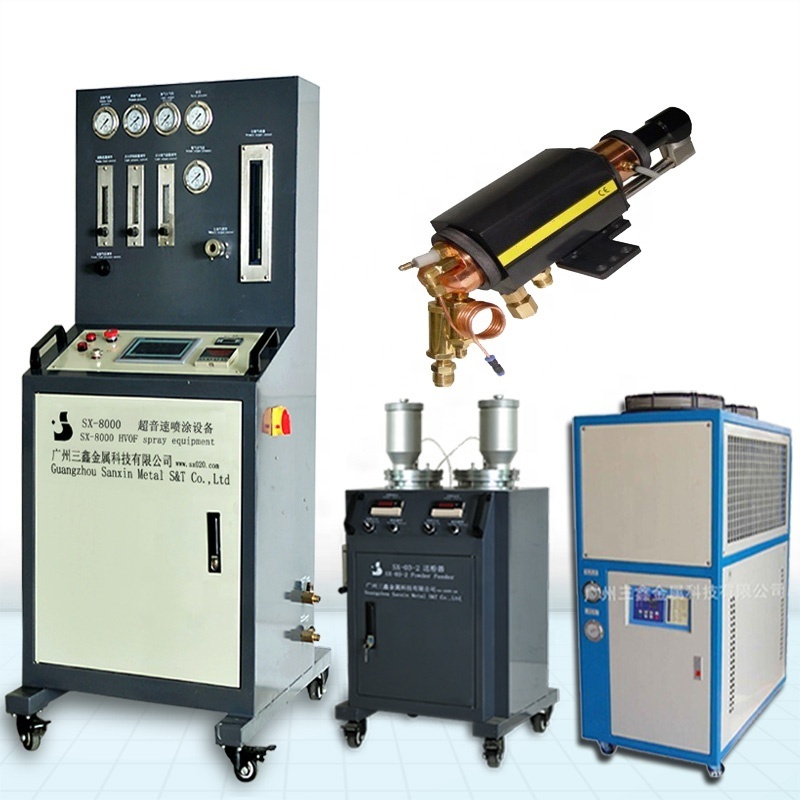

SX-8000 HP/ HVOF spray machine spray equipment insists of : Control cabinet, Spray gun, Water chiller, Kerosene storage tank and Pipelines connection system, etc
(1).Control cabinet
Control cabinet i s the control center of supersonic spray system, which uses the current hightech and automatic control s for the entire spray system . SX8000 HP/ HVOF spray machine can get the advanced level of similar foreign products, superior performance, ease of operation . C ontrol cabinet adopts touch control terminal to put operation / s etting / display / process and fault alarm monitoring together , simplifying panel design, easy to use, simple operation and intuitive.
(2)Powder feeder for SX-8000HVOF spray machine
Powder feeder for SX8000 HP/ HVOF spray machine is a device that used to store spray powder according to process requirements to deliver powder to the gun . N itrogen is the powder feeding gas . Spraying powder through a gas atomization vibration so that the powder feeding device to exit, along with to send powder gas left to send powder barrels into the spray gun. The powder feeding speed can be adjusted by adjusting potentiometer on control panel.
(3)Spraying gun for SX-8000 HP/ HVOF spray machine
Spray gun us es kerosene as fuel, oxygen as the combustion gases, air and water for the cooling body, nitrogen for feed powder . This gun can be working with a long continuous stability.
Parameter for S pray gun of SX-8000 HP/ HVOF spray machine
|
No. |
Items |
Basic parameter |
|
1 |
Flame speed |
About 2100m/s |
|
2 |
Flame temperature |
About 5000℃ |
|
3 |
Gun Power |
150KW(Conversion value) |
|
4 |
Powder particle velocity |
1100 m/s |
|
5 |
velocity |
Water cooling |
|
6 |
Cooling water flow |
9.5L/min |
|
7 |
Coating porosity |
< 1% |
|
8 |
Coating bond strength |
> 90MPa |
|
9 |
Suitable powder size |
10-45μm |
|
10 |
Fuel pressure and flow |
1.2MPa 0~60L/min |
|
11 |
Oxygen pressure and flow |
1.6MPa0~60m 3 /H |
|
12 |
Nitrogen pressure and flow
|
0.35~0.4MPa 3~15L/min |
|
14 |
Dimensions |
90mmX100mmX350mm |
|
15 |
Weight |
About 4.5Kg |
(4)Water chiller for SX-8000 HP/ HVOF spray machine
Dual compressor s drive can reduce the overall volume and increase your space .It mainly used to let the gun to get efficient cooling .We choose t emperature controller imported with highprecision digital display to control accurately the temperature at ± 1 ℃ and range 3 ℃ ~ 45 ℃ .
