Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GSO
-
Model Number:
-

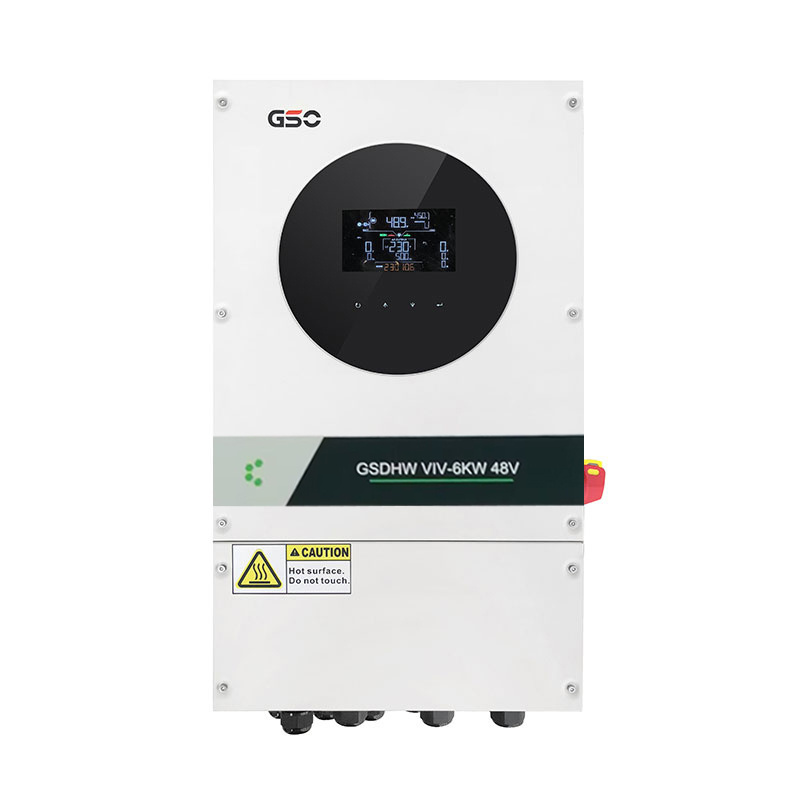

GSDHW VIV-6KW 48V
-
Input Voltage:
-
220V/230V
-
Output Voltage:
-
220V/230V
-
Output Current:
-
27A
-
Output Frequency:
-
50/60HZ
-
Size:
-
505*453*198MM
-
Certificate:
-
CE
-
Warranty:
-
5 years
-
Weight:
-
35kg
-
Product name:
-
Hybrid Solar Inverter
-
Application:
-
Solar Power System Home
-
Inverter type:
-
Hybrid Grid Inverter
-
Rated power:
-
6000W/6KW
-
Display:
-
LCD+LED
-
Battery type:
-
Lithium-ion
-
Protection:
-
IP65
-
Communication:
-
WIFI / RS485
-
OEM:
-
Accepted
-
Battery Voltage:
-
48V
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
97%
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GSO
-
Model Number:
-
GSDHW VIV-6KW 48V
-
Input Voltage:
-
220V/230V
-
Output Voltage:
-
220V/230V
-
Output Current:
-
27A
-
Output Frequency:
-
50/60HZ
-
Size:
-
505*453*198MM
-
Certificate:
-
CE
-
Warranty:
-
5 years
-
Weight:
-
35kg
-
Product name:
-
Hybrid Solar Inverter
-
Application:
-
Solar Power System Home
-
Inverter type:
-
Hybrid Grid Inverter
-
Rated power:
-
6000W/6KW
-
Display:
-
LCD+LED
-
Battery type:
-
Lithium-ion
-
Protection:
-
IP65
-
Communication:
-
WIFI / RS485
-
OEM:
-
Accepted
-
Battery Voltage:
-
48V
Products Description
|
MODEL
|
GSDHW VIV-5KW 48V
|
GSDHW VIV-6KW 48V
|
||
|
PHASE
|
1-phase in / 1-phase out
|
|
||
|
MAXIMUM PV INPUT POWER
|
6000 W
|
6500 W
|
||
|
RATED OUTPUT POWER
|
5000VA/5000W
|
6000VA/6000W
|
||
|
MAXIMUM CHARGING POWER
|
5000 W
|
6000 W
|
||
|
GRID-TIE OPERATION
|
|
|
||
|
PV INPUT (DC)
|
|
|
||
|
Maximum DC Voltage
|
500 VDC
|
550 VDC
|
||
|
Start-up Voltage / Initial Feeding Voltage
|
120VDC / 150 VDC
|
|
||
|
MPP Voltage Range
|
120 VDC ~ 450 VDC
|
|
||
|
Number of MPP Trackers / Maximum Input
Current
|
1 / 27A
|
1 / 30A
|
||
|
GRID OUTPUT (AC)
|
|
|
||
|
Nominal Output Voltage
|
220/230/240 VAC
|
|
||
|
Output Voltage Range
|
184 - 264.5 VAC or 195.5 - 253 VAC or 184 - 264.4 VAC (Selectable)
|
|
||
|
Nominal Output Current
|
21.7A
|
26A
|
||
|
Power Factor
|
> 0.99
|
|
||
|
EFFICIENCY
|
|
|
||
|
Maximum Conversion Efficiency (DC/AC)
|
95%
|
|
||
|
OFF-GRID OPERATION
|
|
|
||
|
AC INPUT
|
|
|
||
|
AC Start-up Voltage / Auto Restart Voltage
|
120 - 140 VAC / 180 VAC
|
|
||
|
Acceptable Input Voltage Range
|
90 - 280 VAC or 170 - 280 VAC
|
|
||
|
Frequency Range
|
50 Hz/60 Hz (Auto sensing)
|
|
||
|
Maximum AC Input Current
|
40 A
|
|
||
|
PV INPUT (DC)
|
|
|
||
|
Maximum DC Voltage
|
500 VDC
|
550 VDC
|
||
|
MPP Voltage Range
|
120VDC ~ 450 VDC
|
|
||
|
Number of MPP Trackers / Maximum Input
Current
|
1 / 27A
|
1 / 30A
|
||
|
BATTERY MODE OUTPUT (AC)
|
|
|
||
|
Nominal Output Voltage
|
220/230/240 VAC
|
|
||
|
Output Waveform
|
Pure sine wave
|
|
||
|
Efficiency (DC to AC)
|
93%
|
|
||
|
HYBRID OPERATION
|
|
|
||
|
PV INPUT (DC)
|
|
|
||
|
Maximum DC Voltage
|
500 VDC
|
550 VDC
|
||
|
Start-up Voltage / Initial Feeding Voltage
|
120 VDC / 150 VDC
|
|
||
|
MPP Voltage Range
|
120 VDC ~ 450 VDC
|
|
||
|
Number of MPP Trackers / Maximum Input
Current
|
1 / 27A
|
1 / 30A
|
||
|
GRID OUTPUT (AC)
|
|
|
||
|
Nominal Output Voltage
|
220/230/240 VAC
|
|
||
|
Output Voltage Range
|
184 - 264.5 VAC or 195.5 - 253 VAC or 184 - 264.4 VAC (Selectable)
|
|
||
|
Nominal Output Current
|
21.7A
|
26A
|
||
|
AC INPUT
|
|
|
||
|
AC Start-up Voltage / Auto Restart Voltage
|
120 - 140 VAC / 180 VAC
|
|
||
|
Acceptable Input Voltage Range
|
90 - 280 VAC or 170 - 280 VAC
|
|
||
|
Maximum AC Input Current
|
40 A
|
|
||
|
BATTERY MODE OUTPUT (AC)
|
|
|
||
|
Nominal Output Voltage
|
220/230/240 VAC
|
|
||
|
Efficiency (DC to AC)
|
93%
|
|
||
|
BATTERY & CHARGER
|
|
|
||
|
Nominal DC Voltage
|
48 VDC
|
|
||
|
Maximum Solar Charging Current
|
100 A
|
120 A
|
||
|
Maximum AC Charging Current
|
100 A
|
120 A
|
||
|
Maximum Charging Current
|
100 A
|
120 A
|
||
|
GENERAL
|
|
|
||
|
PHYSICAL
|
|
|
||
|
Dimension, D x W x H (mm)
|
192 x 360 x 665
|
|
||
|
Net Weight (kgs)
|
22.5
|
|
||
|
INTERFACE
|
|
|
||
|
Parallel Function
|
Yes, 9 units
|
|
||
|
Communication Port
|
USB or RS-232/Dry Contact/RS485/Wi-Fi
|
|
||
|
ENVIRONMENT
|
|
|
||
|
Humidity
|
0 ~ 95% RH (No condensing)
|
|
||
|
IP degree
|
IP65
|
|
||
|
Operating Temperature
|
-25°C to 50°C
|
|
||
Performance characteristics：
1.Pure sine wave output
2.IP65 waterproof and dustproof makes the inverter available for various working conditions
3.Self-consumption and Feed-in to the grid
4.Programmable supply priority for PV, Battery or Grid
5.Built-in communication port for BMS (RS485), Wi-Fi
6.User-adjustable charging current and voltage
7.Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
8.Dual output for smart load control
9.Parallel operation up to 9 units
1.Pure sine wave output
2.IP65 waterproof and dustproof makes the inverter available for various working conditions
3.Self-consumption and Feed-in to the grid
4.Programmable supply priority for PV, Battery or Grid
5.Built-in communication port for BMS (RS485), Wi-Fi
6.User-adjustable charging current and voltage
7.Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
8.Dual output for smart load control
9.Parallel operation up to 9 units
