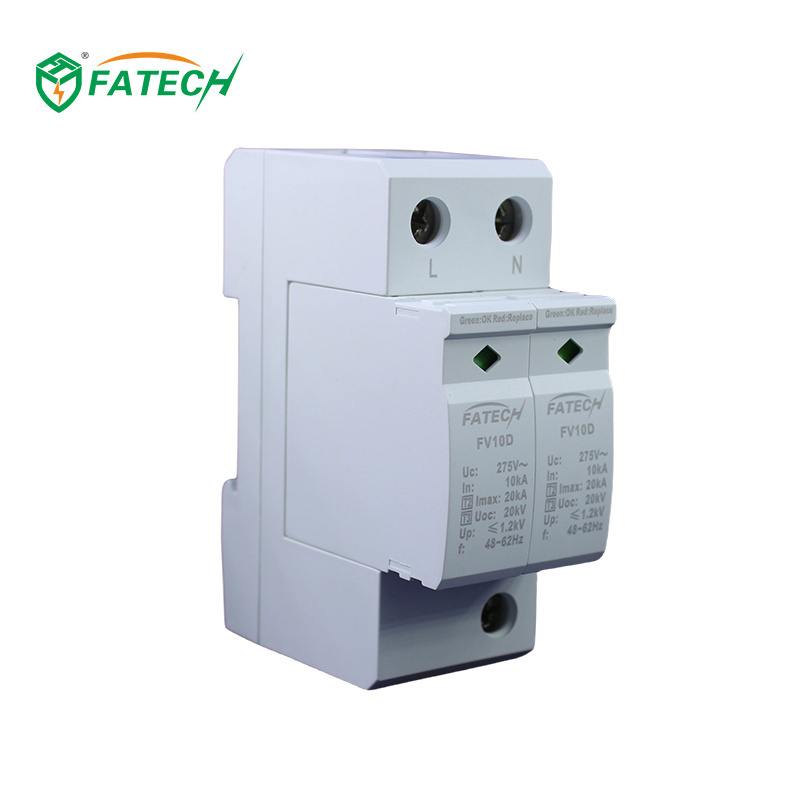

T3 230V Power Supply Surge Protective Devices Electronic Equipments Protection Surge Protector

T3 230V Power Supply Surge Protective Devices Electronic Equipments Protection Surge Protector

FOB Reference Price: Get Latest Price

≥10 Pieces

US $12

≥100 Pieces

US $10

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: FATECH

Model Number:: FV10D/2-275

Uc:: 275V AC

Un:: 220V AC

Imax:: 20KA

In:: 10KA

Color:: Gray

OEM&ODM:: Welcome

Cert:: CE, ISO9001-2008

SPD protection conforms to:: Type 2+3

Permissible humidity:: 30%~90%

SPD installation type:: Class II+III

Quick Details

Type:: T2, T3

Rated Voltage:: 220V-

Max Discharge current:: 20000 A

Place of Origin:: Guangdong, China

Brand Name:: FATECH

Model Number:: FV10D/2-275

Uc:: 275V AC

Un:: 220V AC

Imax:: 20KA

In:: 10KA

Color:: Gray

OEM&ODM:: Welcome

Cert:: CE, ISO9001-2008

SPD protection conforms to:: Type 2+3

Permissible humidity:: 30%~90%

SPD installation type:: Class II+III

Product introduction

Class II+III / Type 2+3 surge protective devices.

For using in the lightning protection zones concept at boundary 1-2.

The core parts are metal oxide vristor components with high discharge capacity.

Reliable control thanks to Thermo Dynamic Control disconnector.

With remote signaling contact for control device.

Fault indication via red mark in the inspection window.

Protection mode --- L-PE,N-PE

Model. No.	FV10D/2-275S
SPD protection conforms to IEC 61643-11 / EN 61643-11	Type 2+3
SPD installation type conforms to IEC 61643-11 / EN 61643-11	Class II+III
Protection level conforms to DIN VDE0675-6	C+D
Type of Network	TT ，TN
Protection mode	L-PE , N-PE
Nominal Voltage UN	220 Vac/50(60)Hz
Maximum continuous operating voltage UC	275 Vac/50(60)Hz
Continuous operating current IC	<20 µA
Residual current IPE	≤20 µA dc ≤500 µA ac
Standby power consumption PC	≤25 mVA
Maximum discharge current (8/20μs) Imax	20 kA
Nominal discharge current (8/20μs) In	10 kA
Voltage protection level Up	≤1.2 kV
Open circuit voltage Uoc	20 kV
Isolation resistance Risol	＞1000 MΩ
Response time tA	≤25 ns
Remote control contact	YES
Disconnection indicator	Mechanical indicator (Green: OK, Red: Replace)
Minimum area of connecting cable	4 mm2
Maximum area of connecting cable	25 mm2
Installation location	Inside
Mounting type	35mm DIN rail acc. to EN 60715
Color	Gray
Degree of protection	IP20
Housing material	UL94V-0
Ambient temperature	-40°C ~+80°C
Altitude	≤2000 m (amsl (above mean sea level))
Permissible humidity	30%~90%
