Quick Details
-
Model Number:
-
CYLFP12400
-
Battery Size:
-
450*380*200
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
45KG, approx 50kg
-
Usage:
-
UPS
-
Sealed Type:
-
Sealed
-
Maintenance Type:
-
Free
-
Cycle life:
-
≥3000times
-
Color:
-
black or optional
-
OEM/ODM:
-
Avaiable
-
Certificate:
-
CE/RoHS/UN38.3/MSDS
-
Peak discharge current:
-
200A
-
Warranty:
-
3years
-
Chargeable:
-
Yes
-
Certification:
-
CE
Quick Details
-
Anode Material:
-
LFP
-
Application:
-
BOATS, Golf Carts, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, ups
-
Brand Name:
-
Cyclenpo
-
Model Number:
-
CYLFP12400
-
Battery Size:
-
450*380*200
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
45KG, approx 50kg
-
Usage:
-
UPS
-
Sealed Type:
-
Sealed
-
Maintenance Type:
-
Free
-
Cycle life:
-
≥3000times
-
Color:
-
black or optional
-
OEM/ODM:
-
Avaiable
-
Certificate:
-
CE/RoHS/UN38.3/MSDS
-
Peak discharge current:
-
200A
-
Warranty:
-
3years
-
Chargeable:
-
Yes
-
Certification:
-
CE

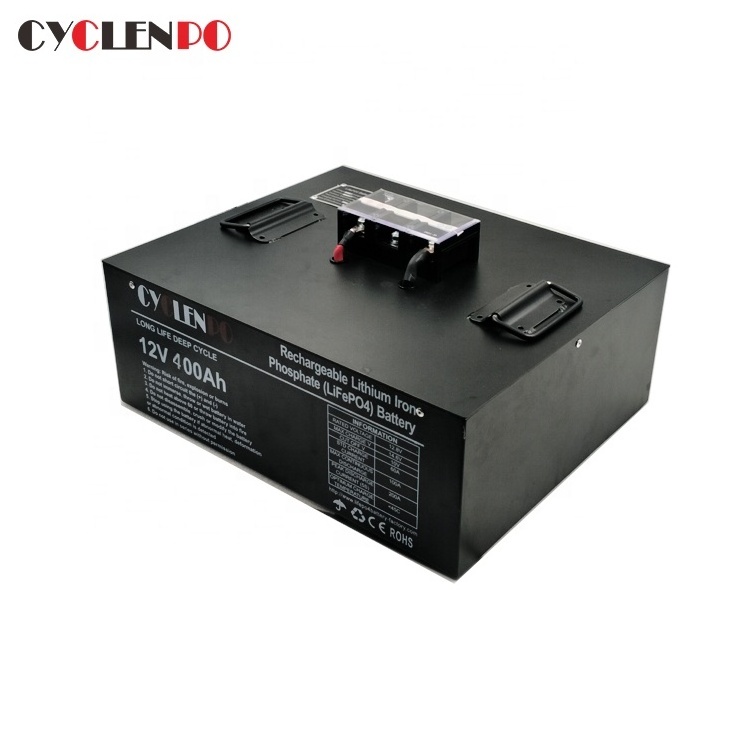

Factory customized deep cycle lifepo4 batterie solaire 12v 400ah for ess
|
Normal performance
|
|
|
|
|||
|
NO
|
Item
|
General Parameter
|
Remark
|
|||
|
1
|
Model
|
3.2V 103AH CATL
|
Single
|
|||
|
2
|
Casing material for single cell
|
Nickel plated steel
|
|
|||
|
3
|
Standard capacity(0.2C5A)
|
400Ah or customized
|
|
|||
|
4
|
Rated voltage
|
12.8V
|
3.20V(Work voltage:3.20V)
|
|||
|
5
|
Max.Charge voltage
|
14.6V
|
3.65V(Single Ave. charge Voltage)
|
|||
|
6
|
Cut-off voltage
|
10V
|
2.50V(Single Ave. Discharge Voltage)
|
|||
|
8
|
Standard charge current
|
100A
|
0.5C
|
|||
|
9
|
charging Time
|
About 4h
|
|
|||
|
10
|
Continuous discharge current
|
200A
|
1C
|
|||
|
11
|
Peak discharge current
|
300A
|
2C 5 seconds
|
|||
|
12
|
Battery dimension
|
450±1*380±1*200±1mm
|
|
|||
|
13
|
(Approx.)Total weight(Approx.)
|
About 45kg
|
|
|||
|
14
|
(Max, at 1000Hz.)Impedance(Max, at 1000Hz.)
|
≤ 45mΩ
|
|
|||
|
15
|
(CC/CV)
Charge method (CC/CV) |
Standard
|
0℃~45℃
|
|||
|
|
|
discharge
|
-20℃~45℃
|
|||
|
|
|
storage
|
-20℃~45℃
|
|||
Features and advantages
Application
What we can offer to you
-- Supply to print your logo on battery case
-- Support batteries to parallel and series
-- Supply batteries of max discharge continuous 175A, peak 320A
-- Customizable production
-- Fastest delivery time
--Small order quantity is accepted
