Quick Details
-
Surface Treatment:
-
Hot Dippe Galvanized
-
Color:
-
Silver/Blue/Green or cuasomized
-
Feature:
-
Feature
-
Material:
-
Q235/Q345
-
Application:
-
Roadway Safety
-
Packing:
-
Standard Packing
-
Type:
-
W-beam
-
Standard:
-
AASHTO M-180
-
Certificate:
-
ISO9001:2008
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jiaxiang
-
Product name:
-
Galvanized Highway Guardrail
-
Surface Treatment:
-
Hot Dippe Galvanized
-
Color:
-
Silver/Blue/Green or cuasomized
-
Feature:
-
Feature
-
Material:
-
Q235/Q345
-
Application:
-
Roadway Safety
-
Packing:
-
Standard Packing
-
Type:
-
W-beam
-
Standard:
-
AASHTO M-180
-
Certificate:
-
ISO9001:2008

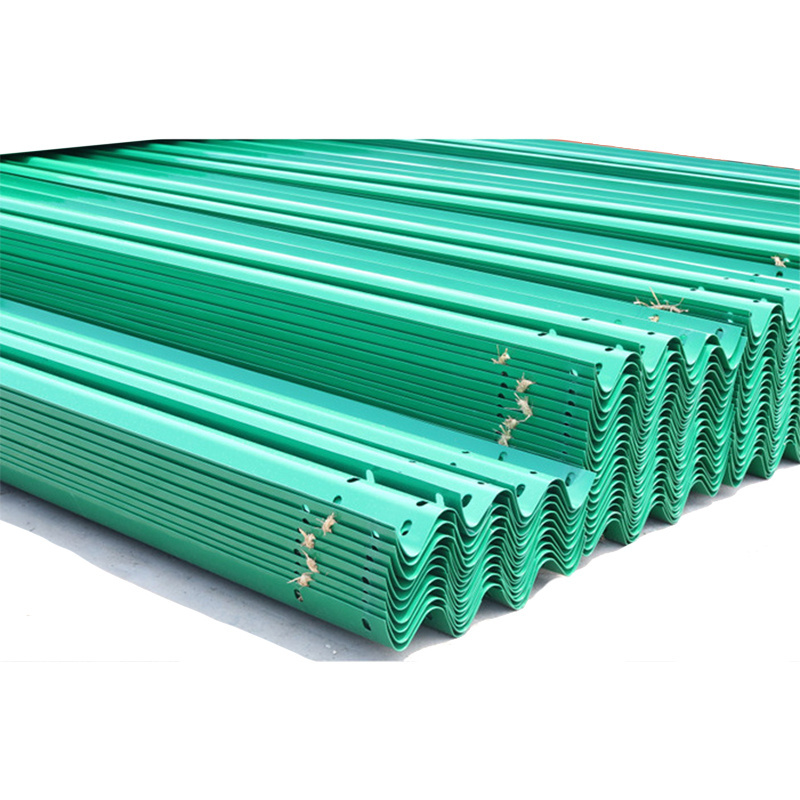

Top Quality Functional Qualified Salable Highway Guardrail Thrie-Beam Crash Barrier And Highway Barrier
Highway/traffic guardrails
have the advantages of good impact resistance, low cost, long life, higher safety, and environmental protection. Uses: Expressway anti-collision facilities, isolation and other facilities.
1. The corrugated beam guardrail is the main form of the semi-rigid guardrail. It is a continuous structure that is spliced with corrugated steel guardrails and supported by columns.
2. It uses the deformation of soil foundation, columns and beams to absorb collision energy.
2. It uses the deformation of soil foundation, columns and beams to absorb collision energy.
3. Corrugated beam guardrail is both soft and flexible
Product Paramenters
|
Product Name
|
Highway guardrail
|
|
Normal Sizes
|
L:3200/3810/4000/4300/4320× W:306/310/312/380X
Height : 80/82/83/85× Thickness :2.75/3/4mm. Available in different sizes. |
|
Materail
|
Q235,Q345
|
|
Profile
|
W beam , Thrie beam
|
|
Surfacce treatment
|
Hot dipped galvanized or plastic sprayed coating
|
|
Applicabele Standards
|
JT/T2811995(Corrugated Sheet Steel Beams For Expressway Guardrail - China), AASHTO M180(Corrugated Sheet Steel Beams For Highway Guardrail - USA), RAL RG620 (German) or any other International Standards
|
|
Base Steel
|
Grade Q235B (equivalent to S235JR according to DIN EN 10025 and Gr. Daccording to ASTM A283M) or Q345 (S355JR / ASTM A529M 1994)
|
|
The Thickness of Galvanized (Double Sides)
|
550g/m2 (40µ) or 1100 g/m2 (80µ) or 1200 g/m2 (85µ) or as per your request
|
|
Features
|
Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security,environmental protection, etc.
|
|
Relevant Parts
|
Required for Guardrails Post, Spacer (C, U and Sigma types etc) and Fasteners, Bolts&Nuts,Terminal,Reflectors
|
Our Advantages
Authentic Material
：Using high quality steel plate after anti-corrosion treatment, durable
Anti-Corrosion Technology
：
Hot dip galvanized, the surface can also be sprayed/impregnated and other anti-corrosion treatment
Steel And Soft
：It has a strong ability to absorbcollision energy, has a good sightinduction function, and can becoordinated with the road alignment
