Quick Details
-
Year:
-
2021
-
Weight (KG):
-
800
-
Applicable Industries:
-
CNC automatic stainless steel iron wire bender
-
Name:
-
CNC automatic stainless steel iron wire bender
-
Axis:
-
4 Axis
-
Control system:
-
Computer+Touch Screen
-
Bending Capacity:
-
3-8mm
-
feeding wire tolerance:
-
±0.5mm
-
The max feeding wire speed:
-
30m/min
-
Voltage:
-
220V/380V/415V/440V/customized
-
Motor power:
-
5.5kw
-
Size:
-
2300*1600*1650mm
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Marketing Type:
-
Hot Product 2021
-
Brand Name:
-
MYT
-
Year:
-
2021
-
Weight (KG):
-
800
-
Applicable Industries:
-
CNC automatic stainless steel iron wire bender
-
Name:
-
CNC automatic stainless steel iron wire bender
-
Axis:
-
4 Axis
-
Control system:
-
Computer+Touch Screen
-
Bending Capacity:
-
3-8mm
-
feeding wire tolerance:
-
±0.5mm
-
The max feeding wire speed:
-
30m/min
-
Voltage:
-
220V/380V/415V/440V/customized
-
Motor power:
-
5.5kw
-
Size:
-
2300*1600*1650mm

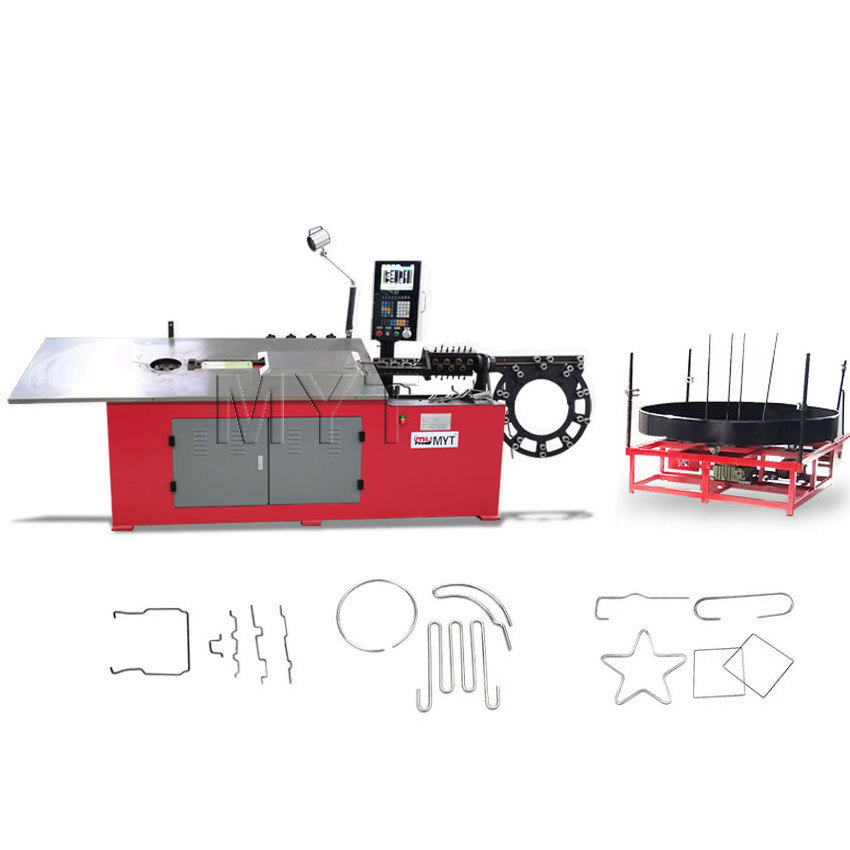

MYT CNC automatic 2D wire bending machine / wire bender
Product Description
2D wire bending machine Features :
1.Servo drive, Stable performance;
2.High precision, no noise; 2D CNC rebar bender and stainless wire bending machine
3.Easy to operate,adopt special microcomputer control,intelligent forming,high efficiency,save electricity;
4.Automatic straightening, wire feeding, forming, cutting and record number;
5.Wire feeding wheels, straightening wheels, forming wheels adopt the German high quality alloy, after vacuum heat treatment ,the high abrasion resistance and long service life;
6.Suitable for forming Various 2D shapes for all kinds of metal ( such as steel, iron, stainless steel and aluminum wire, etc. )
Detail images
Front side of 2D wire bender
Back side of wire bender
CNC system for programme
Support table can be customized
Feeding wheels for 2 sizes
Strighten rollers for adjust
Sanyo brand servo motor
Electric decoiler
Specification
|
Model
|
Specifs
|
MCNC-460
|
MCNC-480
|
MCNC-84120
|
|
1
|
dia of wire
|
soft wire 2-6mm
Hard wire 2-4mm
|
soft wire 3-8mm
Hard wire 3-6mm
|
soft wire 3-12mm Hard wire 3-10 mm
|
|
2
|
Axis
|
4
|
4
|
4
|
|
3
|
Feeding wheels
|
3
|
3
|
4
|
|
4
|
Wire feed motor power
|
2.7KW
|
2.7KW
|
2.7KW
|
|
5
|
Angle control motor power
|
1.5kw
|
1.5kw
|
2.5kw
|
|
6
|
Lift Control Motor power
|
1KW
|
1KW
|
1KW
|
|
7
|
Cutting motor power
|
0.75KW
|
1KW
|
2KW
|
|
8
|
Size
|
1900x1100x1650
|
2250x1100x1720
|
2450x1450x1800
|
|
9
|
Weight
|
1100
|
1600
|
2100
|
