Quick Details
-
Power:
-
4-10kw
-
Min. Lifting Height:
-
300mm
-
Table Size:
-
1000*1000 mm
-
Overall Dimensions:
-
3885x2092x1325mm
-
Weight:
-
1000 kg, 1000kg
-
Marketing Type:
-
New Product 2024
-
External dimensions:
-
3885x2092x1325 mm
-
Maximum lifting height:
-
3m
-
Auxiliary power:
-
Gasoline/Electric
-
Drive wheel model:
-
23x8.5-12
-
Driving form:
-
Two wheel drive
-
Maximum platform capacity:
-
175kg
-
color:
-
customizable
-
Applicable Scenarios:
-
Orchard
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HHH-FEC
-
Power:
-
4-10kw
-
Min. Lifting Height:
-
300mm
-
Table Size:
-
1000*1000 mm
-
Overall Dimensions:
-
3885x2092x1325mm
-
Weight:
-
1000 kg, 1000kg
-
Marketing Type:
-
New Product 2024
-
External dimensions:
-
3885x2092x1325 mm
-
Maximum lifting height:
-
3m
-
Auxiliary power:
-
Gasoline/Electric
-
Drive wheel model:
-
23x8.5-12
-
Driving form:
-
Two wheel drive
-
Maximum platform capacity:
-
175kg
-
color:
-
customizable
-
Applicable Scenarios:
-
Orchard
Products Description

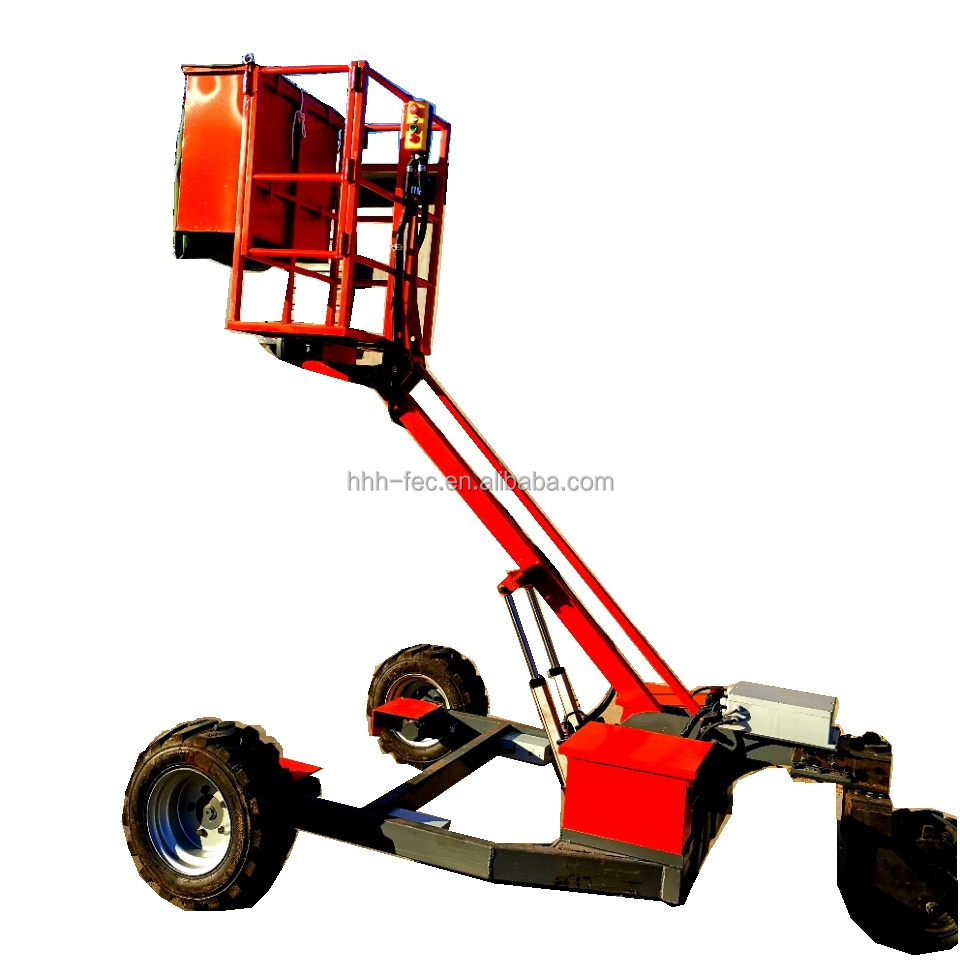

Mobile Elevating Platforms
1-
The 3-wheeled self-propelled platform is compact and flexible, designed for efficient access in tight spaces.
2-
Widely used in orchards, horticulture, pruning or daily maintenance.
3-
Simple operation and convenient control Suitable for a variety of aerial work safety and reliability
Product real shot
1--
FOOT CONTROL
Hands free operation for productivity in the orchard
Includes three pedals in the floor of the platforms . The centre pedal operates the lift and the two outside pedals operate the
respective drive wheels
2--
Small enough to fit in dense areas
Compact dimensions and platform manoeuvrability make it easy to operate in confined spaces.3m working height. Ideal for building sheds and farm barns.
3--
Boom pivot located forward for Low tail height
Sleek round bonnets and low chassis design make the 300h very compact . It easily manoeuvres in and amongst trees without damaging branches or fruit
Real customer usage scenarios
Our Advantages
Safety Features:
Modern models come equipped with safety features such as stability controls, emergency lowering systems, and fall protection, prioritizing worker safety..
Efficiency:
Due to their agility and ease of movement, they contribute to increased efficiency in completing tasks as they can be positioned quickly and precisely. Lithium battery,more environmental friendly than diesel engine equipment.
Maneuverability:
Their compact size and three-wheel design allow for easy maneuvering in tight or confined spaces, enhancing accessibility to areas where traditional platforms might struggle to reach.
Scenes to be used
Pruning
Flower thinning
Fruit thinning
Bagging fruit
Harvest
Product Paramenters
|
NO
|
Item
|
Unit
|
Gasoline version
|
Electric version
|
|
1
|
Model
|
/
|
4GP-3G
|
4GP-3E
|
|
2
|
External dimensions
|
mm
|
3885x2092x1325
|
3885x2092x1325
|
|
3
|
Maximum lifting height
|
m
|
3
|
3
|
|
4
|
Auxiliary power
|
/
|
American Kohler 20HP twin cylinder gasoline engine
|
4-6kw
|
|
5
|
Storage battery
|
/
|
/
|
48V 180Ah
|
|
6
|
Drive wheel model
|
/
|
23x8.5-12
|
23x8.5-12
|
|
7
|
Driving form
|
/
|
Two wheel drive
|
Two wheel drive
|
|
8
|
Maximum platform capacity
|
KG
|
175
|
175
|
|
9
|
Weight
|
kg
|
1000
|
1000
|
accessories
