Quick Details
-
Place of Origin:
-
shanghai
-
Brand Name:
-
Shantui
-
Dimension(Long * Breadth * High):
-
5140*3455*3032
Quick Details
-
Machine Weight:
-
17000 KG
-
Dozing Capacity:
-
3.5/4.8, 4.8
-
Marketing Type:
-
New Product
-
Place of Origin:
-
shanghai
-
Brand Name:
-
Shantui
-
Dimension(Long * Breadth * High):
-
5140*3455*3032
Product parameter
Product Characteristic
|

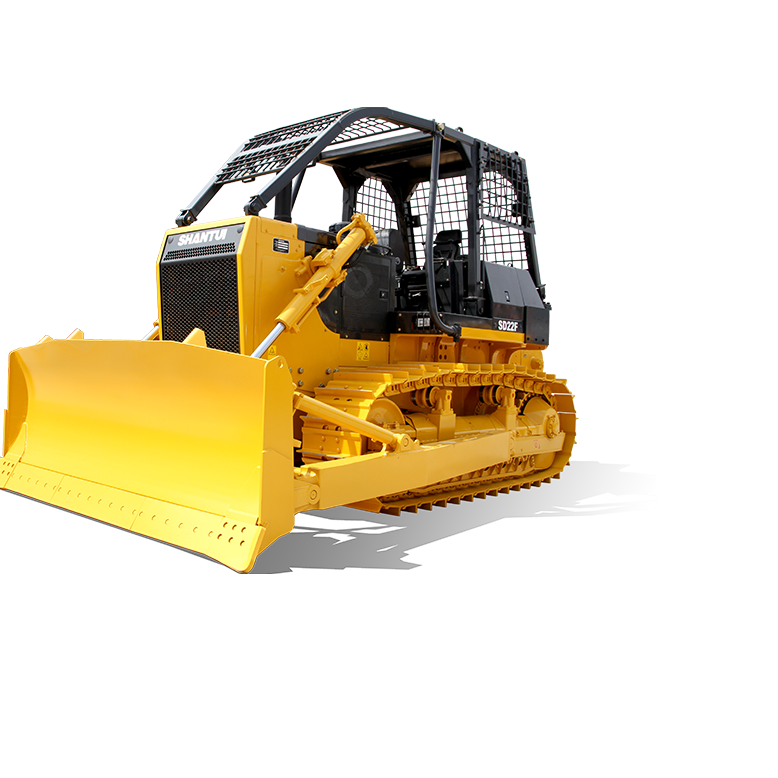

Shantui bulldozer SD22
|
|
|
|
Parameter
|
SD22
|
|
|
Overall weight(kg)
|
23450
|
|
|
Engine brand
|
Cummins
|
|
|
Rated power/rated speed(kW/rpm)
|
175/1800
|
|
|
Machine external dimensions(mm)
|
5495*3725*3402
|
|
|
Track center distance(mm)
|
2000
|
|
|
Track shoe width(mm)
|
560/610/660
|
|
|
Ground contact length(mm)
|
2730
|
|
|
Fuel tank capacity(L)
|
450
|
|
|
Blade type
|
Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade
|
|
|
Blade capacity(m³)
|
4.6
|
|
|
Emissions (Indicated as per international standards)
|
Eu stageⅡ
|
|
Configuration Selling Point
Shantui’s self-manufactured drive system perfectly aligns with the engine curve, resulting in substantial traction and enhanced transmission efficiency. Shantui’s self-developed four wheels and one track are built to be durable;
Ease Of Maintenance And Operation Comfort
The openable side guard offers a spacious area and the reasonable layout of filter elements facilitates convenient maintenance. The hexahedral cab is designed with ergonomic considerations and provides a spacious interior and wide field of view.
Adaptability To Diverse Working Conditions
The machine is equipped with a straight tilt blade for enhanced cutting force, making it well-suited for diverse working conditions such as clay, frozen soil, and sandy soil. The chassis system is stable with large ground clearance, demonstrating excellent passability;
