Quick Details
-
Brand Name:
-
Chenf
-
Model Number:
-
CFQ-M15-2
-
Operating Temperature:
-
0 degee to 80 degree
-
Color:
-
Blue and Yellow
-
Protection setting:
-
IP68
-
Rated voltage:
-
250V (380V)
-
Rated current:
-
10A (4A)
-
Type:
-
water tank level float switch
-
Certification:
-
CE, Rohs
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
≥100.000 times
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Chenf
-
Model Number:
-
CFQ-M15-2
-
Operating Temperature:
-
0 degee to 80 degree
-
Color:
-
Blue and Yellow
-
Protection setting:
-
IP68
-
Rated voltage:
-
250V (380V)
-
Rated current:
-
10A (4A)
-
Type:
-
water tank level float switch
-
Certification:
-
CE, Rohs

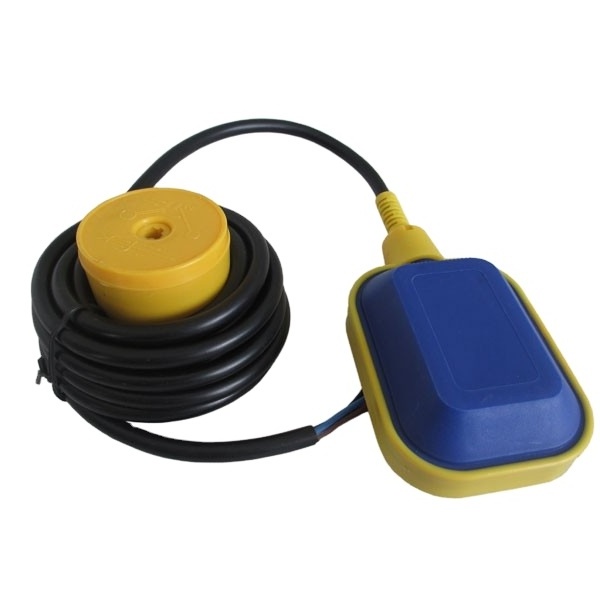

CE Approval 2M, 3M ,4M,5M Cable Water Level Float Switch For Water Tank
Float Switch, Liquid Level Switch, water level controller, fluid level controller monitor
----- Liquid Controller /float switch -----
-----With 2m,3m,4m, 5m Cable----
----Easy to install----
Float Switch, Liquid Level Switch, water level controller, fluid level controller monitor
- Brief introduction:
1.Cable Float Switch uses one-step shaping injection molding with substantial structure, cheap price and long lifetime.
2.It has very good control effect for long distance, multiple level control, submerged pump or liquid with grain or block.
3.Certainly it is also useful for normal liquid. It uses Micro Switch to make connection output. Connection point capacity 10A/250VAC can start the motor equipment directly.
4.It can be regulated freely and easy to operate, convenient to install, safe and reliable, without maintenance, non-toxic and environment friendly.
5.It can resist sewage so that widely used in pool in resident, factories and mines ect., and ponds, barrel, manger and pot with oil, acid and alkali as well as the vessel with high viscosity and suspended substance.
Float Switch, Liquid Level Switch, water level controller, fluid level controller monitor
- Brief Show:
Float Switch, Liquid Level Switch, water level controller, fluid level controller monitor
- Technical Data :
| Float Regulator | Liquid Controller /float switch |
| Rated voltage | 250V(380V) |
| Rated Frequency | 50Hz/60Hz |
| Rated current | 10A(3A) |
| Working temperature | 0 degee to 80 degree |
| Mechanical endurance | ≥100.000 times |
| Electric endurance | ≥ 50.000 times |
| Protection grade | IP68CS |
| Standard cable length | 4m |
| Switch currency | +++ ≥50 000switch workings tested by VDE specialisation |
| Protective connection | T 70U |
| Protection | waterproof |
| Working pressure | max.1bar |
| Circuit breaking capacity | Directly KW with 250V |
| Float | Polypropylene |
| Cable | polypropylene Jacket |
| Counter Weight | Polypropylene Sealed Housing |
| Cable Material | HO7RN- F3x0.75mm2 , PVC (3x0. 5mm2,3x0.75mm2, 3x1.0mm2) |
Float Switch, Liquid Level Switch, water level controller, fluid level controller monitor
- More details :
Float Switch, Liquid Level Switch, water level controller, fluid level controller monitor
- Package :
One unit float switch, and one english instruction manual.
Float Switch, Liquid Level Switch, water level controller, fluid level controller monitor
- Other series :
About Us:
- Chenf Electric Group Limited. (called "Chenf" for short) is a wholly owned subsidiary of Chenf Electrical Group Limited. Founded in 2008, we are a modern enterprise specialized in offering one-stop service to customers.
- Chenf concentrates on the design, production and sales of renewable energy product, hi-voltage product, low-voltage product, pneumatic actuator, etc
- Chenf will continue to take "create value for customers.
Enterprise Vision: To create electrical products airline carrier.
Float Switch, Liquid Level Switch, water level controller, fluid level controller monitor
* Other Terms:
Float Switch, Liquid Level Switch, water level controller, fluid level controller monitor
Q1: Are you a manufacturer?
A1:yes. We have 8 years export exprience.
Q2: Delivery time?
A2:Will send the goods out within 72 hours after the order confirmed.
Q3: After Sales Service?
A3: if u have any questions about the receuved product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
