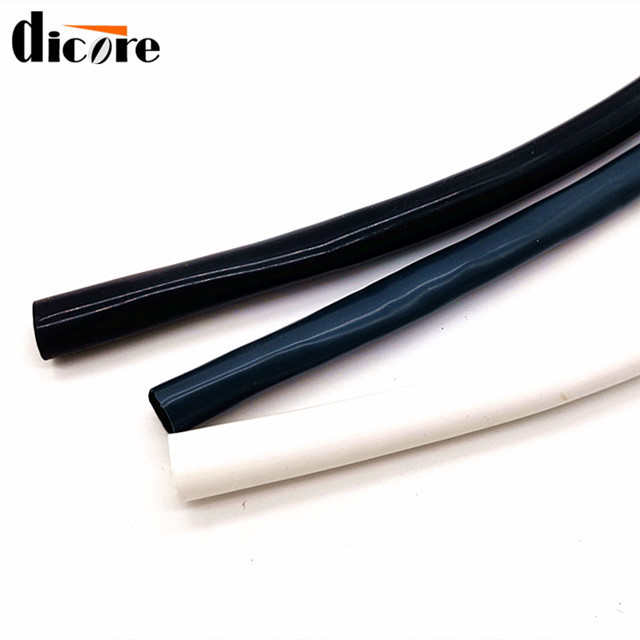

100mm Heat shrink soft silicone rubber tube /flexible tube hose /insulation sleeve
100mm Heat shrink soft silicone rubber tube /flexible tube hose /insulation sleeve
100mm Heat shrink soft silicone rubber tube /flexible tube hose /insulation sleeve
100mm Heat shrink soft silicone rubber tube /flexible tube hose /insulation sleeve
100mm Heat shrink soft silicone rubber tube /flexible tube hose /insulation sleeve
100mm Heat shrink soft silicone rubber tube /flexible tube hose /insulation sleeve
100mm Heat shrink soft silicone rubber tube /flexible tube hose /insulation sleeve
100mm Heat shrink soft silicone rubber tube /flexible tube hose /insulation sleeve

100mm Heat shrink soft silicone rubber tube /flexible tube hose /insulation sleeve

FOB Reference Price: Get Latest Price
≥100 Meters
US $15
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Material:
silicone ruber
Rated Voltage:
600v
Tensile Strength:
6.9Mpa
color:
white ,grey,black,red
size:
1.0mm-110mm
Certification:
RoHS
Product name:
heat shrink high temperature silicone rubber tubing
Sample:
Accessible
Usage:
Electrical insulation

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
Dicore
Model Number:
HSST
Material:
silicone ruber
Rated Voltage:
600v
Tensile Strength:
6.9Mpa
color:
white ,grey,black,red
size:
1.0mm-110mm
Certification:
RoHS
Product name:
heat shrink high temperature silicone rubber tubing
Sample:
Accessible
Usage:
Electrical insulation

Heat shrink soft silicone rubber tube  /flexible tube hose /insulation sleeve

Application:

>Flexible electrical insulation sleeving and cable harnessing.
>Tubing for household and commercial appliances, beverage and vending machines.
>High and low temperature hose for industrial machinery and equipment (low pressure).
>Medical and laboratory tubing

Property:

Test Item

Value

Density 25°C

1.2

Rigidity JIS-A

70

Tensile strength

6.9Mpa(70Kgf/cm)

Elongation at break

400%

Tensile strength at break JIS-A

25Kgf/Cm

Volume resistance

2*12 14 Ω.cm

Breakdown Voltage (1mm)

25KV

Dielectric constant (*)50Hz

3.2

Operating temperature range

-50°C-+200°C

Shrinking Ratio

about 50%

Shrinking temperature

90°C above

RoHs Compliant

Pass (SGS report)

Low Smoking IEC 60754

Pass

Flammability Rating

Flame-Retardant(HSST-F Type)

Radiation resistance - 10 6 MGy

Pass

Chemical resistance

Not strong acid or alkali resistance

Fluid Resistance

Splash Protection of Aviation Fuel, Brake Fluid, Hydraulic Fluid, Lubricating Oil, Water

Aging  200 o C- 4hours, 180 o C-168hours.

Pass

Specification:

Size

(mm)

Before Shrinking

After Shrinking

I.D.(mm)

Thickness(mm)

I.D.(mm)

Thickness(mm)

φ1.0

1.0

0.5±0.1

0.6

0.7±0.1

φ1.5

1.5

0.5±0.1

0.8

0.7±0.1

φ2.0

2.0

0.5±0.1

1.2

0.7±0.1

φ2.5

2.5

0.5±0.1

1.5

0.7±0.1

φ3.0

3.0

0.5±0.1

1.8

0.7±0.1

φ3.5

3.5

0.5±0.1

2.0

0.7±0.1

φ4.0

4.0

0.5±0.1

2.5

0.7±0.1

φ4.5

4.5

0.5±0.1

2.8

0.7±0.1

φ5.0

5.0

0.5±0.1

3.0

0.7±0.1

φ6.0

6.0

0.5±0.1

3.8

0.7±0.1

φ7.0

7.0

0.5±0.1

4.0

0.7±0.1

φ8.0

8.0

0.5±0.1

4.8

0.7±0.1

φ9.0

9.0

0.5±0.1

5.0

0.7±0.1

φ10

10.0

1.0±0.1

6.5

1.7±0.1

φ12

12.0

1.0±0.1

7.0

1.7±0.1

φ15

15.0

1.0±0.1

9.0

1.7±0.1

φ18

18.0

1.0±0.1

11.0

1.7±0.1

φ20

20.0

1.0±0.1

13.0

1.7±0.1

φ25

25.0

1.0±0.1

15.0

1.7±0.1

φ30

30.0

1.0±0.1

18.0

1.7±0.1

φ35

35.0

1.0±0.1

20.0

1.7±0.1

φ40

38.0

1.0±0.1

25.0

1.7±0.1

φ50

47.0

1.0±0.1

30.0

1.7±0.1

φ60

57.0

1.5±0.1

38.0

2.5±0.1

φ70

67.0

1.5±0.1

45.0

2.5±0.1

φ80

77.0

1.5±0.1

48.0

2.5±0.1

φ90

87.0

1.5±0.1

52.0

2.5±0.1

φ100

97.0

1.5±0.1

57.0

2.5±0.1

φ110

107.0

1.5±0.1

63.0

2.5±0.1

Heat shrink soft silicone rubber tube  /flexible tube hose /insulation sleeve

Heat shrink soft silicone rubber tube  /flexible tube hose /insulation sleeve
